Technical Specs

Product SubVariant T2
Axle Rear
Vane Design Solid
Outer diameter[mm] 286
Height [mm] 78.6
Brake Disc Thickness [mm] 16
Minimum Thickness [mm] 14
Centering Diameter [mm] 70
Number of Holes 5
Pitch Circle Ø 120.00

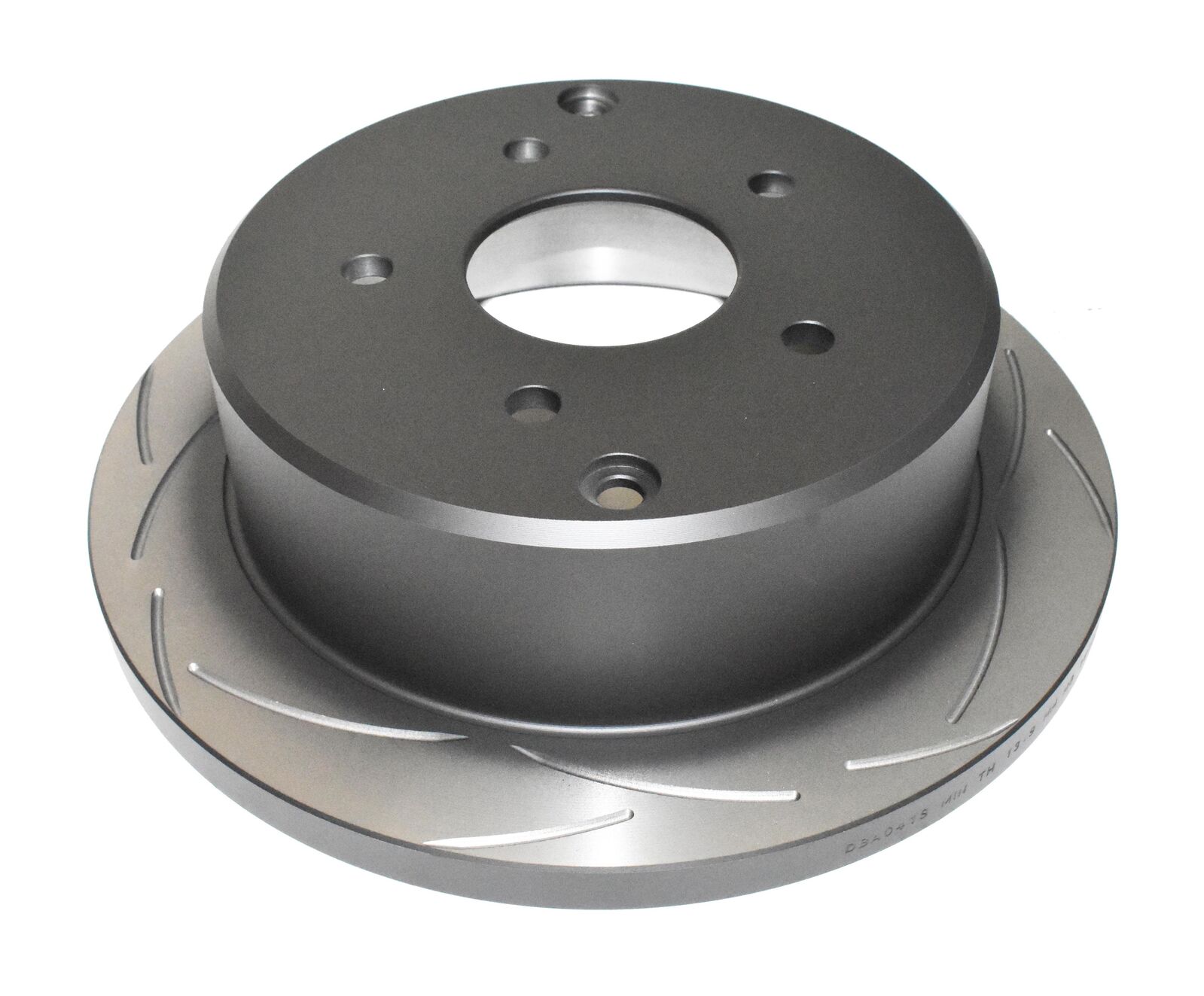

Product Info

STREET SERIES direct replacement rotors are ideal for drivers seeking an OE level performance upgrade.

STREET SERIES rotors are the perfect option for drivers looking for a direct OE replacement disc rotor that is built using the highest quality manufacturing processes, materials and proven safety, thanks to DBAs over 40 years experience in braking.

We recommends STREET SERIES for daily drivers, light commercial and SUV applications.

Features

  1. Surface Design Slots and/or chamfered drill holes facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel.*
  2. Anti Rust Painted non-friction areas to prevent rust and enhance appearance, or full En-shield coating to protect the rotor and alleviate the need for pre-installation cleaning.*
  3. BI-Directional Use Symmetrical slotting and/or drilling for universal left/right use.*
  4. Thermal Efficiency Centre-split core castings for increased heat transfer and thermal efficiency.
  5. CBN CBN (Cubic Boron Nitride) machine turned finish, minimising disc thickness variation and the potential for pad “knock” and resulting premature wear.
  6. Kangaroo Paw Unique Kangaroo Paw vane design for up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life.*

    *Some variants may not contain all features



  • Holden Commodore VT-VZ Standard (2pot/1pot)
SKU DBA041S
Brand DBA
Shipping Weight 10.0000kg
Shipping Width 40.000m
Shipping Height 15.000m
Shipping Length 40.000m
Unit Of Measure ea
