Barbaro Racing KD1023 C-01 rear brake pads for Honda Civic VI / Accord V / Accordv I / Accord IV / Accordvi I / Civici V / CR-V II / Odyssey / Shuttle / EDI X / FR-V / Stream / Cross / Inspire / Stepwgn, Rover 600, Acura Legend, Haval H6. C-01 is Barbaro's premium copper-free low-metallic street compound (550°C, μ 0.40–0.48). Pad shape KD1023: 89 × 47.5 × 14.6 mm; interchanges with FMSI D1086, TRW GDB3154, Brembo P28051N.

Specifications

Barbaro part numberKD1023
CompoundC-01 — Copper-free low-metallic
Barbaro factory code (SKU)D10233UZ
AxleRear

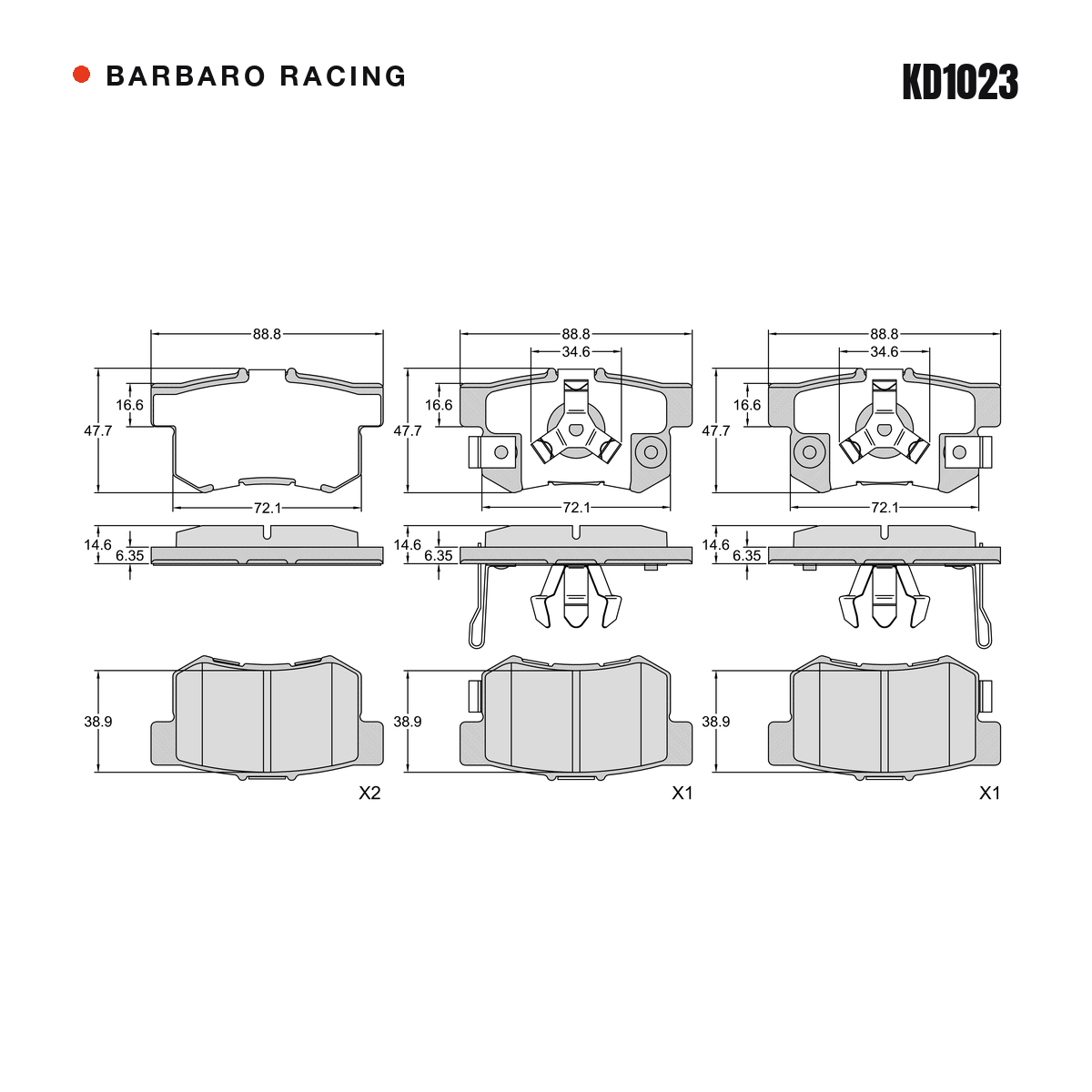

Dimensions (L × H × T)89 × 47.5 × 14.6 mm
Friction material height38.9 mm
Supplied asOne axle set

Vehicle fitment

MakeModelChassisYearsEngine / variantNotes
AcuraLegend1987–19912.0 Turbo, 2.0 (C20A), 2.7 (C27A1)
AcuraLegend II1991–19963.2 (C32A), 3.2 (C32A2)
HavalH62013–1.5 (4G15B)
HondaAccord Euro VIIICL2004–20082.2 i-CTDi, 2.2 diesel (N22A1)Akebono calipers
HondaAccord IVCB, CC1990–19942.0 16V, 2.0 i 16V, 2.2 i 16V, 2.2 i 16V Automatik, CB3, CB7, CB8, CB9, CC1, 2.0 (F20A2) …
HondaAccord IV RuralCB1991–19942.2 i 16V, CB8, CB9, 2.2 (F22A6), 2.2 (F22A7), 2.2 (F22A8)
HondaAccord IX2014–2.4Akebono calipers
HondaAccord VCC, CD, CE, CF1993–19982.0 i, 2.0 i LS 16V, 2.0 i S, 2.2 i ES, 2.3 i SR, CD7, CD9, CE1, CE2, 2.0 (F20B3) …
HondaAccord V RuralCE1993–19982.0 i LS 16V, 2.2 i ES, CE1, CE2, 2.0 (F20B3), 2.2 (F22B5)
HondaAccord VIIICM2002–20082.4 Vtec E, CM5, CM6, 3.0 (J30A4), 2.4 (K24A2), 2.4 (K24A4)
HondaAccordv ICE, CF, CG1995–20031.8 i, 1.9 i, 2.0 i LS, 2.0 TDi, 2.2 i VTEC, CE1, CE7, CE8, CE9, CF1 …
HondaAccordvi ICG, CM, CL1998–20083.0 V6 24V, 3.0 Vtec, CG2, 3.0 (J30A1), 3.0 (J30A2), 2.4 Vtec E, CM5, CM6, 3.0 (J30A4), 2.4 (K24A2) …Akebono calipers
HondaCivic VEJ, EK, MB, MC1995–20011.4 16V, 1.4 i, 1.4 i S, 1.4 LPG, 1.5 16V, 1.5 i, 1.6 16V, 1.8 16V, EJ9, EK3 …
HondaCivic VIEJ, EK, MB, MC, MA1995–20011.4 16V, 1.4 i, 1.4 i S, 1.4 LPG, 1.5 16V, 1.5 i, 1.6 16V, 1.8 16V, EJ9, EK3 …
HondaCivici VMA, MB1995–20011.4 i, 1.5 16V, 1.6 16V, 1.8 16V, MA8, MB2, MB3, MB4, MB6, 1.8 (B18C4) …
HondaCR-V IIRD2001–20062.4 Vtec 4WD, RD7, 2.0 (K20A4), 2.0 (K20A5), 2.4 (K24A1), 2.2 CTDi, 2.2 diesel (N22A2)Akebono calipers
HondaCR-V IIIRE2007–2.0 i 4WD, 2.0 (R20A2)
HondaCross2012–3.5 4WD, 3.5 (J35Z2), 2.4 (K24Y2)Akebono calipers
HondaEDI XBE2004–20061.7 Vtec 4x4, 2.0 4x4, 1.7 (D17A2), 2.0 (K20A9)
HondaElement2002–20112.4 Vtec, 2.4 (K24A6)
HondaFIT IIGD2002–20081.3 (L13A1), 1.5 (L15A)
HondaFR-VBE2004–20061.7 Vtec 4x4, 2.0 4x4, 1.7 (D17A2), 2.0 (K20A9)
HondaInspire1998–20032.5 GX, 2.5 (J25A), 3.2 (J32A)
HondaIntegraDC2, DC41993–19991.8 VTiR, 1.8 (B18C2)
HondaJazz IIGD2002–20081.3 (L13A1), 1.5 (L15A)
HondaLegend IIKA7, KA81991–19963.2 i 24V, 3.2 (C32A2)
HondaLegend IIIKA91996–3.5 i 24V, 3.5 (C35A2)
HondaOdysseyRA, RB1994–20042.2 16V, 2.2 4x4, 2.3 16V, 2.3 16V 4x4, 2.3 4x4, 3.0 4x4, 2.2 (F22B8), 2.2 (F22B9), 2.3 (F23A), 2.3 (F23A7) …
HondaShuttleRA1994–20042.2 16V, 2.2 4x4, 2.3 16V, 2.3 16V 4x4, 3.0 4x4, 2.2 (F22B8), 2.2 (F22B9), 2.3 (F23A), 2.3 (F23A7), 3.0 (J30A)
HondaStepwgnLA-RF, UA-RF2000–20052.0 4WD, 2.0 (K20A9), 2.4 (K24A3)
HondaStreamRN2001–1.7 16V, 2.0 16V, 1.7 (D17A2), 2.0 (K20A1)
HondaAccord VI (China · GAC Honda)1999–20072.0 Vtec, 2.3 Vtec, 2.0 (F20B2), 2.3 (F23A3), 2.3 (F23Z4), 2.3 (F23Z5), 2.0 (K20A7)
HondaCR-V (China · Dongfeng Honda)2004–20122.0 (K20A4), 3rd generation, 2.4L
HondaElysion (China · Dongfeng Honda)RR82015–2.4L
HondaJade (China · Dongfeng Honda)FR2012–1.5T(210T), 1.8L
HondaOdyssey (China · GAC Honda)RC2002–2.0L hybrid, 2.4L, 2.3 (F23B)
HondaSpirior (China · Dongfeng Honda)2nd gen2014–2.0L
Rover600RH1993–1999620 i, 620 Sdi, 620 Ti Vitesse, 623 Si, 2.0 diesel (20T2N), 2.0 (20T4G), 2.0 (F20Z2), 2.3 (H23A3)

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSID1086, D1086-7418, D536-7418
TRWGDB3154, GDB3269, GDB3438
BremboP28051N, P28039, P28022, P28051
PAGIDT3017, T1263, T1521
FerodoFSL956, FDB956, FDB1679-D, TAR956, FSL1679, FDB1679, FDB956-D, FDB4227
Textar2171904, 2365204, 2171901, 2365201, 2423105, 2365214805, 2423101, TX0761
MintexMDB1564, MDB1866, MDK0054, MDB2710, MDB82710
Bosch0986AB2206, 0986AB2663, 0986505957, 0986461142, F03B150016, 0986424771, F03B150018, 0986TB2179, 0986AB2675, 0986TB2637, 0986461006, F026000114, 0986TB2181, 0986TB2182 …
ATE13046057112, 13.0460-5929.2
DelphiLP1507, LP948, LP1972
Bendix572138B, DB1230, 573375B, 572544B, DB1728
Jurid572138J, 573375J, 572544J
Hella Pagid8DB355009581, 8DB355016451, 8DB355012061, 8DB355024351
AkebonoACT1086
NisshinboPF8255
MK KashiyamaD5056M, D5066M
Icer181187, 180798, 181718
Remsa325.12, 032532, 032512, 32502, 32532, 325.52, 032552, 032504, 32504
WVA24231, 24232, 24233
OE Acura43022SP0E01, 43022SN7E50
OE Honda43022S7S010, 43022SX0A50, 43022SZ3A01, 43022SP0E01, 06430S0KJ01, 06430S2XJ00, 43022SX0A51, 06430S7AJ00, 06430S7S000, 43022S9AA00, 43022SCVA00, 43022SM4G00, 43022SN7000, 43022SP0000 …
OE NissanAY060HN005

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the C-01 compound

C-01 · Premium street performance

Premium copper-free low-metallic formula — asbestos-free, developed for noise, heat resistance and braking performance. Excellent in both braking and refinement, meeting EU and US environmental standards.

  • Temperature rating: 550°C
  • Friction: μ 0.40–0.48
  • Formula: Copper-free low-metallic
  • Standard: EU & US environmental standards
  • Best-in-class noise performance (9/10)
  • Exceptional brake linearity (9/10)
  • Copper-free & asbestos-free formula
  • Ideal for: City + highway driving; coupes, sport sedans and city SUVs

C-01 full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.

  • Bendix DB1728 All
  • Honda Inspire 2.5 GX, 2.5, 3.2 (1998-2003)
  • Honda Integra (DC2, DC4) 1.8 VTiR, 1.8 (1993-1999)
  • Honda Jazz II (GD) 1.3, 1.5 (2002-2008)
  • Honda Legend II (KA7, KA8) 3.2 i 24V, 3.2 (1991-1996)
  • Honda Legend III (KA9) 3.5 i 24V, 3.5 (1996-)
  • Honda Odyssey (RA, RB) 2.2 / 2.3 / 3.0 (1994-2004)
  • Honda Shuttle (RA) 2.2 / 2.3 / 3.0 (1994-2004)
  • Honda Stepwgn (LA-RF, UA-RF) 2.0 4WD, 2.0, 2.4 (2000-2005)
  • Honda Stream (RN) 1.7 16V, 2.0 16V, 1.7, 2.0 (2001-)
  • Bendix DB1230 All
  • Honda FR-V (BE) 1.7 Vtec 4x4, 2.0 4x4, 1.7, 2.0 (2004-2006)
  • Ferodo FDB1679 All
  • Ferodo FDB4227 All
  • Ferodo FDB956 All
  • Mintex MDB1564 All
  • Mintex MDB1866 All
  • Mintex MDB2710 All
  • Mintex MDB82710 All
  • Pagid T1263 All
  • Pagid T1521 All
  • Pagid T3017 All
  • Honda Fit II (GD) 1.3, 1.5 (2002-2008)
  • GWM Haval H6 1.5 (2013-)
  • Honda Accord Euro VIII (CL) 2.2 i-CTDi, 2.2 diesel (2004-2008)
  • Honda Accord IV (CB, CC) 2.0 / 2.2 (1990-1994)
  • Honda Accord IV Rural (CB) 2.2 i 16V, 2.2 (1991-1994)
  • Honda Accord IX 2.4 (2014-)
  • Honda Accord V (CC, CD, CE, CF) (1993-1998)
  • Honda Accord V Rural (CE) 2.0 i LS 16V, 2.2 i ES, 2.0, 2.2 (1993-1998)
  • Honda Accord VI (CE, CF, CG) (1995-2003)
  • Honda Accord VII (CG, CM, CL) 2.2 / 2.4 / 3.0, diesel (1998-2008)
  • Honda Accord VIII (CM) 2.4 Vtec E, 3.0, 2.4 (2002-2008)
  • Honda Civic IV (MA, MB) 1.4 / 1.5 / 1.6 / 1.8 (1995-2001)
  • Honda Civic V (EJ, EK, MB, MC) 1.4 / 1.5 / 1.6 / 1.8 (1995-2001)
  • Honda Civic VI (EJ, EK, MB, MC, MA) 1.4 / 1.5 / 1.6 / 1.8 (1995-2001)
  • Honda CR-V II (RD) 2.0 / 2.2 / 2.4, diesel (2001-2006)
  • Honda CR-V III (RE) 2.0 i 4WD, 2.0 (2007-)
  • Honda Cross 3.5 4WD, 3.5, 2.4 (2012-)
  • Honda Edix (BE) 1.7 Vtec 4x4, 2.0 4x4, 1.7, 2.0 (2004-2006)
  • Honda Element 2.4 Vtec, 2.4 (2002-2011)
SKU D10233UZ
Brand Barbaro Racing
Unit Of Measure EA
