Barbaro Racing KD1030 C-01 rear brake pads for Honda Odyssey / Stream / Civic VI / Accord V / Civici V / Accordv I / Accord IV / Shuttle / Legend III / EDI X / FR-V / CR-Z, Suzuki SX4 / Swift III, Fiat Sedic I, Rover 600, Acura Legend, Haval H6. C-01 is Barbaro's premium copper-free low-metallic street compound (550°C, μ 0.40–0.48). Pad shape KD1030: 88.8 × 47.7 × 14.5 mm; interchanges with FMSI D536, TRW GDB3447, Brembo P79027N.

Specifications

Barbaro part numberKD1030
CompoundC-01 — Copper-free low-metallic
Barbaro factory code (SKU)D10303UZ
AxleRear

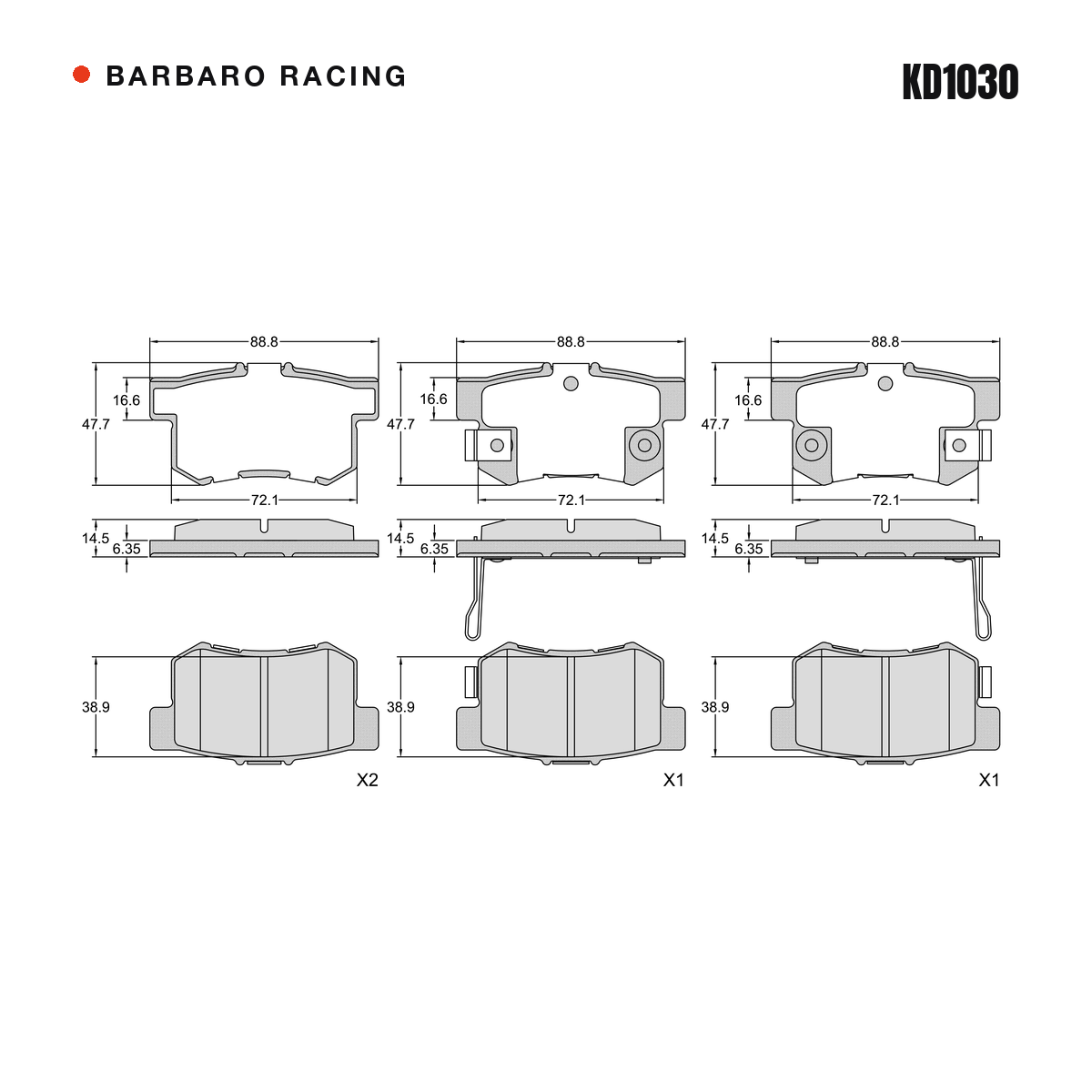

Dimensions (L × H × T)88.8 × 47.7 × 14.5 mm
Friction material height38.9 mm
Supplied asOne axle set
Pad featuresno centre pin

Vehicle fitment

MakeModelChassisYearsEngine / variantNotes
AcuraLegend1987–19912.0 Turbo, 2.0 (C20A), 2.7 (C27A1)
AcuraLegend II1991–19963.2 (C32A), 3.2 (C32A2)
FiatSedic IFY2006–1.6 16V, 1.6 16V 4x4, 1.9 D Multijet, 1.9 D Multijet 4x4, 2.0 D Multijet, 2.0 D Multijet 4x4, 1.9 diesel (D19AA), 2.0 diesel (D20AA), 1.6 (M16A)Akebono calipers
HavalH62013–1.5 (4G15B)
HondaAccord IVCB, CC1990–19942.0 16V, 2.0 i 16V, 2.2 i 16V, 2.2 i 16V Automatik, CB3, CB7, CB8, CB9, CC1, 2.0 (F20A2) …
HondaAccord IV RuralCB1991–19942.2 i 16V, CB8, CB9, 2.2 (F22A6), 2.2 (F22A7), 2.2 (F22A8)
HondaAccord VCC, CD, CE, CF1993–19982.0 i, 2.0 i LS 16V, 2.0 i S, 2.2 i ES, 2.3 i SR, CD7, CD9, CE1, CE2, 2.0 (F20B3) …
HondaAccord V RuralCE1993–19982.0 i LS 16V, 2.2 i ES, CE1, CE2, 2.0 (F20B3), 2.2 (F22B5)
HondaAccord VIICM, CG1998–2008CM1, 2.0 (K20A6), 3.0 V6 24V, 3.0 Vtec, CG2, 3.0 (J30A1), 3.0 (J30A2), 2.4 Vtec E, CM5, CM6 …
HondaAccord VIIICM2002–20082.4 Vtec E, CM5, CM6, 3.0 (J30A4), 2.4 (K24A2), 2.4 (K24A4)
HondaAccordv ICE, CF, CG1995–20031.8 i, 1.9 i, 2.0 i LS, 2.0 TDi, 2.2 i VTEC, CE1, CE7, CE8, CE9, CF1 …
HondaBallade VIIIFD, FA2007–20102.0 i-VTEC Type R, 2.0Akebono calipers
HondaCivic VEJ, EK, MB, MC1995–20011.4 16V, 1.4 i, 1.4 i S, 1.4 LPG, 1.5 16V, 1.5 i, 1.6 16V, 1.8 16V, EJ9, EK3 …
HondaCivic VIEJ, EK, MB, MC, MA1995–20011.4 16V, 1.4 i, 1.4 i S, 1.4 LPG, 1.5 16V, 1.5 i, 1.6 16V, 1.8 16V, EJ9, EK3 …
HondaCivic VIIIFD, FA2007–20102.0 i-VTEC Type R, 2.0Akebono calipers
HondaCivici VMA, MB1995–20011.4 i, 1.5 16V, 1.6 16V, 1.8 16V, MA8, MB2, MB3, MB4, MB6, 1.8 (B18C4) …
HondaCR-ZZF12010–1.5 Hybrid, 1.5 hybrid (LEA1), 1.5 hybrid (LEA3)
HondaEDI XBE2004–20061.7 Vtec 4x4, 2.0 4x4, 1.7 (D17A2), 2.0 (K20A9)
HondaElement2002–20112.4 Vtec, 2.4 (K24A6)
HondaFIT IIGD2002–20081.3 (L13A1), 1.5 (L15A)
HondaFR-VBE2004–20061.7 Vtec 4x4, 2.0 4x4, 1.7 (D17A2), 2.0 (K20A9)
HondaInsightZE2009–1.3 Hybrid, 1.3 hybrid (LDA3)
HondaInspire1998–20032.5 GX, 2.5 (J25A), 3.2 (J32A)
HondaIntegraDC2, DC41993–19991.8 VTiR, 1.8 (B18C2)
HondaJazz IIGD2002–20081.3 (L13A1), 1.5 (L15A)
HondaLegend IIKA7, KA81991–19963.2 i 24V, 3.2 (C32A2)
HondaLegend IIIKA91996–3.5 i 24V, 3.5 (C35A2), 3.5 (C35A8)
HondaLegend IVKB2006–3.5 V6 4WD, 3.5 (C35A8), 3.5 (J35A8)
HondaOdysseyRA, RB1994–20042.2 16V, 2.2 4x4, 2.3 16V, 2.3 16V 4x4, 2.3 4x4, 3.0 4x4, 2.2 (F22B8), 2.2 (F22B9), 2.3 (F23A), 2.3 (F23A7) …
HondaShuttleRA1994–20042.2 16V, 2.2 4x4, 2.3 16V, 2.3 16V 4x4, 3.0 4x4, 2.2 (F22B8), 2.2 (F22B9), 2.3 (F23A), 2.3 (F23A7), 3.0 (J30A)
HondaStepwgnLA-RF, UA-RF2000–20052.0 4WD, 2.0 (K20A9), 2.4 (K24A3)
HondaStreamRN32001–20062.0L
HondaAccord VI (China · GAC Honda)1999–20072.0 Vtec, 2.3 Vtec, 2.0 (F20B2), 2.3 (F23A3), 2.3 (F23Z4), 2.3 (F23Z5), 2.0 (K20A7)
HondaCR-V (China · Dongfeng Honda)RD2004–20072.0 (K20A4)
HondaOdyssey (China · GAC Honda)RA62002–20052.3L
Rover600RH1993–1999620 i, 620 Sdi, 620 Ti Vitesse, 623 Si, 2.0 diesel (20T2N), 2.0 (20T4G), 2.0 (F20Z2), 2.3 (H23A3)
SuzukiSwift IIIMZ, EZ2006–1.6 (M16A)
SuzukiSX4EY, GY2006–1.5 VVT, 1.5 VVT 4x4, 1.6 AWD, 1.6 DDIS, 1.6 VVT, 1.6 VVT 4x4, 1.9 DDiS, 1.9 DDiS 4x4, 2.0 4x4, 2.0 DDiS …Akebono calipers

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSID536, D365, D1705-7418, D365-7256, D536-7418, D537-7418
TRWGDB3447, GDB3154, GDB1923
BremboP79027N, P28022, P28039, P79027
PAGIDT3017, T1263, T2030
FerodoFDB956, FSL956, FDB1679-D, TAR956, FSL1679, FDB1679, FDB956-D
Textar2171904, 2171901, 2365204, 2365201, 2172001
MintexMDK0054, MDB1564, MDB1866, MDB3134
BoschF03B150018, 0986461006, 0986AB2675, 0986424771, 0986AB2206, 0986AB2663, 0986505957, 0986461142, F03B150016, 0986TB2179, 0986TB2637, F026000114, 0986TB2181
ATE13.0460-5711.2, 13.0460-5929.2
DelphiLP1507, LP948
Bendix572138B, DB1230
Jurid572138J
Hella Pagid8DB355016451, 8DB355009581, 355015611, 8DB355015611
MK KashiyamaD5056M, D5066M
Icer181187, 180798
Remsa32502, 32506, 032506, 32512, 032502, 032532, 032512, 32532
WVA21719, 21720, 25201, 21721, 23652, 23736, 23653
OE Honda43022SEDE60, 43022SZTG01, 43022TM8G01, 43022SZ3E50, 43022SZTG00, 43022TM8G00, 43022S7S010, 43022SX0A50, 43022SZ3A01, 43022SP0E01, 06430S0KJ01, 06430S2XJ00, 43022SX0A51, 06430S7AJ00 …
OE Suzuki5580080J01, 5580080J02, 5580080J02000
OE Acura43022SP0E01, 43022SN7E50
OE NissanAY060HN005

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the C-01 compound

C-01 · Premium street performance

Premium copper-free low-metallic formula — asbestos-free, developed for noise, heat resistance and braking performance. Excellent in both braking and refinement, meeting EU and US environmental standards.

  • Temperature rating: 550°C
  • Friction: μ 0.40–0.48
  • Formula: Copper-free low-metallic
  • Standard: EU & US environmental standards
  • Best-in-class noise performance (9/10)
  • Exceptional brake linearity (9/10)
  • Copper-free & asbestos-free formula
  • Ideal for: City + highway driving; coupes, sport sedans and city SUVs

C-01 full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.

  • Honda Accord VII (CM, CG) 2.0 / 2.4 / 3.0 (1998-2008)
  • Honda Shuttle (RA) 2.2 / 2.3 / 3.0 (1994-2004)
  • Honda Stepwgn (LA-RF, UA-RF) 2.0 4WD, 2.0, 2.4 (2000-2005)
  • Bendix DB1230 All
  • Ferodo FDB1679 All
  • Ferodo FDB956 All
  • Mintex MDB1564 All
  • Mintex MDB1866 All
  • Pagid T1263 All
  • Pagid T3017 All
  • FIAT Sedici (FY) 1.6 / 1.9 / 2.0, diesel (2006-)
  • Honda Odyssey (RA, RB) 2.2 / 2.3 / 3.0 (1994-2004)
  • Honda Ballade VIII (FD, FA) 2.0 i-VTEC Type R, 2.0 (2007-2010)
  • Honda Civic VIII (FD, FA) 2.0 i-VTEC Type R, 2.0 (2007-2010)
  • Honda CR-Z (ZF1) 1.5 Hybrid (2010-)
  • Honda Insight (ZE) 1.3 Hybrid (2009-)
  • Honda Legend IV (KB) 3.5 V6 4WD, 3.5 (2006-)
  • Honda Stream (RN3) 2.0L (2001-2006)
  • Suzuki Swift III (MZ, EZ) 1.6 (2006-)
  • Suzuki SX4 (EY, GY) 1.5 / 1.6 / 1.9 / 2.0, diesel, AWD (2006-)
  • Mintex MDB3134 All
  • Pagid T2030 All
  • Honda Legend III (KA9) 3.5 i 24V, 3.5 (1996-)
  • GWM Haval H6 1.5 (2013-)
  • Honda Accord IV (CB, CC) 2.0 / 2.2 (1990-1994)
  • Honda Accord IV Rural (CB) 2.2 i 16V, 2.2 (1991-1994)
  • Honda Accord V (CC, CD, CE, CF) (1993-1998)
  • Honda Accord V Rural (CE) 2.0 i LS 16V, 2.2 i ES, 2.0, 2.2 (1993-1998)
  • Honda Accord VI (CE, CF, CG) (1995-2003)
  • Honda Accord VIII (CM) 2.4 Vtec E, 3.0, 2.4 (2002-2008)
  • Honda Civic IV (MA, MB) 1.4 / 1.5 / 1.6 / 1.8 (1995-2001)
  • Honda Civic V (EJ, EK, MB, MC) 1.4 / 1.5 / 1.6 / 1.8 (1995-2001)
  • Honda Civic VI (EJ, EK, MB, MC, MA) 1.4 / 1.5 / 1.6 / 1.8 (1995-2001)
  • Honda Edix (BE) 1.7 Vtec 4x4, 2.0 4x4, 1.7, 2.0 (2004-2006)
  • Honda Element 2.4 Vtec, 2.4 (2002-2011)
  • Honda Fit II (GD) 1.3, 1.5 (2002-2008)
  • Honda FR-V (BE) 1.7 Vtec 4x4, 2.0 4x4, 1.7, 2.0 (2004-2006)
  • Honda Inspire 2.5 GX, 2.5, 3.2 (1998-2003)
  • Honda Integra (DC2, DC4) 1.8 VTiR, 1.8 (1993-1999)
  • Honda Jazz II (GD) 1.3, 1.5 (2002-2008)
  • Honda Legend II (KA7, KA8) 3.2 i 24V, 3.2 (1991-1996)
SKU D10303UZ
Brand Barbaro Racing
Unit Of Measure EA
