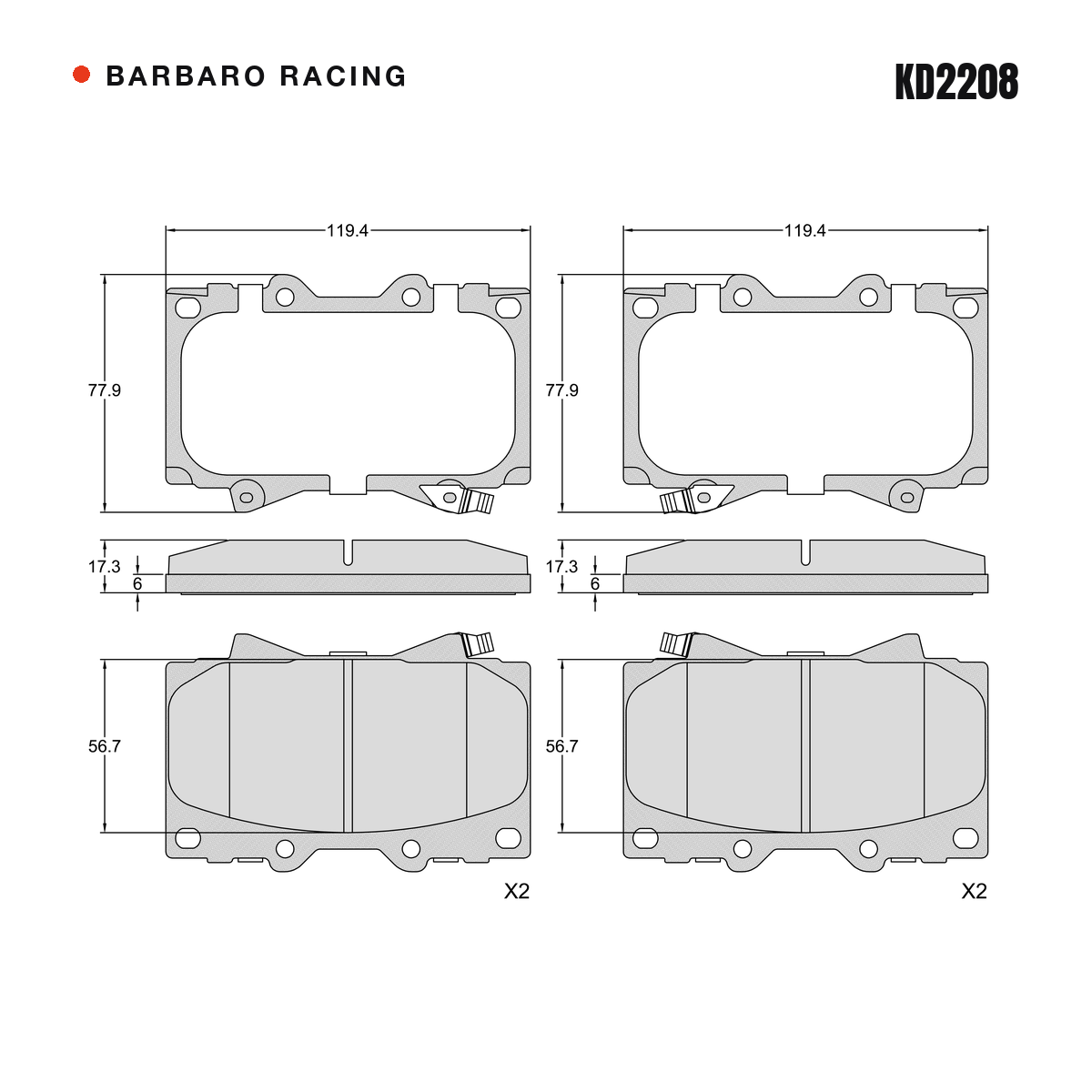

Barbaro Racing KD2208 C-01 front brake pads for Toyota Land Cruiser / Prado, Lexus LX, Fuqi , Baw Luba. C-01 is Barbaro's premium copper-free low-metallic street compound (550°C, μ 0.40–0.48). Pad shape KD2208: 119.4 × 77.8 × 17.3 mm; interchanges with FMSI D772, TRW GDB3197, Brembo P83048N.

Specifications

Barbaro part numberKD2208
CompoundC-01 — Copper-free low-metallic
Barbaro factory code (SKU)D22083UZ
AxleFront
Dimensions (L × H × T)119.4 × 77.8 × 17.3 mm
Friction material height56.7 mm
Supplied asOne axle set
Also available for KD2208KD2208 S-01 Street & Track

Vehicle fitment

MakeModelChassisYearsEngine / variantNotes
BawLuba2003–2.4 (2RZ-FE), 2.4 (LJ486QE1), 3.4 (5VZ-FE), 3.0 (VG30S)
Fuqi"Yuhu"2004–20102.4L
LexusLXJ100, UZJ1001998–2008470, 4.7 (2UZ-FE)Sumitomo calipers
ToyotaLand CruiserJ100, J70, J7, PZJ7, KZJ7, HZJ7, BJ7, LJ71984–4.2L diesel, 4.7L, 2.4L, 4.2D diesel, 4.5D diesel, 4.0 TD 4x4, 4.2 TD, 4.2 TD 24V 4x4, 4.2 TD 4x4, 4.5 MPFi 4x4 …Sumitomo calipers
ToyotaLand Cruiser - BunderaPZJ7, KZJ7, HZJ7, BJ7, LJ7, RJ71990–4.0 TD 4x4, 4.2 TD, 4.2 TD 24V 4x4, 4.5 TD 24V 4x4, HDJ78, HZJ7V, VDJ76, VDJ78, 4.0 diesel (12HT), 4.2 diesel (1HD-FT) …Sumitomo calipers
ToyotaLand Cruiser 100FZJ1, UZJ11998–20074.2 D, 4.2 TD, 4.5 i, FZJ105, HDJ100, HZJ105, UZJ100, 4.5 (1FZ-FE), 4.2 diesel (1HD-FTE), 4.2 diesel (1H-Z) …Sumitomo calipers
ToyotaLand Cruiser 90J92002–4.7 (2UZ-FE)Sumitomo calipers
ToyotaLand Cruiser AmazonFZJ1, UZJ11998–20074.2 D, 4.2 TD, 4.5 i, FZJ105, HDJ100, HZJ105, UZJ100, 4.5 (1FZ-FE), 4.2 diesel (1HD-FTE), 4.2 diesel (1H-Z) …Sumitomo calipers
ToyotaLand Cruiser CygnusFZJ1, UZJ11998–20074.2 D, 4.2 TD, 4.5 i, FZJ105, HDJ100, HZJ105, UZJ100, 4.5 (1FZ-FE), 4.2 diesel (1HD-FTE), 4.2 diesel (1H-Z) …Sumitomo calipers
ToyotaLand Cruiser PradoJ92002–4.7 (2UZ-FE)Sumitomo calipers
ToyotaPradoFZJ1, UZJ11998–20074.2 D, 4.2 TD, 4.5 i, FZJ105, HDJ100, HZJ105, UZJ100, 4.5 (1FZ-FE), 4.2 diesel (1HD-FTE), 4.2 diesel (1H-Z) …Sumitomo calipers
ToyotaLand Cruiser (China · FAW Toyota)J1002002–20084.5L, 4.7L
ToyotaLand Cruiser 100 (China · FAW Toyota)2003–20074.5 (1FZ-FE), 4.7 (2UZ-FE)

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSID772, D772-7639, D812-7687
TRWGDB3197, GDB3280
BremboP83048N, P83048, P83108
PAGIDT1878, T1241
FerodoFSL1456, FDB1456
Textar2481301, 2352407, 2352402, 2352417705, TX0582
MintexMDB2031, MDB1906, MDB81906
Bosch0986AB3839, 0986AB2379, 0986AB3841, F03B150055, 0986424640, 0986TB2348, 0986AB2125, 0986505670, 986424640, BP357
ATE13046057462, 605746
DelphiLP1308
Bendix572451B, 572528B, DB1365
Jurid572528J
Hella Pagid8DB355009371, 355024081, 8DB355024081
AkebonoACT772, ISD772, AN-498WK
NisshinboPF1411
MK KashiyamaD2177M, D2177
Icer181723
Remsa70704, 42904, 070704
WVA23524, 23525, 24814, 24813
OE Lexus0446560230, 044650C011, 044650C012, 0446560120, 0446560150, 0446560151, 0446560190, 0446560220
OE Toyota0446560250, 044650C011, 044650C012, 0446560150, 0446560151, 0446560220, 446560160, 04465YZZCM, 0449160150, 0446560190, 0446560120, 0446560140, 0446560160, 0446560170 …

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the C-01 compound

C-01 · Premium street performance

Premium copper-free low-metallic formula — asbestos-free, developed for noise, heat resistance and braking performance. Excellent in both braking and refinement, meeting EU and US environmental standards.

  • Temperature rating: 550°C
  • Friction: μ 0.40–0.48
  • Formula: Copper-free low-metallic
  • Standard: EU & US environmental standards
  • Best-in-class noise performance (9/10)
  • Exceptional brake linearity (9/10)
  • Copper-free & asbestos-free formula
  • Ideal for: City + highway driving; coupes, sport sedans and city SUVs

C-01 full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.

  • Toyota Land Cruiser Cygnus (FZJ1, UZJ1) 4.2 / 4.5 / 4.7, diesel (1998-2007)
  • Pagid T1878 All
  • Pagid T1241 All
  • Mintex MDB81906 All
  • Mintex MDB2031 All
  • Mintex MDB1906 All
  • Ferodo FDB1456 All
  • Toyota Prado (FZJ1, UZJ1) 4.2 / 4.5 / 4.7, diesel (1998-2007)
  • Toyota Land Cruiser Prado (J9) 4.7 (2002-)
  • Toyota Land Cruiser Amazon (FZJ1, UZJ1) 4.2 / 4.5 / 4.7, diesel (1998-2007)
  • Toyota Land Cruiser 90 (J9) 4.7 (2002-)
  • Toyota Land Cruiser 100 (FZJ1, UZJ1) 4.2 / 4.5 / 4.7, diesel (1998-2007)
  • Toyota Land Cruiser - Bundera (PZJ7, KZJ7, HZJ7, BJ7) 4.0 / 4.2 / 4.5, diesel (1990-)
  • Toyota Land Cruiser (J100, J70, J7, PZJ7) 4.0 / 4.2 / 4.5, diesel (1984-)
  • Lexus LX (J100, UZJ100) 470, 4.7 (1998-2008)
  • Bendix DB1365 All
SKU D22083UZ
Brand Barbaro Racing
Unit Of Measure EA
