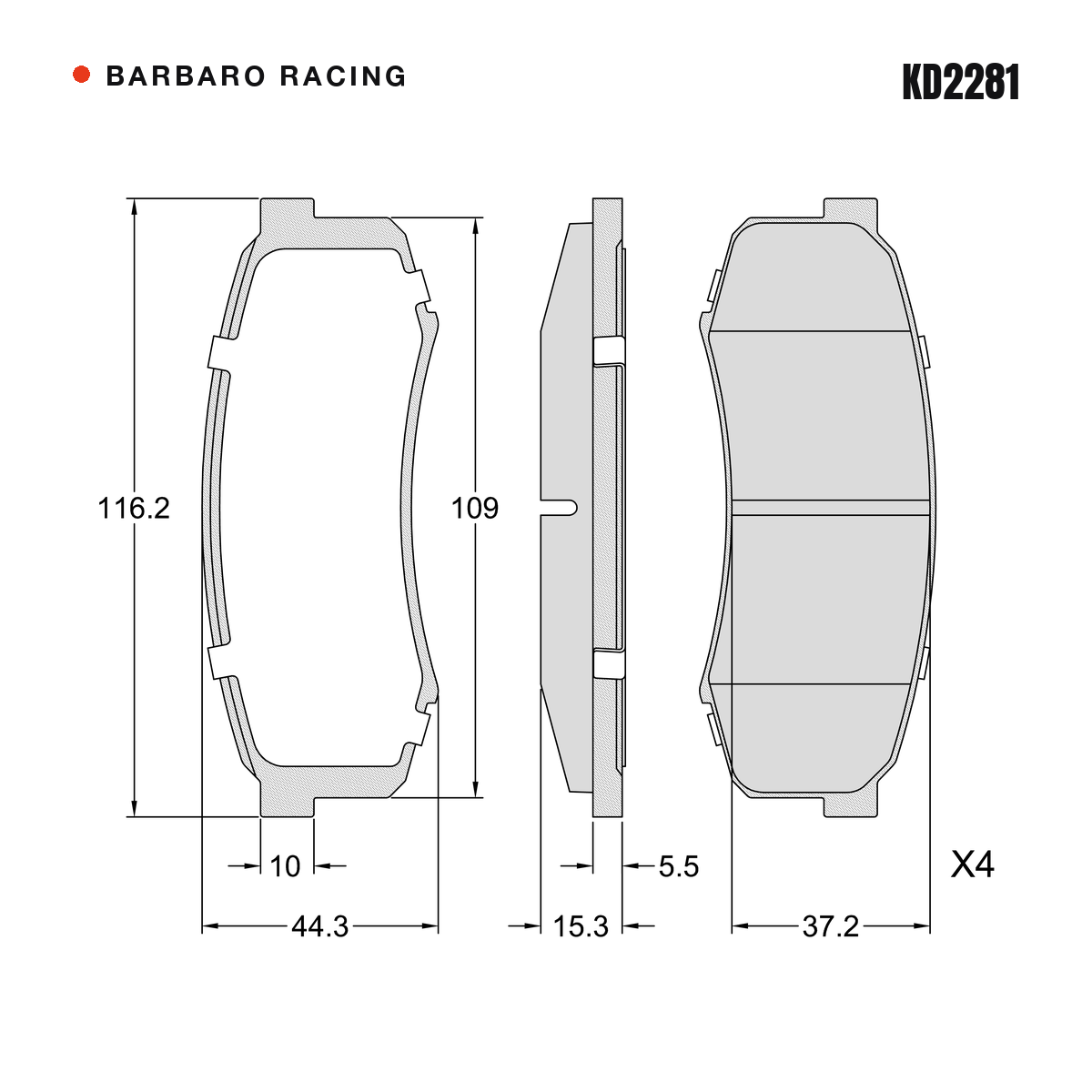

Barbaro Racing KD2281 C-01 rear brake pads for Toyota Land Cruiser / 4Runner / FJ Cruiser / Sequoia / Hilu X, Lexus GX / RX, Mitsubishi Pajero / Montero IV / Pajeroshogun IV / Shogun IV, Baw Luba / Yusheng 007 BW 007, Faw Jilin Jiabao AV6. C-01 is Barbaro's premium copper-free low-metallic street compound (550°C, μ 0.40–0.48). Pad shape KD2281: 116.2 × 44.2 × 15.3 mm; interchanges with FMSI D606, TRW GDB1182, Brembo P83024N.

Specifications

Barbaro part numberKD2281
CompoundC-01 — Copper-free low-metallic
Barbaro factory code (SKU)D22813UZ
AxleRear
Dimensions (L × H × T)116.2 × 44.2 × 15.3 mm
Friction material height37.2 mm
Supplied asOne axle set
Also available for KD2281KD2281 C-05, KD2281 S-01 Street & Track

Vehicle fitment

MakeModelChassisYearsEngine / variantNotes
BawLuba2003–2.4 (2RZ-FE), 2.4 (LJ486QE1), 3.4 (5VZ-FE), 3.0 (VG30S)
BawYusheng 007 BW 0072011–2.0 (4G20D4), 2.4 (G4CA)
Faw JilinJiabao AV62004–1.0 (LJ465QE1)
LexusGXJ150, J120, J12, URJ152001–4.0L, 460, 470, 4.6 (1UR-FE), 4.7 (2UZ-FE)Sumitomo calipers
LexusRXMCU152000–2003300 AWD, 3.0 (1MZ-FE)
MitsubishiMonteroV90, V80, V8V2006–3.2 DI-D, 3.2 TD 4WD, 3.2 diesel (4M41)Sumitomo calipers
MitsubishiMontero ClassicV2W2006–3.8 (6G75)Sumitomo calipers
MitsubishiMontero IVV8W, V9W2007–3.0 4WD, 3.2 DI-D, 3.2 DI-D 4WD, 3.8 V6, V87W, V97W, V88W, V98W, 3.2 diesel (4M41), 3.0 (6G72(SOHC24V)) …Sumitomo calipers
MitsubishiPajeroV972006–3.8L
MitsubishiPajero ClassicV2W2006–3.8 (6G75)Sumitomo calipers
MitsubishiPajero Full IVV8W, V9W2007–3.0 4WD, 3.2 DI-D, 3.2 DI-D 4WD, 3.8 V6, V87W, V97W, V88W, V98W, 3.2 diesel (4M41), 3.0 (6G72(SOHC24V)) …Sumitomo calipers
MitsubishiPajero IVV8W, V9W, NS, NT, NW, NX, V90, V802006–3.0 4WD, 3.2 DI-D, 3.2 DI-D 4WD, 3.2 TD 4WD, 3.8 V6, V87W, V97W, V88W, V98W, 3.2 diesel (4M41) …Sumitomo calipers
MitsubishiPajeroshogunV90, V80, V8V2006–3.2 DI-D, 3.2 TD 4WD, 3.2 diesel (4M41)Sumitomo calipers
MitsubishiPajeroshogun ClassicV2W2006–3.8 (6G75)Sumitomo calipers
MitsubishiPajeroshogun IVV8W, V9W2007–3.0 4WD, 3.2 DI-D, 3.2 DI-D 4WD, 3.8 V6, V87W, V97W, V88W, V98W, 3.2 diesel (4M41), 3.0 (6G72(SOHC24V)) …Sumitomo calipers
MitsubishiShogun IVV8W, V9W2007–3.0 4WD, 3.2 DI-D, 3.2 DI-D 4WD, 3.8 V6, V87W, V97W, V88W, V98W, 3.2 diesel (4M41), 3.0 (6G72(SOHC24V)) …Sumitomo calipers
MitsubishiPajero V77 (China · GAC Mitsubishi)2004–20113.8L
Toyota4RunnerN210, N280, KZN18, VZN18, RZN18, UZN21, KZN21, GRN212002–3.0TDI diesel, 2.7L, 4.0 4WD, 4.0 VVTi, 4.0 (1GR-FE)Sumitomo calipers
ToyotaFJ CruiserGSJ12006–4.0 i V6, 4.0 i V6 4WD, 4.0 VVTi, 4.0 VVTi 4WD, 4.0 (1GR-FE)Sumitomo calipers
ToyotaHilu XRZN1, LN1, VIGO III KUN, TGN, LAN, GGN1995–2.4 TD 4WD, 2.7 4WD, 3.0 D, 3.0 D 4WD, 3.4 4WD, 4.0 4WD, KUN16, KUN26, 4.0 (1GR-FE), 3.0 diesel (1KD-FTV) …Sumitomo calipers
ToyotaHilu X IILN8, RN5, LN6, YN6, YN5, LN5, RN62001–20053.4 4WD, 3.4 (5VZ-FE), 3.0 (3VZ-E)Sumitomo calipers
ToyotaHilu X IIIKUN, TGN, LAN, GGN2005–2.7 4WD, 3.0 D, 3.0 D 4WD, 4.0 4WD, KUN16, KUN26, 4.0 (1GR-FE), 3.0 diesel (1KD-FTV), 2.7 (2TR-FE)Sumitomo calipers
ToyotaLand CruiserJ100, J70, J7, J8, LJ12, KZJ12, TRJ12, KDJ121984–4.2L diesel, 2.4 TD, 3.0 D, 3.0 D-4D, 4.0 V6 WTi, 4.2 D, 4.2 TD, 4.2 TD 24V, 4.2 TD 4x4, 4.5 24V …Sumitomo calipers
ToyotaLand Cruiser - BunderaPZJ7, KZJ7, HZJ7, BJ7, LJ7, RJ71984–2.4 TD, 4.5 TD 24V 4x4, LJ70, RJ70V, RJ73V, VDJ76, VDJ78, 4.5 diesel (1VD-FTV), 2.4 (22RE), 2.4 diesel (2L-T) …Sumitomo calipers
ToyotaLand Cruiser 150KDJ15, GRJ152010–2.8 D-4D, 3.0 D-4D, 4.0 V6 Dual VVTi, 4.0 V6 VVT-i, 4.0 V6 VVTi, 2.8 diesel (1GD-FTV), 4.0 (1GR-FE), 3.0 diesel (1KD-FTV), 2.7 (2TR-FE)Sumitomo calipers
ToyotaLand Cruiser 80J81990–19984.2 D, 4.2 TD, 4.2 TD 24V, 4.5 24V, FJ80, FZJ80, HDJ80, HZJ80, 4.5 (1FZ-FE), 4.2 diesel (1HD-FT) …Sumitomo calipers
ToyotaLand Cruiser 90J91995–3.0 D-4D, 3.0 TD, 3.4 i 24V, KDJ90, KDJ95, KDJ 125, KZJ90, KZJ95, VZJ90, VZJ95 …Sumitomo calipers
ToyotaLand Cruiser HardtopJ71990–19964.2 D, 4.2 diesel (1H-Z), 2.4 TD, 3.0 TD, LJ77, 3.0 diesel (1KZ-T), 2.4 diesel (2L-T)Sumitomo calipers
ToyotaLand Cruiser PradoJ120, J150, J9, KDJ15, GRJ15, LJ12, KZJ12, TRJ121995–2.8TDI diesel, 3.0TDI diesel, 2.8 D-4D, 3.0 D, 3.0 D-4D, 3.0 TD, 3.4 i 24V, 4.0 V6 Dual VVTi, 4.0 V6 VVT-i, 4.0 V6 VVTi …Sumitomo calipers
ToyotaSequoiaKX30, XK402000–20074.7L
ToyotaSW4RZN1, LN11995–20042.4 TD 4WD, 3.0 D, 3.4 4WD, 2.4 diesel (2L-T), 2.7 (3RZ-FE), 3.0 diesel (5L), 3.0 diesel (5L-E), 3.4 (5VZ-FE)Sumitomo calipers
ToyotaTacoma IILN8, RN5, LN6, YN6, YN5, LN5, RN62001–20053.4 4WD, 3.4 (5VZ-FE), 3.0 (3VZ-E)Sumitomo calipers
ToyotaLand Cruiser Prado (China · FAW Toyota)J120, J150, J152003–4.0L, 3.5L, 2.7 (2TR-FE)
ToyotaPrado (China · FAW Toyota)2003–20104.0 (1GR-FE)Sumitomo calipers

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSID606, D606-7487
TRWGDB1182, GDB3110, GDB3464
BremboP83024N, P83024
PAGIDT3064
FerodoFDB1021, FSL1021, FDB1021-D, TAR1021
Textar2194703, 2194701, TX0074, 2194715004
MintexMDB81696, MDB1696
BoschBP152, 986424313, 0986424313, 0986TB3051, F03B150055, 0986AB2028, 0986424640, 0986505905, 0986AB4150, 0986AB3840, F03B150032, 0986AB2074
ATE13046057442, 605744
DelphiLP963
BendixDB1200, 572245B, 572528B
Jurid572245J, 572528J
Hella Pagid355024591, 8DB355016831, 8DB355024591
AkebonoAN337K, ACT773, ACT606
NisshinboPF1243
MK KashiyamaD2090
Icer141027
Remsa41304, 041300, 041304, 041310, 413.00, 41310
WVA21947
OE Mitsubishi4605A458, 4605A389
OE Toyota0446660050, 0446660080, 0446660090, 0449260010, 0449260020, 04466YZZC8, 0446660020, 572245, 0446660140, 0446660010, 0446660060, 0446560010, 0446660040
OE Lexus0446660080, 0446660090

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the C-01 compound

C-01 · Premium street performance

Premium copper-free low-metallic formula — asbestos-free, developed for noise, heat resistance and braking performance. Excellent in both braking and refinement, meeting EU and US environmental standards.

  • Temperature rating: 550°C
  • Friction: μ 0.40–0.48
  • Formula: Copper-free low-metallic
  • Standard: EU & US environmental standards
  • Best-in-class noise performance (9/10)
  • Exceptional brake linearity (9/10)
  • Copper-free & asbestos-free formula
  • Ideal for: City + highway driving; coupes, sport sedans and city SUVs

C-01 full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.

  • Toyota Land Cruiser Hardtop (J7) 2.4 / 3.0 / 4.2, diesel (1990-1996)
  • Toyota Hilux (RZN1, LN1, VIGO III KUN, TGN) (1995-)
  • Toyota Hilux II (LN8, RN5, LN6, YN6) 3.4 4WD, 3.4, 3.0 (2001-2005)
  • Toyota Hilux III (KUN, TGN, LAN, GGN) 2.7 / 3.0 / 4.0, diesel (2005-)
  • Toyota Land Cruiser (J100, J70, J7, J8) (1984-)
  • Toyota Land Cruiser - Bundera (PZJ7, KZJ7, HZJ7, BJ7) (1984-)
  • Toyota Land Cruiser 150 (KDJ15, GRJ15) 2.7 / 2.8 / 3.0 / 4.0, diesel (2010-)
  • Toyota Land Cruiser 80 (J8) 2.4 / 3.0 / 3.5 / 4.0 / 4.2 / 4.5 (1990-1998)
  • Toyota Land Cruiser 90 (J9) 2.7 / 3.0 / 3.4 / 4.2, diesel (1995-)
  • Toyota FJ Cruiser (GSJ1) 4.0 (2006-)
  • Toyota Land Cruiser Prado (J120, J150, J9, KDJ15) (1995-)
  • Toyota Sequoia (KX30, XK40) 4.7L (2000-2007)
  • Toyota SW4 (RZN1, LN1) 2.4 / 2.7 / 3.0 / 3.4, diesel (1995-2004)
  • Toyota Tacoma II (LN8, RN5, LN6, YN6) 3.4 4WD, 3.4, 3.0 (2001-2005)
  • Ferodo FDB1021 All
  • Mintex MDB1696 All
  • Mintex MDB81696 All
  • Pagid T3064 All
  • Mitsubishi Pajero / Shogun (V90, V80, V8V) 3.2 DI-D, 3.2 TD 4WD, 3.2 diesel (2006-)
  • Bendix DB1200 All
  • Lexus GX (J150, J120, J12, URJ15) 4.0L, 460, 470, 4.6, 4.7 (2001-)
  • Lexus RX (MCU15) 300 AWD, 3.0 (2000-2003)
  • Mitsubishi Montero (V90, V80, V8V) 3.2 DI-D, 3.2 TD 4WD, 3.2 diesel (2006-)
  • Mitsubishi Montero Classic (V2W) 3.8 (2006-)
  • Mitsubishi Montero IV (V8W, V9W) 3.0 / 3.2 / 3.8, diesel (2007-)
  • Mitsubishi Pajero (V97) 3.8L (2006-)
  • Mitsubishi Pajero / Shogun Classic (V2W) 3.8 (2006-)
  • Mitsubishi Pajero / Shogun IV (V8W, V9W) 3.0 / 3.2 / 3.8, diesel (2007-)
  • Mitsubishi Pajero Classic (V2W) 3.8 (2006-)
  • Mitsubishi Pajero Full IV (V8W, V9W) 3.0 / 3.2 / 3.8, diesel (2007-)
  • Mitsubishi Pajero IV (V8W, V9W, NS, NT) 3.0 / 3.2 / 3.8, diesel (2006-)
  • Mitsubishi Shogun IV (V8W, V9W) 3.0 / 3.2 / 3.8, diesel (2007-)
  • Toyota 4Runner (N210, N280, KZN18, VZN18) 4.0, diesel (2002-)
SKU D22813UZ
Brand Barbaro Racing
Unit Of Measure EA
