Barbaro Racing KD2482 S-01 front brake pads for Toyota Land Cruiser Prado / 4Runner / Tacoma / FJ Cruiser / Tundra, JAC T6, Lexus GX, Huanghai N1S / N2 / N3 / N7, Mitsubishi Pajero / Montero IV / Pajeroshogun IV / Shogun IV / Montero Classic. S-01 is Barbaro's semi-metallic street and track-day compound (800°C, μ 0.35–0.50). Pad shape KD2482: 134.7 × 77.1 × 17 mm; interchanges with FMSI D976, TRW GDB3364, Brembo P83066N.

Specifications

Barbaro part numberKD2482
CompoundS-01 — Semi-metallic
Barbaro factory code (SKU)D24820N6
AxleFront
Dimensions (L × H × T)134.7 × 77.1 × 17 mm
Friction material height50.6 mm
Supplied asOne axle set
Also available for KD2482KD2482 C-01 Premium Street

Vehicle fitment

MakeModelChassisYearsEngine / variantNotes
HuanghaiN1S2014–2.4L, 2.4T, 2.5TDI diesel, 2.8TDI diesel
HuanghaiN22014–2.4L, 2.4T, 2.5TDI diesel, 2.8TDI diesel
HuanghaiN2S2015–2.4L
HuanghaiN32017–2.4T, 2.5TDI diesel
HuanghaiN72018–2.4T, 2.5TDI diesel
JAC"Shuailing" T62014–2.0L, 2.0T, 2.0TDI diesel, 2.8TDI diesel, EV
LexusGXJ150, J120, J12, URJ152001–4.0L, 460, 470, 4.6 (1UR-FE), 4.7 (2UZ-FE)Sumitomo calipers
MitsubishiMonteroV90, V80, V8V2006–3.2 DI-D, 3.2 TD 4WD, 3.2 diesel (4M41)Sumitomo calipers
MitsubishiMontero ClassicV2W2006–3.8 (6G75)Sumitomo calipers
MitsubishiMontero IVV8W, V9W2007–3.2 DI-D, 3.2 DI-D 4WD, 3.8 i 4WD, 3.8 V6, V87W, V97W, V88W, V98W, 3.2 diesel (4M41), 3.8 (6G75) …Sumitomo calipers
MitsubishiPajeroV972006–3.8L
MitsubishiPajero ClassicV2W2006–3.8 (6G75)Sumitomo calipers
MitsubishiPajero Full IVV8W, V9W2007–3.2 DI-D, 3.2 DI-D 4WD, 3.8 i 4WD, 3.8 V6, V87W, V97W, V88W, V98W, 3.2 diesel (4M41), 3.8 (6G75) …Sumitomo calipers
MitsubishiPajero IVV8W, V9W, NS, NT, NW, NX, V90, V802006–3.2 DI-D, 3.2 DI-D 4WD, 3.2 TD 4WD, 3.8 i 4WD, 3.8 V6, V87W, V97W, V88W, V98W, 3.2 diesel (4M41) …Sumitomo calipers
MitsubishiPajeroshogunV90, V80, V8V2006–3.2 DI-D, 3.2 TD 4WD, 3.2 diesel (4M41)Sumitomo calipers
MitsubishiPajeroshogun ClassicV2W2006–3.8 (6G75)Sumitomo calipers
MitsubishiPajeroshogun IVV8W, V9W2007–3.2 DI-D, 3.2 DI-D 4WD, 3.8 i 4WD, 3.8 V6, V87W, V97W, V88W, V98W, 3.2 diesel (4M41), 3.8 (6G75) …Sumitomo calipers
MitsubishiShogun IVV8W, V9W2007–3.2 DI-D, 3.2 DI-D 4WD, 3.8 i 4WD, 3.8 V6, V87W, V97W, V88W, V98W, 3.2 diesel (4M41), 3.8 (6G75) …Sumitomo calipers
MitsubishiPajero V77 (China · GAC Mitsubishi)2004–20113.8L
Toyota4RunnerN210, N280, AN160, AN50, AN60, KZN18, VZN18, RZN182002–3.0TDI diesel, 2.7L, 4.0 VVTi, 4.7 4WD, 4.0 (1GR-FE), 4.7 (2UZ-FE), 4.0 4WDSumitomo calipers
ToyotaFJ CruiserGSJ12006–4.0 i V6, 4.0 i V6 4WD, 4.0 VVTi, 4.0 VVTi 4WD, 4.0 (1GR-FE)Sumitomo calipers
ToyotaFortunerTGN6, KUN6, GGN6, TGN5, LAN5, KUN5, GGN52004–20152.5 D-4D 4WD, 3.0 D, 3.0 D 4WD, 3.0 diesel (1KD-FTV), 2.5 diesel (2KD-FTV), 4.0 VVTi 4WD, 4.0 (1GR-FE)Sumitomo calipers
ToyotaHilu XRZN1, LN1, VIGO III KUN, TGN, LAN, GGN1995–2.5 D-4D, 2.5 D-4D 4WD, 3.0 D, 3.0 D-4D 4WD, 3.0 D 4WD, 3.4 4WD, KUN26, 3.0 diesel (1KD-FTV), 2.5 diesel (2KD-FTV), 2.7 (3RZ-FE) …Sumitomo calipers
ToyotaHilu X IILN8, RN5, LN6, YN6, YN5, LN5, RN62001–20053.4 4WD, 3.4 (5VZ-FE)Sumitomo calipers
ToyotaHilu X IIIKUN, TGN, LAN, GGN2005–2.5 D-4D, 2.5 D-4D 4WD, 3.0 D, 3.0 D-4D 4WD, 3.0 D 4WD, KUN26, 3.0 diesel (1KD-FTV), 2.5 diesel (2KD-FTV), 2.7 4WD, 4.0 4WD …Sumitomo calipers
ToyotaLand CruiserLJ12, KZJ12, TRJ12, KDJ12, GRJ122002–20093.0 D, 3.0 D-4D, 4.0 V6 WTi, 4.5 D, GRJ12, GRJ125, KDJ120, KDJ125, KDJ150, KZJ12 …Sumitomo calipers
ToyotaLand Cruiser 150KDJ15, GRJ152010–2.8 D-4D, 3.0 D-4D, 3.0 TDi, 4.0 V6 Dual VVTi, 4.0 V6 VVT-i, 4.0 V6 VVTi, 2.8 diesel (1GD-FTV), 4.0 (1GR-FE), 3.0 diesel (1KD-FTV), 2.7 (2TR-FE)Sumitomo calipers
ToyotaLand Cruiser PradoJ120, J150, KDJ15, GRJ15, LJ12, KZJ12, TRJ12, KDJ122002–3.0TDI diesel, 2.8TDI diesel, 2.8 D-4D, 3.0 D, 3.0 D-4D, 3.0 TDi, 4.0 V6 Dual VVTi, 4.0 V6 VVT-i, 4.0 V6 VVTi, 4.0 V6 WTi …Sumitomo calipers
ToyotaSequoiaKX30, XK402000–20074.7L
ToyotaSW4RZN1, LN1, TGN6, KUN6, GGN6, TGN5, LAN5, KUN51995–20152.5 D-4D 4WD, 3.0 D, 3.0 D 4WD, 3.4 4WD, 3.0 diesel (1KD-FTV), 2.5 diesel (2KD-FTV), 2.7 (3RZ-FE), 3.4 (5VZ-FE), 2.4 TD 4WD, 4.0 VVTi 4WD …Sumitomo calipers
ToyotaTacoma2nd gen, 3rd gen, TRN2, GRN22004–2.7L, 3.5L, 4.0 4WD, 4.0 (1GR-FE)
ToyotaTacoma IILN8, RN5, LN6, YN6, YN5, LN5, RN62001–20053.4 4WD, 3.4 (5VZ-FE)Sumitomo calipers
ToyotaTundra1st gen, K4, K32000–20064.7L, 4.0 4WD, 4.0 (1GR-FE)Sumitomo calipers
ToyotaLand Cruiser Prado (China · FAW Toyota)J120, J150, J152003–3.5L, 4.0 (1GR-FE), 2.7 (2TR-FE)
ToyotaPrado (China · FAW Toyota)2003–20104.0 (1GR-FE)Sumitomo calipers

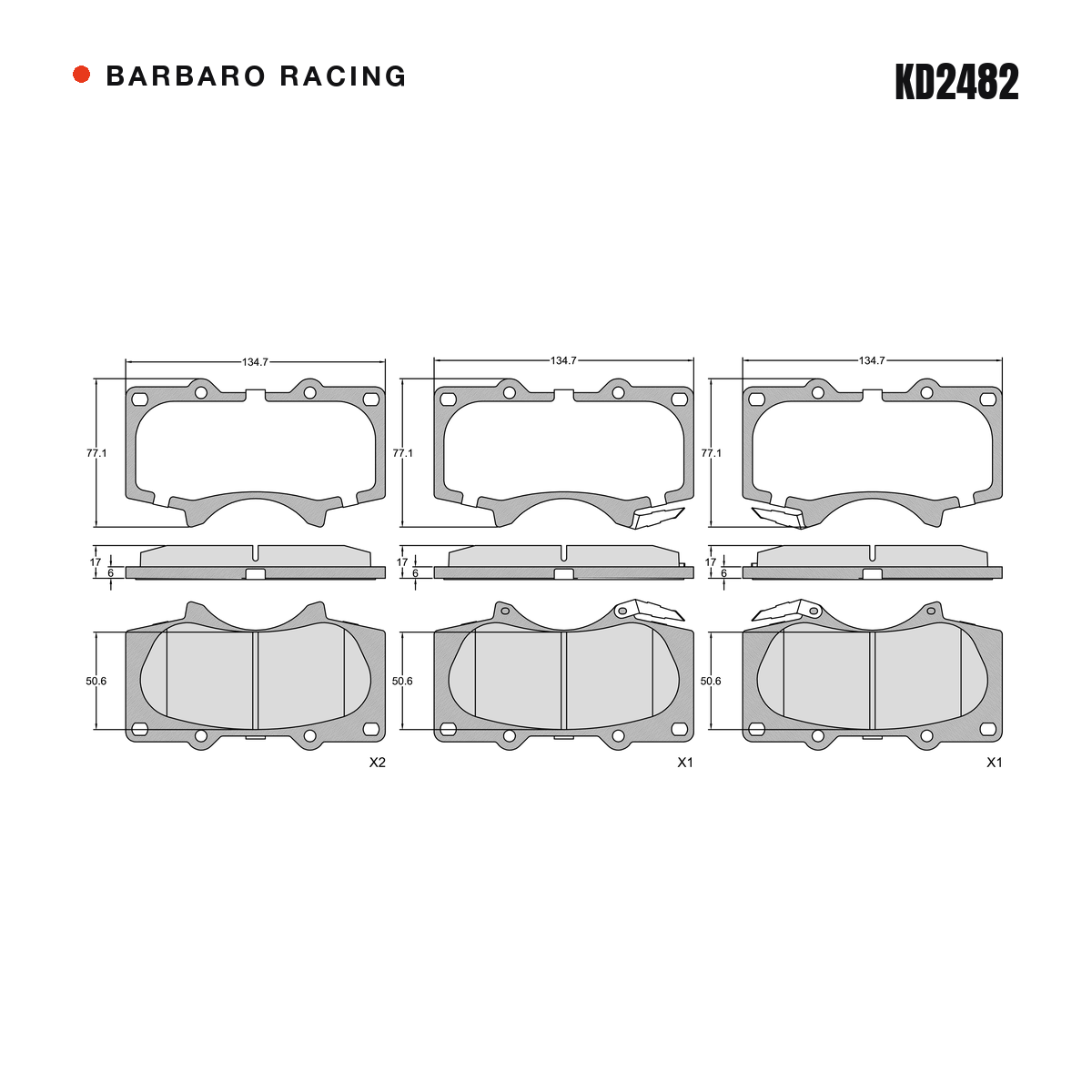

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSID976, D976-7877, D976-9216
TRWGDB3364
BremboP83066N, P83102, P83066
PAGIDT1368, T1795
FerodoFSL1698, FDB1698
Textar2402417805, 2402407, 2402403, 2402401, TX0705
MintexMDB2553
Bosch0986494153, 0986AB2392, 0986TB2449, 0986AB2096, 0986AB3885, 0986AB0261, 0986494449, F03B150123, BP1064, 986494153
ATE13046057472, 605747
DelphiLP1782, LP1308
Bendix572515B, DB1482
Jurid572515J, 472515J
Hella Pagid8DB355010491, 355024241, 8DB355024241
AkebonoACT976, AN690WK
NisshinboPF1482
MK KashiyamaD2228M
Icer181665, 181723
Remsa098800, 98800, 98812
WVA24024, 24025, 24026
OE Lexus0446504070, 0446535250, 0446535290, 0446560320
OE Mitsubishi4605A481, 4605A472, MZ690355
OE Toyota04465YZZDB, 0446560270, 0446535290, 0446504070, 044650K090, 0446560210, 0446560320, 0446535250

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the S-01 compound

S-01 · Where street meets track

Semi-metallic compound for street performance and track-day duty. Superior controlled deceleration at speed, excellent noise compatibility — and proven on the rear axle of professional race cars.

  • Temperature rating: 800°C
  • Friction: μ 0.35–0.50
  • Formula: Semi-metallic
  • 800°C maximum temperature rating
  • Street-legal track day capability
  • Superior high-speed deceleration control
  • Pro-level rear axle performance
  • Ideal for: Track days, heavy high-performance street cars and race-car rear axles

S-01 full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.

  • Toyota SW4 (RZN1, LN1, TGN6, KUN6) (1995-2015)
  • Toyota Land Cruiser 150 (KDJ15, GRJ15) 2.7 / 2.8 / 3.0 / 4.0, diesel (2010-)
  • Toyota Sequoia (KX30, XK40) 4.7L (2000-2007)
  • Toyota 4Runner (N210, N280, AN160, AN50) 4.0 / 4.7, diesel (2002-)
  • Toyota Fortuner (TGN6, KUN6, GGN6, TGN5) 2.5 / 3.0 / 4.0, diesel (2004-2015)
  • Toyota Hilux II (LN8, RN5, LN6, YN6) 3.4 4WD, 3.4 (2001-2005)
  • Toyota Hilux III (KUN, TGN, LAN, GGN) (2005-)
  • Toyota Land Cruiser (LJ12, KZJ12, TRJ12, KDJ12) (2002-2009)
  • Toyota Land Cruiser Prado (J120, J150, KDJ15, GRJ15) (2002-)
  • Toyota Hilux (RZN1, LN1, VIGO III KUN, TGN) (1995-)
  • Toyota Tacoma (2nd gen, 3rd gen, TRN2, GRN2) (2004-)
  • Toyota Tacoma II (LN8, RN5, LN6, YN6) 3.4 4WD, 3.4 (2001-2005)
  • Toyota Tundra (1st gen, K4, K3) 4.7L, 4.0 4WD, 4.0 (2000-2006)
  • Ferodo FDB1698 All
  • Mintex MDB2553 All
  • Pagid T1368 All
  • Pagid T1795 All
  • Toyota FJ Cruiser (GSJ1) 4.0 (2006-)
  • Mitsubishi Shogun IV (V8W, V9W) 3.0 / 3.2 / 3.8, diesel (2007-)
  • Mitsubishi Pajero IV (V8W, V9W, NS, NT) 3.0 / 3.2 / 3.8, diesel (2006-)
  • Mitsubishi Pajero Full IV (V8W, V9W) 3.0 / 3.2 / 3.8, diesel (2007-)
  • Mitsubishi Pajero Classic (V2W) 3.8 (2006-)
  • Mitsubishi Pajero / Shogun IV (V8W, V9W) 3.0 / 3.2 / 3.8, diesel (2007-)
  • Mitsubishi Pajero / Shogun Classic (V2W) 3.8 (2006-)
  • Mitsubishi Pajero / Shogun (V90, V80, V8V) 3.2 DI-D, 3.2 TD 4WD, 3.2 diesel (2006-)
  • Mitsubishi Pajero (V97) 3.8L (2006-)
  • Mitsubishi Montero IV (V8W, V9W) 3.0 / 3.2 / 3.8, diesel (2007-)
  • Mitsubishi Montero Classic (V2W) 3.8 (2006-)
  • Mitsubishi Montero (V90, V80, V8V) 3.2 DI-D, 3.2 TD 4WD, 3.2 diesel (2006-)
  • Lexus GX (J150, J120, J12, URJ15) 4.0L, 460, 470, 4.6, 4.7 (2001-)
  • Bendix DB1482 All
SKU D24820N6
Brand Barbaro Racing
Unit Of Measure EA
