Barbaro Racing KD2504 C-01 rear brake pads for Lexus RX / IS / GS / RC, Toyota Mirai / Sienna / Prius Alpha / Prius Plus / Prius V / Reiz (Mark X) / Ezi / Crown / Highlander. C-01 is Barbaro's premium copper-free low-metallic street compound (550°C, μ 0.40–0.48). Pad shape KD2504: 115.2 × 45.8 × 15 mm; interchanges with FMSI D1391, TRW GDB3497, Brembo P83132N.
Specifications
| Barbaro part number | KD2504 |
|---|
| Compound | C-01 — Copper-free low-metallic |
|---|
| Barbaro factory code (SKU) | D25043UZ |
|---|
| Axle | Rear |
|---|

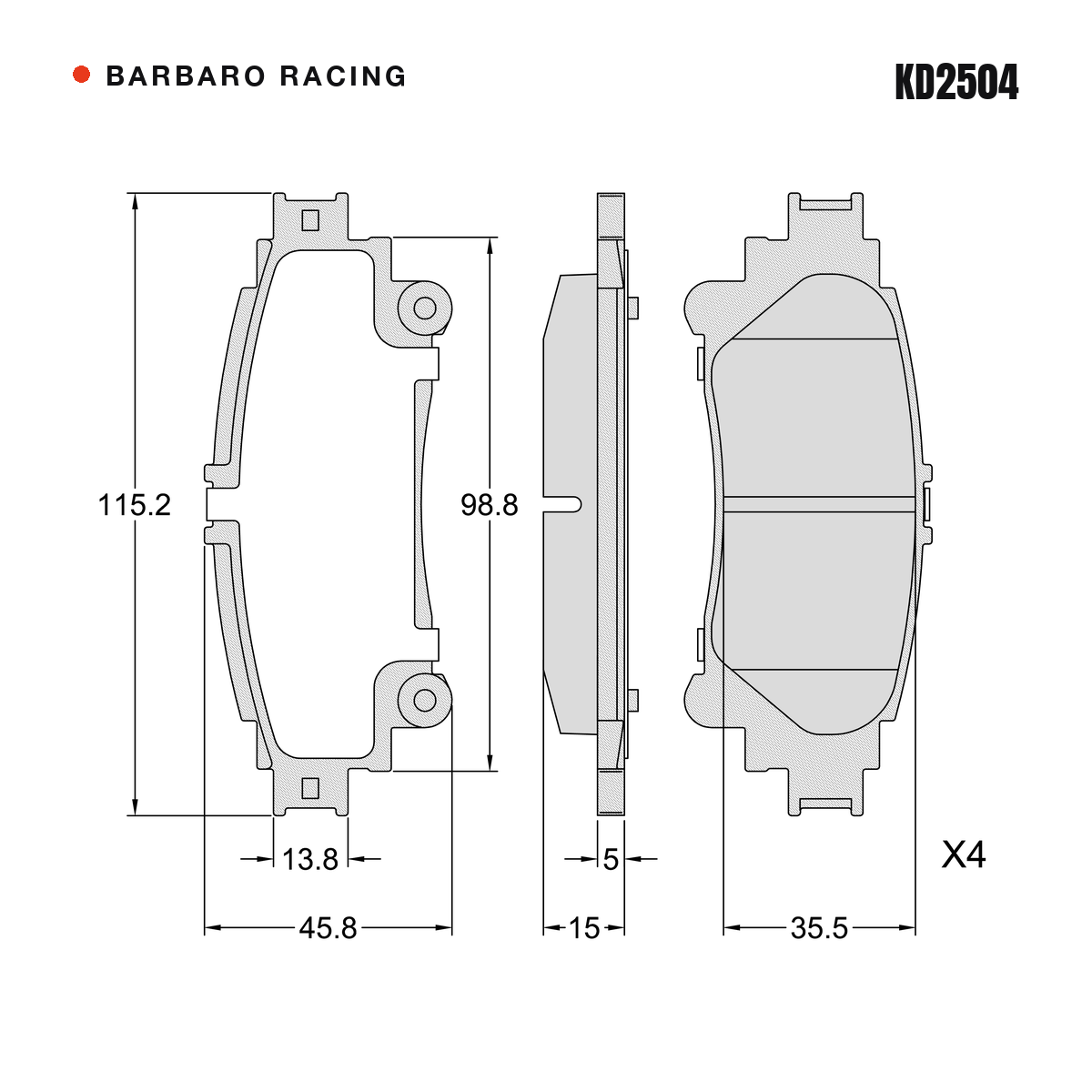

| Dimensions (L × H × T) | 115.2 × 45.8 × 15 mm |
|---|
| Friction material height | 35.5 mm |
|---|
| Supplied as | One axle set |
|---|
Vehicle fitment
| Make | Model | Chassis | Years | Engine / variant | Notes |
|---|
| Lexus | GS | GRL1, GWL1 | 2012– | 200t, 250, 300h, 350, 350 AWD, 450h, AWL10, GRL11, GRL10, GRL15 … | Akebono calipers |
| Lexus | IS | XE30, GSE3, AVE3 | 2013– | 250, 300h, 2.5 hybrid (2AR-FSE), 2.5 (4GR-FSE), 350, 3.5 (2GR-FSE) | Akebono calipers |
| Lexus | RC | AVC1, GSC1, USC1 | 2014– | 300h, 2.5 hybrid (2AR-FSE), 350, 3.5 (2GR-FSE) | Akebono calipers |
| Lexus | RX | GGL1, GYL1, AGL1 | 2008–2015 | 350 AWD, 450h, 450h AWD, GYL10, GYL15, 3.5 (2GR-FE), 3.5 (2GR-FXE), 3.5 hybrid (2GR-FXE), 270, 350 … | |
| Toyota | Mirai | | 2018– | hydrogen fuel cell | |
| Toyota | Prius Alpha | ZVW4 | 2011– | 1.8 Hybrid, 1.8 (2ZR-FXE) | |
| Toyota | Prius Plus | ZVW4 | 2011– | 1.8 Hybrid, 1.8 (2ZR-FXE) | |
| Toyota | Prius V | ZVW4 | 2011– | 1.8 Hybrid, 1.8 (2ZR-FXE) | |
| Toyota | Sienna | ASL3, GSL3 | 2010– | 3.5 VVTi 4WD, 2.7 (1AR-FE), 3.5 (2GR-FE) | |
| Toyota | Sienna Mini Cargo | | 2011– | 3.5 (2GR-FE) | |
| Toyota | Crown (China · FAW Toyota) | S210 | 2015– | 2.0T, 2.5L | |
| Toyota | Ezi (China · GAC Toyota) | | 2011– | 1.6L, 1.8L, 2.0L | |
| Toyota | Highlander (China · GAC Toyota) | | 2015– | 2.0 T, 3.5 (2GR-FE), 2.0 (8AR-FTS) | |
| Toyota | Reiz (Mark X) (China · FAW Toyota) | X130 | 2010–2017 | 2.5L, 3.0L | |
Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.
Cross-reference / interchange numbers
| FMSI | D1391, D1391-8841, D1391-8500, D1391-8809, D1391-9084 |
|---|
| TRW | GDB3497, GDB4174 |
|---|
| Brembo | P83132N, P83152, P83132 |
|---|
| PAGID | T1987, T3147 |
|---|
| Ferodo | FDB4395 |
|---|
| Textar | 2491801, 2552501 |
|---|
| Mintex | MDB3104, MDB3280 |
|---|
| Bosch | 0986495174 |
|---|
| ATE | 13047056352, 13046056352 |
|---|
| Delphi | LP2196, LP3155 |
|---|
| Bendix | 572656B, 573405B |
|---|
| Jurid | 572656J |
|---|
| Hella Pagid | 8DB355015371, 355020001, 8DB355020001 |
|---|
| Icer | 181983, 182050 |
|---|
| Remsa | 139500, 139510 |
|---|
| WVA | 25525, 24918 |
|---|
| OE Lexus | 0446648140, 0446648130, 0446630290, 0446630280, 044660E010, 0446630310, 0446630281, 0446630311, 044663031179 |
|---|
| OE Toyota | 0446647070, 0446648140, 044660E010, 0446648130, 0446630280, 0446630290, 04466-47050, 0446630310 |
|---|
Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.
About the C-01 compound
C-01 · Premium street performance
Premium copper-free low-metallic formula — asbestos-free, developed for noise, heat resistance and braking performance. Excellent in both braking and refinement, meeting EU and US environmental standards.
- Temperature rating: 550°C
- Friction: μ 0.40–0.48
- Formula: Copper-free low-metallic
- Standard: EU & US environmental standards
- Best-in-class noise performance (9/10)
- Exceptional brake linearity (9/10)
- Copper-free & asbestos-free formula
- Ideal for: City + highway driving; coupes, sport sedans and city SUVs
C-01 full specifications on barbaro-racing.com
About Barbaro Racing
Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.
