KD3703 RS-652 Front Brake Pads

Barbaro Racing KD3703 RS-652 front brake pads for Nissan 200SX S14 2.0 i 16V Turbo / Skyline R32 / R33 GTS, Subaru Impreza II GD/GG 2.0 WRX Turbo. RS-652 is Barbaro's extreme hybrid race compound for steel and carbon-ceramic rotors (50–800°C, μ 0.49–0.57 on steel). Pad shape KD3703: 119 × 62 × 14 mm; interchanges with FMSI D460-7340, Brembo P56025, Ferodo Racing FCP986H.

Specifications

Barbaro part number	KD3703
Compound	RS-652
Barbaro factory code (SKU)	D37035N5
Axle	Front

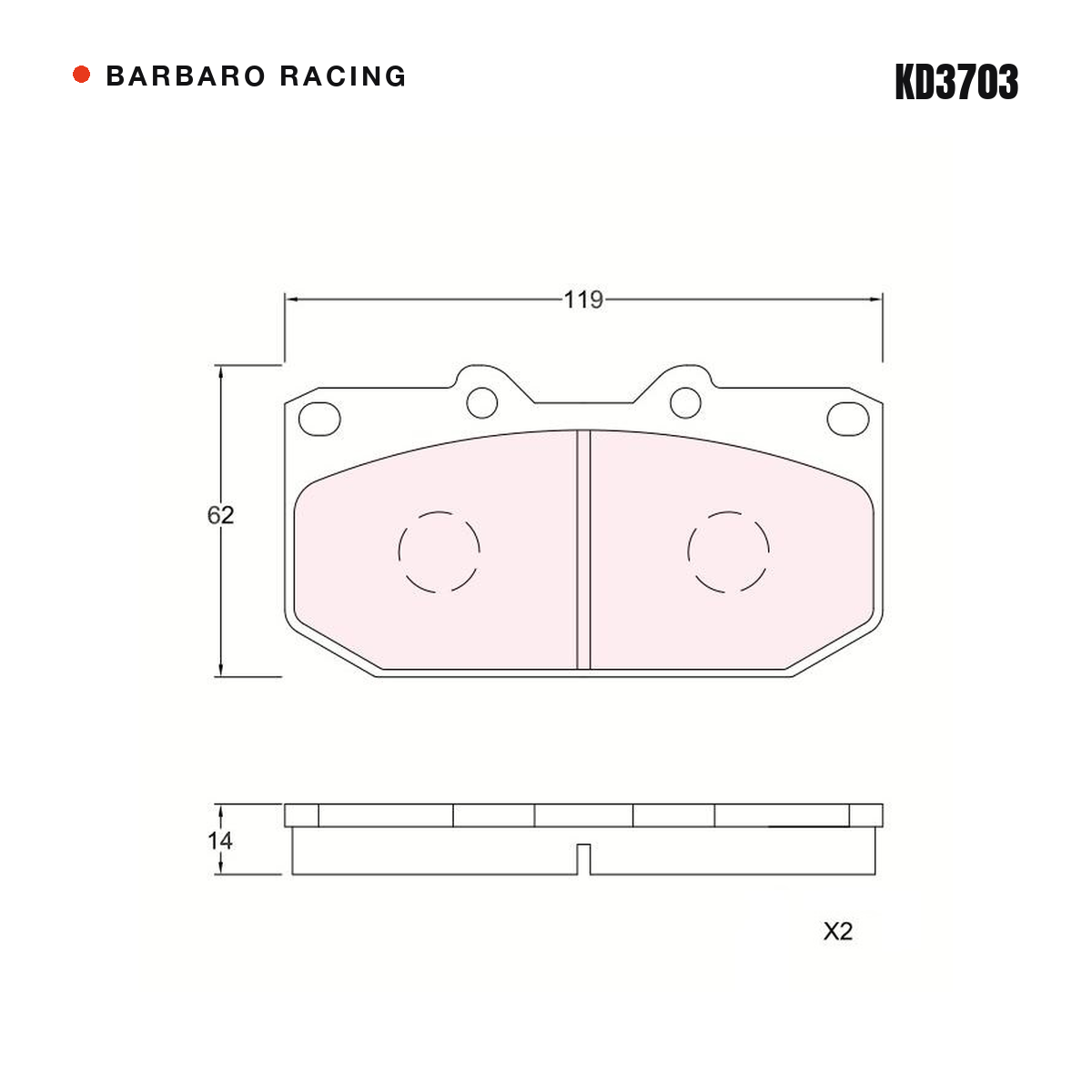

Dimensions (L × H × T)	119 × 62 × 14 mm
Drawing note	X2.
Supplied as	One axle set

Vehicle fitment

Make	Model	Years
Nissan	200SX S14 2.0 i 16V Turbo	1993–1999
Nissan	Skyline R32 / R33 GTS	1989–1998
Subaru	Impreza II GD/GG 2.0 WRX Turbo	2000–2005

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSI	D460-7340
Brembo	P56025
WVA	21308
Ferodo Racing	FCP986H

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the RS-652 compound

RS-652 · The extreme hybrid

Seven years in the making. Endurance and sprint on both carbon-ceramic and steel rotors with zero fall-off, protected by a self-renewing 1–3 micron transfer film. Average friction 0.555 μ — measured beyond PAGID RSL1 (0.510) and Endless MA45B (0.438).

Temperature range: 50–800°C
Friction: μ 0.49–0.57 (steel); rising with temperature on CCB
Discs: Steel + carbon-ceramic
Lock threshold: 95 bar (RS-635: 65 bar)
+46.1% lock threshold — 95 bar vs 65 bar
On CCB, friction rises with temperature — 0.689 μ at 800°C
Disc wear 0.001 mm — 1/9 of RSL1, 1/18 of MA45B
Ideal for: TCR, GT and touring-car racing on steel or carbon-ceramic discs

RS-652 full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.
