KD4169 CSI-01B Front Brake Pads - Porsche 911

Barbaro Racing KD4169 CSI-01B front brake pads for Porsche 911 and Brembo Porsche 911 GT3 6-piston calipers. CSI-01B is Barbaro's designated carbon-ceramic disc compound (−30–600°C, μ 0.40–0.43, SAE J2521 AA noise rating). Pad shape KD4169: 198.2 × 88.3 × 17.2 mm; interchanges with FMSI D1768.

Specifications

Barbaro part number	KD4169
Compound	CSI-01B
Barbaro factory code (SKU)	D41695N6
Axle	Front
Dimensions (L × H × T)	198.2 × 88.3 × 17.2 mm

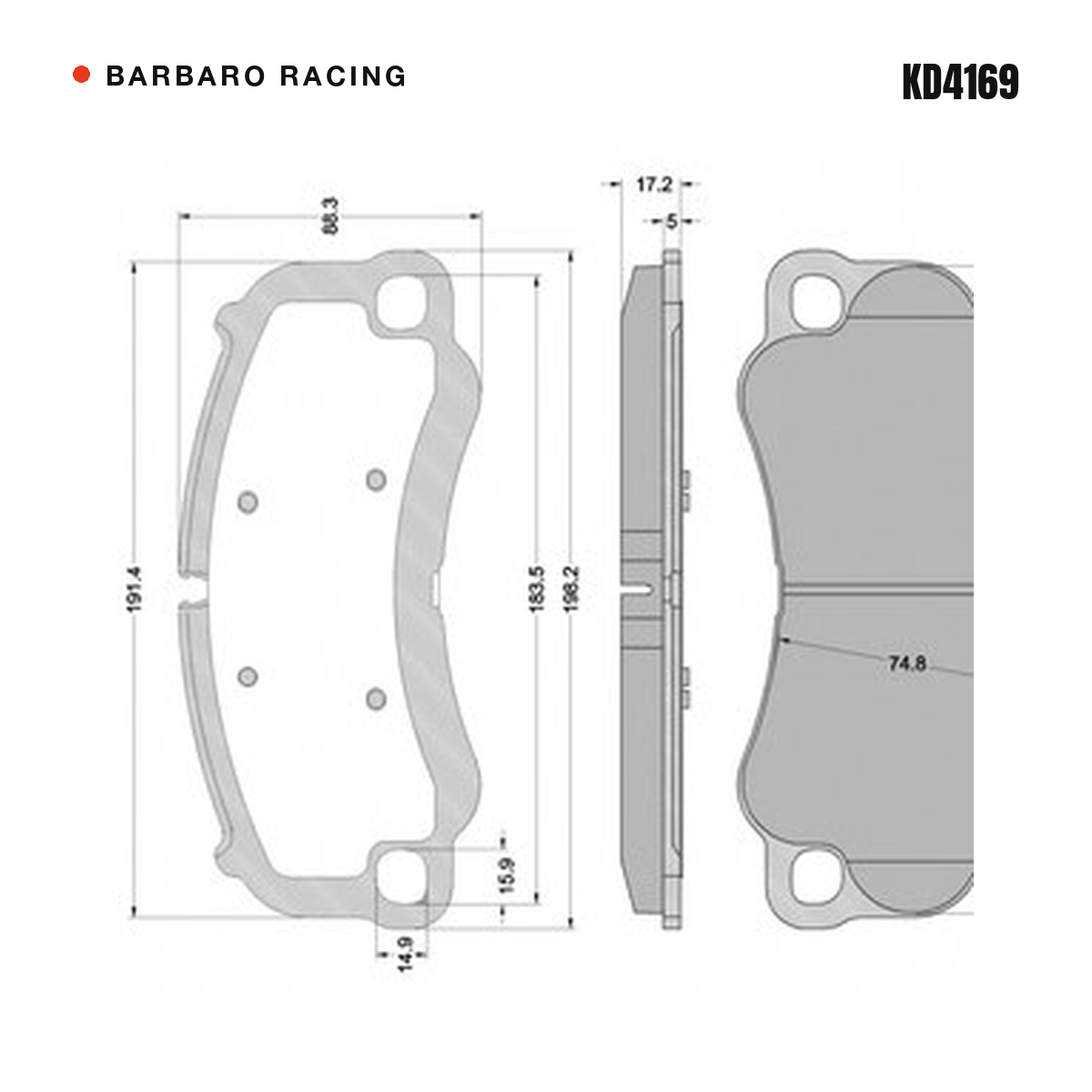

Drawing note	Drawing is rotated (long side vertical): length = vertical dimension, height = horizontal dimension. 198.2 is overall incl. ears; 191.4 plate body and 183.5 also dimensioned. Ear hole 15.9 x 14.9, backing plate 5, friction 74.8. Both price-list drawings identical.
Supplied as	One axle set
Pad features	interchangeable with KD4226
Also available for KD4169	KD4169 RS-635 Race Endurance

Caliper fitment

Caliper brand	Caliper	Details
Brembo	Porsche 911 GT3 6-piston (front)	narrow pad, 74 mm friction face

Vehicle fitment

Make	Model	Chassis	Years	Engine / variant	Notes
Porsche	911			GT3
Porsche	911 GT3

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSI	D1768

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the CSI-01B compound

CSI-01B · The designated compound

The designated formula for short-fiber molded coated carbon-ceramic discs — built on the CSI-01 lineage dating to 2019. High performance and low noise, finally unified. And cold bite that Ferrari and Lamborghini carbon-ceramic systems have always lacked.

Temperature window: −30–600°C
Friction: μ 0.40–0.43
Noise rating: SAE J2521 AA
Disc: Carbon-ceramic
SAE J2521 noise rating AA — on unmodified bare pads
Friction rises with temperature — exceeding 1.0 μ in fade tests
2,000+ vehicles on road · fewer than 5 noise cases
Ideal for: Carbon-ceramic street cars, including Ferrari and Lamborghini CCB systems

CSI-01B full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.
