KD4711 C-01 Rear Brake Pads - Subaru Impreza

Barbaro Racing KD4711 C-01 rear brake pads for Subaru Impreza / Forester, Nissan 350Z / Fairlady Z, Mitsubishi Lancer Evolution / Cedia / Lancer VI and AP Racing CP7700 / CP5317, AP Racing CP5317 / CP5119-family configuration calipers. C-01 is Barbaro's premium copper-free low-metallic street compound (550°C, μ 0.40–0.48). Pad shape KD4711: 76.8 × 65.5 × 13.5 mm; interchanges with FMSI D961, TRW GDB3350, Brembo P56048N.

Specifications

Barbaro part number	KD4711
Compound	C-01 — Copper-free low-metallic
Barbaro factory code (SKU)	D47113UZ
Axle	Rear

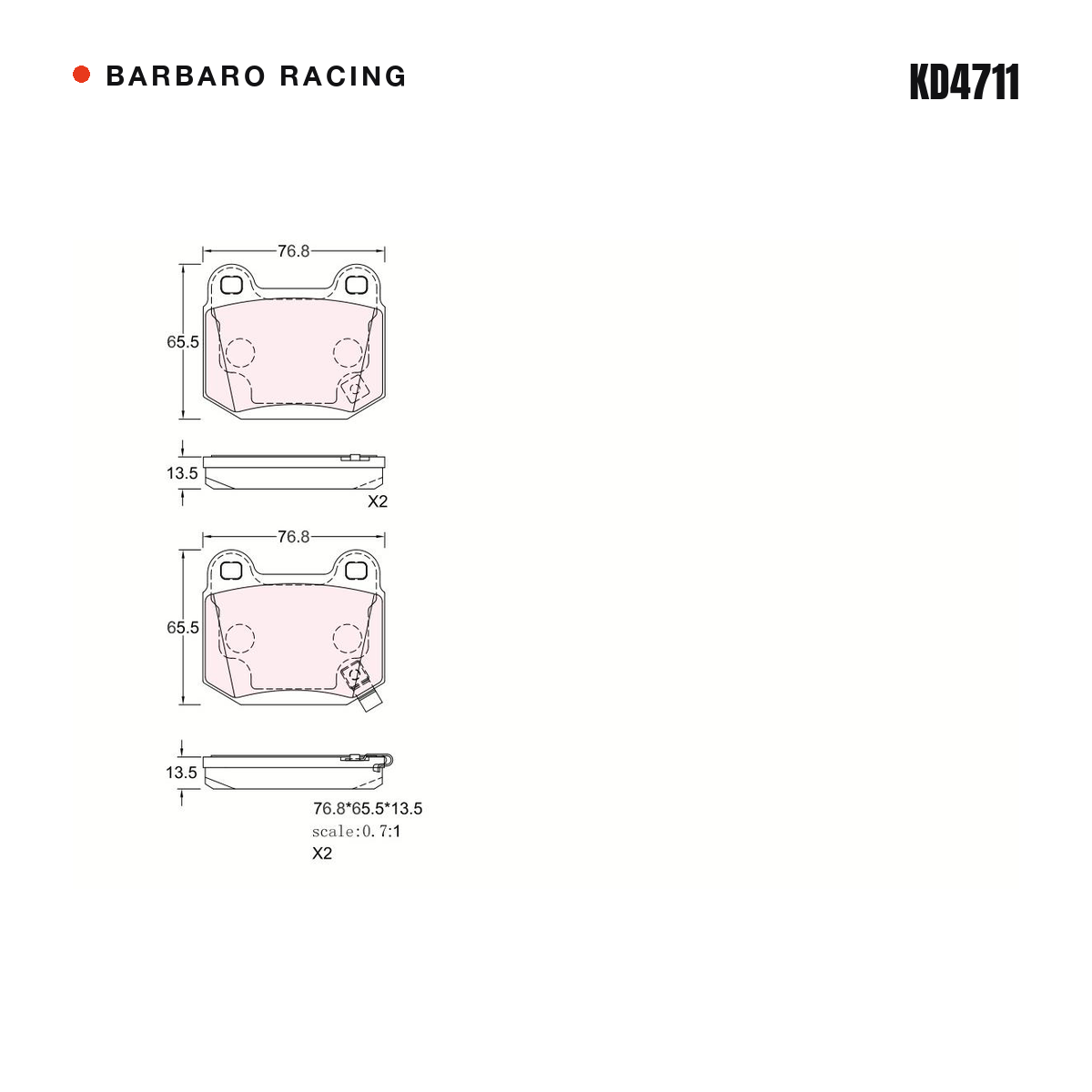

Dimensions (L × H × T)	76.8 × 65.5 × 13.5 mm
Friction material height	45 mm
Supplied as	One axle set
Also available for KD4711	KD4711 C-02 Silent City, KD4711 C-05

Caliper fitment

Caliper brand	Caliper	Details
AP Racing	CP7700 / CP5317	rear, 45 mm friction face
AP Racing	CP5317 / CP5119-family configuration

Vehicle fitment

Make	Model	Chassis	Years	Engine / variant	Notes
Mitsubishi	Cedia	CSA, CT0	2004–	16V EVO IX, 16V EVO VIII, 2.0 16V EVO IX, 2.0 16V EVO VIII, 2.0 4WD, CT9A, 2.0 (4G63Turbo)	only in conjunction with steel brake discs; Brembo calipers
Mitsubishi	Lancer	CSA, CT0	2004–	16V EVO IX, 16V EVO VIII, 2.0 16V EVO IX, 2.0 16V EVO VIII, 2.0 4WD, CT9A, 2.0 (4G63Turbo)	only in conjunction with steel brake discs; Brembo calipers
Mitsubishi	Lancer Evolution	9th gen	2000–2006	2.0T
Mitsubishi	Lancer VI	CJ-CP	1998–2001	16V EVO VII, 2.0 16V EVO, CT9A, 2.0 (4G63Turbo)	Brembo calipers
Nissan	350Z	Z33	2002–	3.5 (VQ35DE), 3.5 (VQ35HR)	only in conjunction with steel brake discs; Brembo calipers
Nissan	Fairlady Z	Z33	2002–	3.5 (VQ35DE), 3.5 (VQ35HR)	only in conjunction with steel brake discs; Brembo calipers
Subaru	Forester	SJ	2013–	2.0 D AWD, 2.0 XT AWD, 2.0 diesel (EE20Z), 2.0 (FA20)	Brembo calipers
Subaru	Impreza	GD, GG, GR, GH, G3	2000–	2.0 AWD, 2.0 i WRX, 2.0 Turbo, 2.0 Turbo AWD, 2.0 WRX STi AWD, 2.0 WRX Turbo AWD, 2.5 AWD, 2.5 i WRX AWD, 2.5 STI CS400 AWD, 2.5 WRX S AWD …	only in conjunction with steel brake discs; Brembo calipers
Subaru	Impreza WRX STI	GR, GD, GV	2001–	2.5T, 2.0T

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSI	D961
TRW	GDB3350
Brembo	P56048N, P59025, P56048
PAGID	T1209, T1476, T1386
Ferodo	FDS1562, FDB1562
Textar	2158001, 2158014305, 2338102, 2032306, 2338117005, TX0392
Mintex	MDB1890, MDB2562, MDB2342
Bosch	0986TB2476, 0986494229, 0986494445, 0986AB1068, 986494229
ATE	13046049742, 604974
Delphi	LP1839, LP1780, LP87
Bendix	DB1521, 572558B
Jurid	572558J
Hella Pagid	8DB355009061, 8DB355010691
Icer	181634
Remsa	66632, 014.52, 1452, 001452, 066632
WVA	21580, 23323
Ferodo Racing	FCP1562
PAGID Racing	1587, 2593
AP Racing	CP5119D50
CIRCO	MB680
Hawk	HB180.56
OE Infiniti	44060CD026, 44060CD094, D4060CD01B
OE Mitsubishi	MR407391, 4605A050
OE Nissan	44060CD026, D4060CD01B, D40F0CD026, D40F0CD00B, 44060CD094, D40F0CD094, D40F0CD01B, 4406012U87
OE Subaru	26696FE080, 26696FG000, 26696FE001, 26696FE000, 26696FE081, 26696SG000

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the C-01 compound

C-01 · Premium street performance

Premium copper-free low-metallic formula — asbestos-free, developed for noise, heat resistance and braking performance. Excellent in both braking and refinement, meeting EU and US environmental standards.

Temperature rating: 550°C
Friction: μ 0.40–0.48
Formula: Copper-free low-metallic
Standard: EU & US environmental standards
Best-in-class noise performance (9/10)
Exceptional brake linearity (9/10)
Copper-free & asbestos-free formula
Ideal for: City + highway driving; coupes, sport sedans and city SUVs

C-01 full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.
