KD5013 RS-652 Front Brake Pads

Barbaro Racing KD5013 RS-652 front brake pads for AP Racing CP7040 / CP9040 / CP9580, Dicase A61, AP Racing CP9580 D54 variants -6/-7/-8/-9 calipers. RS-652 is Barbaro's extreme hybrid race compound for steel and carbon-ceramic rotors (50–800°C, μ 0.49–0.57 on steel). Pad shape KD5013: 149 × 81 × 16.2 mm; interchanges with Endless RCP099, AP Racing CP7040D54, Ferodo Racing FRP3114.

Specifications

Barbaro part number	KD5013
Compound	RS-652
Barbaro factory code (SKU)	D50135N5
Axle	Front
Dimensions (L × H × T)	149 × 81 × 16.2 mm
Friction material height	54 mm
Supplied as	One axle set
Pad features	narrow pad
Also available for KD5013	KD5013 C-02 Silent City, KD5013 C-01 Premium Street, KD5013 S-01 Street & Track, KD5013 RS-635 Race Endurance, KD5013 CSI-01B Carbon-Ceramic

Caliper fitment

Caliper brand	Caliper	Details
AP Racing	CP7040 / CP9040 / CP9580	narrow pad, 54 mm friction face
Dicase	A61	D54
AP Racing	CP9580 D54 variants -6/-7/-8/-9

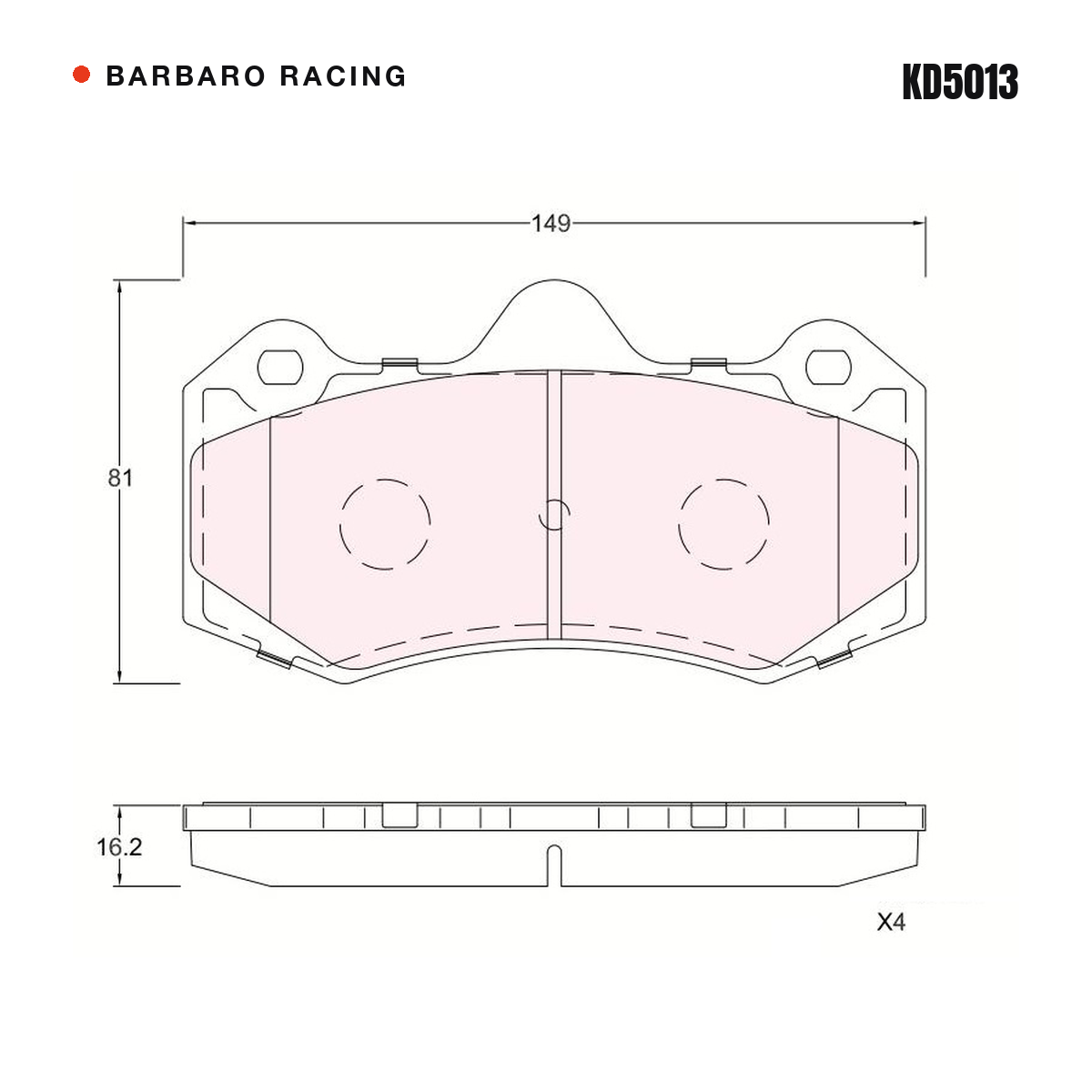

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

Ferodo Racing	FRP3114
Endless	RCP099
AP Racing	CP7040D54
CIRCO	MB1642

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the RS-652 compound

RS-652 · The extreme hybrid

Seven years in the making. Endurance and sprint on both carbon-ceramic and steel rotors with zero fall-off, protected by a self-renewing 1–3 micron transfer film. Average friction 0.555 μ — measured beyond PAGID RSL1 (0.510) and Endless MA45B (0.438).

Temperature range: 50–800°C
Friction: μ 0.49–0.57 (steel); rising with temperature on CCB
Discs: Steel + carbon-ceramic
Lock threshold: 95 bar (RS-635: 65 bar)
+46.1% lock threshold — 95 bar vs 65 bar
On CCB, friction rises with temperature — 0.689 μ at 800°C
Disc wear 0.001 mm — 1/9 of RSL1, 1/18 of MA45B
Ideal for: TCR, GT and touring-car racing on steel or carbon-ceramic discs

RS-652 full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.
