KD5048 RS-652 Front Brake Pads

Description
Specifications

Barbaro Racing KD5048 RS-652 front brake pads for Brembo GT race caliper calipers. RS-652 is Barbaro's extreme hybrid race compound for steel and carbon-ceramic rotors (50–800°C, μ 0.49–0.57 on steel). Pad shape KD5048: 163.6 × 86.8 × 25 mm.

Specifications

Barbaro part number	KD5048
Compound	RS-652
Barbaro factory code (SKU)	D50485N5
Axle	Front
Dimensions (L × H × T)	163.6 × 86.8 × 25 mm

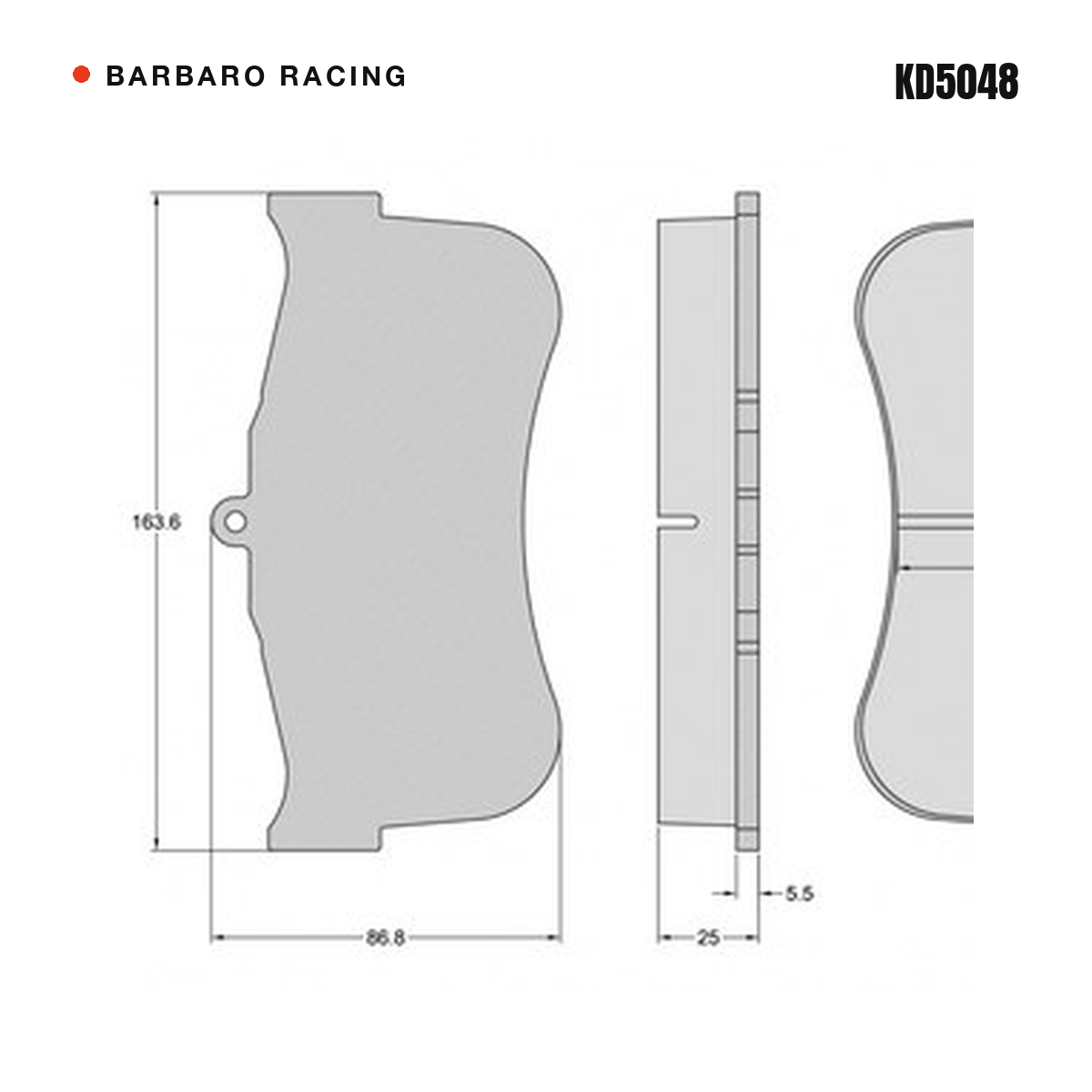

Drawing note	Drawing is rotated (long side vertical): length = vertical dimension, height = horizontal dimension. Backing plate 5.5. Both price-list drawings identical.
Supplied as	One axle set
Pad features	D64 friction face; 25 mm thick
Also available for KD5048	KD5048 RS-635 Race Endurance

Caliper fitment

Caliper brand	Caliper	Details
Brembo	GT race caliper	64 mm friction face, 25 mm thick

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

About the RS-652 compound

RS-652 · The extreme hybrid

Seven years in the making. Endurance and sprint on both carbon-ceramic and steel rotors with zero fall-off, protected by a self-renewing 1–3 micron transfer film. Average friction 0.555 μ — measured beyond PAGID RSL1 (0.510) and Endless MA45B (0.438).

Temperature range: 50–800°C
Friction: μ 0.49–0.57 (steel); rising with temperature on CCB
Discs: Steel + carbon-ceramic
Lock threshold: 95 bar (RS-635: 65 bar)
+46.1% lock threshold — 95 bar vs 65 bar
On CCB, friction rises with temperature — 0.689 μ at 800°C
Disc wear 0.001 mm — 1/9 of RSL1, 1/18 of MA45B
Ideal for: TCR, GT and touring-car racing on steel or carbon-ceramic discs

RS-652 full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.
