KD6593 C-01 Rear Brake Pads - Land Rover Range Rover

Barbaro Racing KD6593 C-01 rear brake pads for Land Rover Range Rover. C-01 is Barbaro's premium copper-free low-metallic street compound (550°C, μ 0.40–0.48). Pad shape KD6593: 116.6 × 62.9 × 16.1 mm; interchanges with FMSI D1427, TRW GDB1824, Brembo P44025N.

Specifications

Barbaro part number	KD6593
Compound	C-01 — Copper-free low-metallic
Barbaro factory code (SKU)	D65933UZ
Axle	Rear

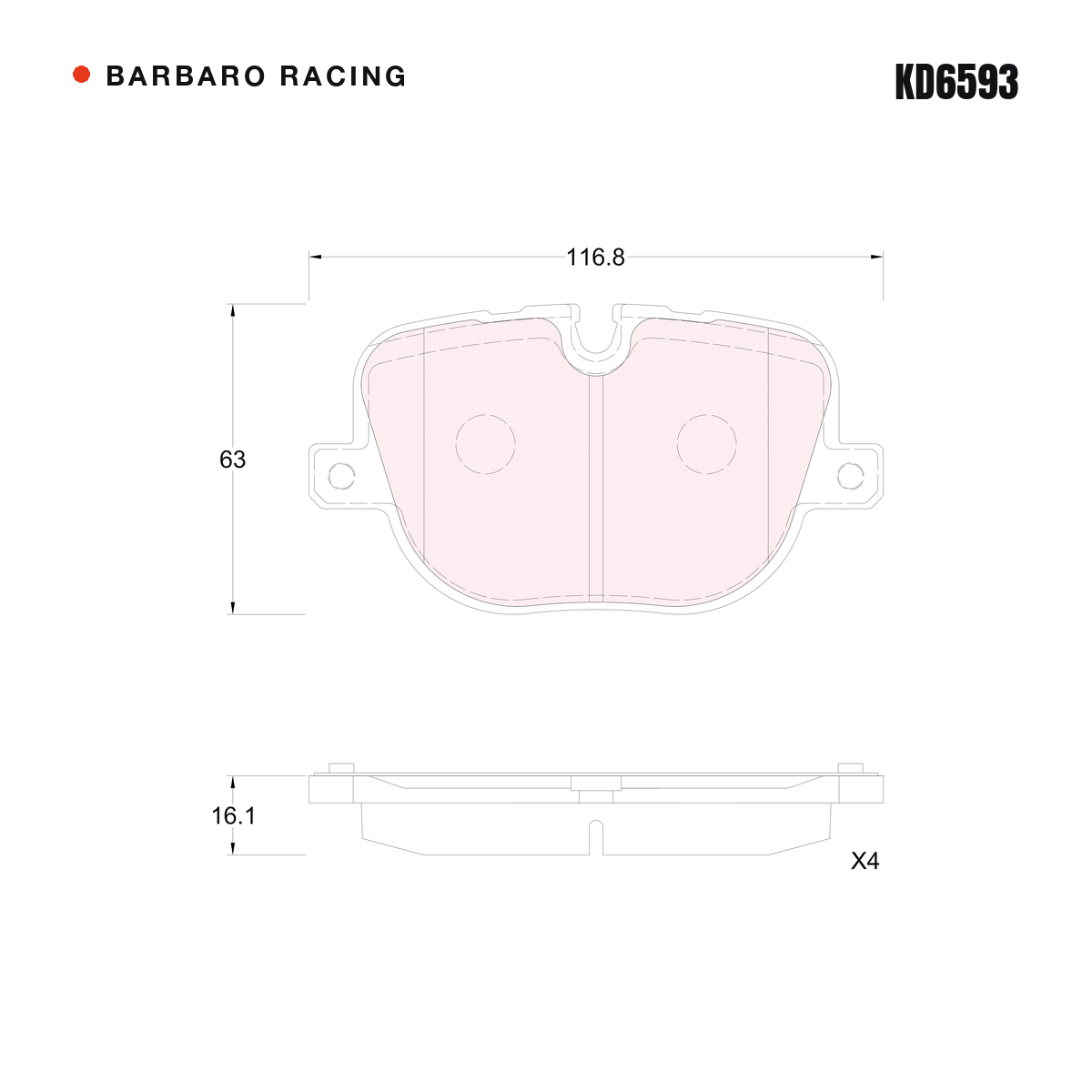

Dimensions (L × H × T)	116.6 × 62.9 × 16.1 mm
Friction material height	58.2 mm
Supplied as	One axle set

Vehicle fitment

Make	Model	Chassis	Years	Engine / variant	Notes
Land Rover	Range Rover	LS, L322	2002–2013	5.0 4x4, 5.0 V8 SC HSE, 5.0 (508PS), 3rd generation, 4.4TD diesel	Trw-Lucas calipers
Land Rover	Range Rover 3	L322	2009–2012	4.4TDI diesel, 5.0T
Land Rover	Range Rover III	LM	2009–2012	4.4 D 4x4, 5.0 4x4, 4.4 diesel (448DT), 5.0 (508PN), 5.0 (508PS)	Trw-Lucas calipers
Land Rover	Range Rover Sport	L320	2009–2013	5.0T

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSI	D1427, D1427-8544
TRW	GDB1824
Brembo	P44025N, P44025
PAGID	T1996
Ferodo	FDB4106
Textar	2508501
Mintex	MDB3113
Bosch	0986494409, 0986TB3097
Delphi	LP2175
Bendix	573342B, DB2207
Jurid	573342J, 573342JC
Hella Pagid	8DB355015451
Icer	181952
Remsa	140800
WVA	25085
OE Land Rover	LR015577, LR025739

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the C-01 compound

C-01 · Premium street performance

Premium copper-free low-metallic formula — asbestos-free, developed for noise, heat resistance and braking performance. Excellent in both braking and refinement, meeting EU and US environmental standards.

Temperature rating: 550°C
Friction: μ 0.40–0.48
Formula: Copper-free low-metallic
Standard: EU & US environmental standards
Best-in-class noise performance (9/10)
Exceptional brake linearity (9/10)
Copper-free & asbestos-free formula
Ideal for: City + highway driving; coupes, sport sedans and city SUVs

C-01 full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.
