Barbaro Racing KD6782 C-01 rear brake pads for Ford Mondeo IV / S-MAX / Galaxy / Kuga I / Focus II, Land Rover Freelander 2 / LR2, Volvo S80 / V70 III / XC70 II / V70 XC / XC70 Cross Country, Ford Australia Mondeo, Proton Exora / Prevé / Suprima. C-01 is Barbaro's premium copper-free low-metallic street compound (550°C, μ 0.40–0.48). Pad shape KD6782: 95.5 × 42.5 × 15.2 mm; interchanges with FMSI D1314, TRW GDB1708, Brembo P24075N.

Specifications

Barbaro part numberKD6782
CompoundC-01 — Copper-free low-metallic
Barbaro factory code (SKU)D67823UZ
AxleRear

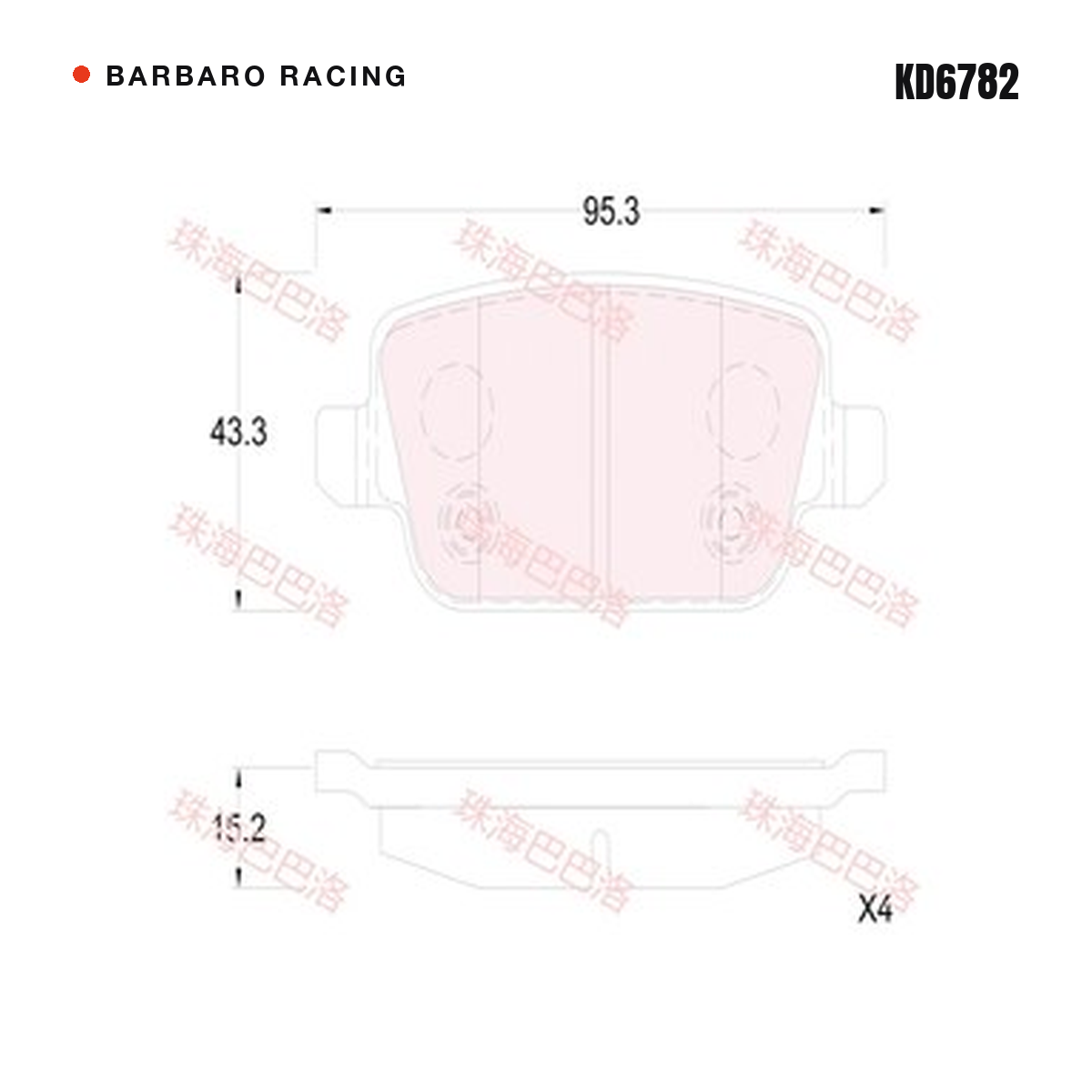

Dimensions (L × H × T)95.5 × 42.5 × 15.2 mm
Friction material height39.5 mm
Supplied asOne axle set

Vehicle fitment

MakeModelChassisYearsEngine / variantNotes
FordFocus IIDA2005–20122.5 RS, 2.5 RS 500, 2.5 (JZDA), 2.5 ST, i XR5 Turbo, 2.5 (HYDA)Trw-Lucas calipers
FordGalaxyWA62006–20151.6 EcoBoost, 1.6 TDCi, 1.8 TDCi, 2.0 EcoBoost, 2.0 Flexifuel, 2.0 TDCi, 2.2 TDCi, 2.0 (AOWA), 2.0 (AOWB), 2.0 diesel (AZWA) …Trw-Lucas calipers
FordKuga I2008–2.0 TDCi, 2.0 TDCi 4x4, 2.5 4x4, 2.0 diesel (G6DG), 2.0 diesel (TXDA), 2.0 diesel (UFDA), 2.0 diesel (UKDA), 2.5 (HYDB), 2.5 (HYDC)Trw-Lucas calipers
FordMondeo IVBA72007–1.6 EcoBoost, 1.6 TDCi, 1.6 Ti, 1.8 TDCi, 2.0 EcoBoost, 2.0 Flexifuel, 2.0 LPG, 2.0 SCTi, 2.0 TDCi, 2.2 TDCi …Trw-Lucas calipers
FordS-MAXWA62006–1.6 EcoBoost, 1.6 TDCi, 1.8 TDCi, 2.0 EcoBoost, 2.0 Flexifuel, 2.0 TDCi, 2.2 TDCi, 2.5 ST, 2.0 (AOWA), 2.0 (AOWB) …Trw-Lucas calipers
FordMondeo (China · Changan Ford)2007–2.0 (GTDIQ0), 2.0 (GTDIQ1), 2.0 (LF-DE), 2.3 (L3)
FordMondeo "Zhisheng" (China · Changan Ford)CD3452007–20162.0L, 2.0T, 2.3L
FordS-MAX (China · Changan Ford)CD340, BWS2007–2.3 (L3), 2.3 (L3X)
Ford AustraliaMondeoMA, MB, MC2007–20152.0 TDCi, 2.0 diesel (AZBA), 2.0 i 16V, 2.3 i 16 V, XR5 Turbo, 2.5 (HUBA), 2.0 diesel (QXBA), 2.0 diesel (QXBB), 2.0 diesel (UFBA), 2.0 diesel (UFBB) …Trw-Lucas calipers
Land RoverFreelander 2L359, LF, FA2006–20143.2L, 2.2 eD4, 2.2 SD4 4x4, 2.2 TD4 4x4, 2.2 diesel (224DT), 2.2 diesel (DW12BTED4)
Land RoverLR2LF, FA2006–20142.2 eD4, 2.2 SD4 4x4, 2.2 TD4 4x4, 2.2 diesel (224DT), 2.2 diesel (DW12BTED4)
ProtonExora2011–1.6
ProtonPrevé2011–1.6 (S4PH)
ProtonSuprimaCR2013–1.6
ProtonSuprima S2013–1.6
VolvoS802nd gen2009–20111.6T
VolvoS80 IIAS2006–1.6 DRIVe, 2.0 FlexFuel, 2.0 T, 2.0 TDi, 2.4 D, 2.5 T, 2.5 T FlexFuel, 3.2 AWD, 4.4 V8 AWD, D3 / D4 …
VolvoV70 IISW2001–20072.4 D5, 2.4 diesel (D5244T), 2.4 diesel (D5244T5)
VolvoV70 IIIBW2007–1.6 T4F, 2.0 FlexiFuel, 2.0 T, 2.4 D, 2.5 T, 2.5 T FlexiFuel, 3.2 AWD, D5, D5 AWD, T4 …
VolvoV70 XC2005–20072.4 D5 AWD, 2.4 diesel (D5244T4)
VolvoXC70 Cross Country2005–20072.4 D5 AWD, 2.4 diesel (D5244T4)
VolvoXC70 II2007–2.4 D, 2.4 D / D4 AWD, 3.2 AWD, D3, D3 AWD, D5 AWD, T6 AWD, 3.0 (B6304T2), 3.0 (B6304T4), 3.2 (B6324S) …

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSID1314, D1314-8429
TRWGDB1708, GDB1732, GDB1709, GDB1732DTE
BremboP24075N, P44016, P44017, P24075
PAGIDT1696
FerodoFSL1933, FDB1933, FDB1917, FDB1932, FSL1917
Textar2453702, 2453701, 2453703, 2453708, 2453715714
MintexMDB2887, MDK0257
Bosch0986494247, 0986AB2967, 0986AB3951, 0986TB2984, 986494247, 0986424214, 0986494639, 0986494214
ATE13046027372, 13047027232, LD2723, 602737, 13.0460-2723.2, 602723
DelphiLP1969
BendixDB1999, 573263B
Jurid573263J, 573263JC
Hella Pagid8DB355013301, 355023961, 8DB355023961
Icer181801, 181881
Remsa125662, 1256.00, 2125600
WVA24537
OE Land RoverLR003657
OE Ford1477803, 1566234, 1682005, 6G9012M008GD, 6G912MM08GA, ME6G9J2M008GA, 1438867, 15662234, 1756395, 6G912M008GC, 6G912M008GF, 1459408, 6G912MM08GB, 6G912MM08GC …
OE Volvo30671576, 30794553, 30742490

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the C-01 compound

C-01 · Premium street performance

Premium copper-free low-metallic formula — asbestos-free, developed for noise, heat resistance and braking performance. Excellent in both braking and refinement, meeting EU and US environmental standards.

  • Temperature rating: 550°C
  • Friction: μ 0.40–0.48
  • Formula: Copper-free low-metallic
  • Standard: EU & US environmental standards
  • Best-in-class noise performance (9/10)
  • Exceptional brake linearity (9/10)
  • Copper-free & asbestos-free formula
  • Ideal for: City + highway driving; coupes, sport sedans and city SUVs

C-01 full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.

  • Proton Suprima S 1.6 (2013-)
  • Pagid T1696 All
  • Mintex MDB2887 All
  • Ferodo FDB1933 All
  • Ferodo FDB1932 All
  • Ferodo FDB1917 All
  • Bendix DB1999 All
  • Volvo XC70 II 2.0 / 2.4 / 3.0 / 3.2, diesel, AWD (2007-)
  • Volvo XC70 Cross Country 2.4 D5 AWD, 2.4 diesel (2005-2007)
  • Volvo V70 XC 2.4 D5 AWD, 2.4 diesel (2005-2007)
  • Volvo V70 III (BW) 1.6 / 2.0 / 2.4 / 2.5 / 3.0 / 3.2 (2007-)
  • Volvo V70 II (SW) 2.4 D5, 2.4 diesel (2001-2007)
  • Volvo S80 II (AS) 1.6 / 2.0 / 2.4 / 2.5 / 3.0 / 3.2 / 4.4 (2006-)
  • Volvo S80 (2nd gen) 1.6T (2009-2011)
  • Proton Suprima (CR) 1.6 (2013-)
  • Proton Preve 1.6 (2011-)
  • Proton Exora 1.6 (2011-)
  • Land Rover LR2 (LF, FA) 2.2, diesel (2006-2014)
  • Land Rover Freelander 2 (L359, LF, FA) 2.2, diesel (2006-2014)
  • Ford Mondeo (MA, MB, MC) 2.0 / 2.3 / 2.5, diesel, Turbo (2007-2015)
  • Ford S-MAX (WA6) 1.6 / 1.8 / 2.0 / 2.2 / 2.3 / 2.5 (2006-)
  • Ford Mondeo IV (BA7) 1.6 / 1.8 / 2.0 / 2.2 / 2.3 / 2.5 (2007-)
  • Ford Galaxy (WA6) 1.6 / 1.8 / 2.0 / 2.2 / 2.3, diesel (2006-2015)
  • Ford Focus II (DA) 2.5, Turbo (2005-2012)
  • Ford Kuga I 2.0 / 2.5, diesel (2008-)
SKU D67823UZ
Brand Barbaro Racing
Unit Of Measure EA
