KD7032 C-01 Rear Brake Pads - Mercedes-Benz GL-Class

Barbaro Racing KD7032 C-01 rear brake pads for Mercedes-Benz GL-Class / A-Class / GLE / M-Class / GLS / CLA / GLA / Gla-Class / SLK. C-01 is Barbaro's premium copper-free low-metallic street compound (550°C, μ 0.40–0.48). Pad shape KD7032: 116.4 × 50 × 17.5 mm; interchanges with FMSI D1630, TRW GDB1947, Brembo P50099N.

Specifications

Barbaro part number	KD7032
Compound	C-01 — Copper-free low-metallic
Barbaro factory code (SKU)	D70323UZ
Axle	Rear
Dimensions (L × H × T)	116.4 × 50 × 17.5 mm
Friction material height	44 mm
Supplied as	One axle set
Also available for KD7032	KD7032 S-01 Street & Track

Vehicle fitment

Make	Model	Chassis	Years	Engine / variant	Notes
Mercedes-Benz	A-Class	W176	2013–	AMG A45 4MATIC, 2.0T, AMG A 45 4-matic, 176.052, 2.0 (M133.980), A 45 AMG 4-matic, 4MATIC	Trw-Lucas calipers
Mercedes-Benz	CLA	C117, X117	2013–	AMG CLA45 4MATIC, 2.0T, AMG CLA 45 4-matic, CLA 45 AMG 4-matic, 117.352, 2.0 (M133.980), 117.952	Trw-Lucas calipers
Mercedes-Benz	GL-Class	X166	2012–	AMG GL63 4MATIC, 5.5T, GL 350 CDI / BlueTec 4-matic, GL 400 4-matic, GL 500 4-matic, GL 550, GL 63 AMG 4-matic, 166.823, 166.824, 166.856 …	Trw-Lucas calipers
Mercedes-Benz	GLA	X156	2014–	AMG GLA45 4MATIC, 2.0T
Mercedes-Benz	Gla-Class	X156	2014–	AMG GLA 45 4-matic, 156.952, 2.0 (M133.980), GLA 45 AMG 4-matic	Trw-Lucas calipers
Mercedes-Benz	GLE	C292, W166	2014–	AMG GLE63 4MATIC Coupe, 5.5T, AMG GLE63 4MATIC, AMG GLE63 S 4MATIC, 250 d, 250 d 4-matic, 320 4-matic, 350 d 4-matic, 400 4-matic, 450 AMG 4-matic …	Trw-Lucas calipers
Mercedes-Benz	GLS	X166	2015–	AMG GLS63 4MATIC, 5.5T, GLS500 4MATIC, 4.7T, GLS550 4MATIC, 350 d 4-matic, 400 4-matic, 500 4-matic, 166.824, 166.856 …	Trw-Lucas calipers
Mercedes-Benz	M-Class	W166	2011–	AMG ML63 4MATIC, 5.5T, ML 250 CDI / BlueTEC 4-matic, ML 350 4-matic, ML 350 BlueTEC 4-matic, ML 350 CDI 4-matic, ML 400 4-matic, ML 500 4-matic, ML 550, ML 63 AMG 4-matic …	Trw-Lucas calipers
Mercedes-Benz	SLK	R172	2012–	55 AMG, 172.475, 5.5 (M152.980)	Trw-Lucas calipers

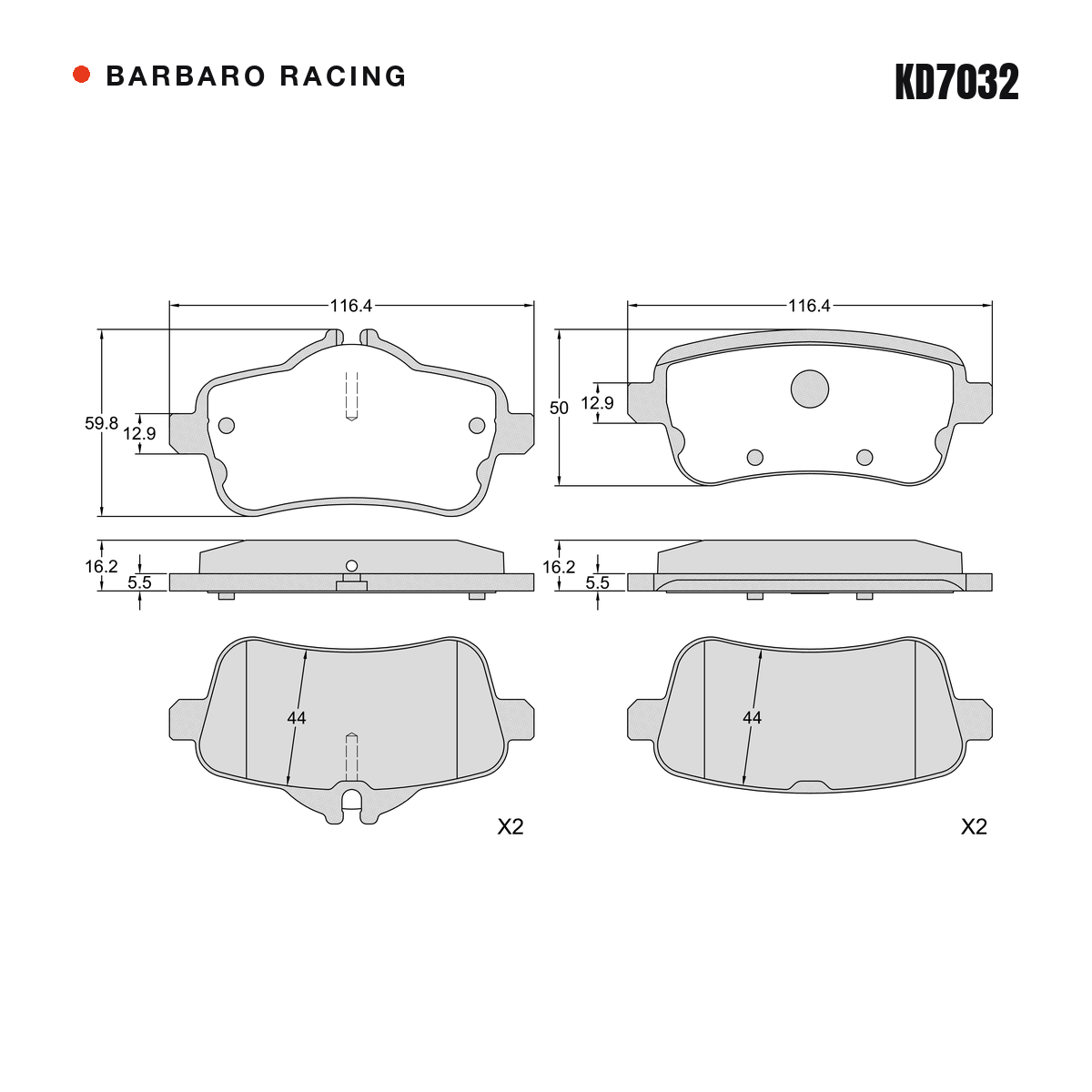

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSI	D1630, D1630-8848, D1630-8880
TRW	GDB1947
Brembo	P50099N, P50100, P50101, P50099
PAGID	T2189, T2214, T2151
Ferodo	FDB4169, FDB4587, FDB4701
Textar	2521501, 2521502, 2521505
Mintex	MDB3245, MDB3315
Bosch	0986TB3206
ATE	13046027822, 13047027822, 13047027812, 13046027812
Delphi	LP3159, LP2443
Bendix	573465B, 573466B, 573458B
Jurid	573458J, 573465J
Hella Pagid	8DB355019841, 8DB355020161, 8DB355019741
Icer	182072067, 182072066
Remsa	130410, 150300, 150310
WVA	25215, 25216
OE Mercedes-Benz	0064203320, 0064203420, 0064203520, 0064204020, 0064204120, 0064206320, 0074209020, A0064203320, A0064206820, A0074209020, 0064206820, 0074207720, 0074208220, A0074207720 …

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the C-01 compound

C-01 · Premium street performance

Premium copper-free low-metallic formula — asbestos-free, developed for noise, heat resistance and braking performance. Excellent in both braking and refinement, meeting EU and US environmental standards.

Temperature rating: 550°C
Friction: μ 0.40–0.48
Formula: Copper-free low-metallic
Standard: EU & US environmental standards
Best-in-class noise performance (9/10)
Exceptional brake linearity (9/10)
Copper-free & asbestos-free formula
Ideal for: City + highway driving; coupes, sport sedans and city SUVs

C-01 full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.
