KD7069 C-01 Front Brake Pads - Mercedes-Benz M-Class

Barbaro Racing KD7069 C-01 front brake pads for Mercedes-Benz M-Class / GL-Class / R-Class. C-01 is Barbaro's premium copper-free low-metallic street compound (550°C, μ 0.40–0.48). Pad shape KD7069: 193.2 × 80.8 × 19.5 mm; interchanges with FMSI D1272, TRW GDB1797, Brembo P50115N.

Specifications

Barbaro part number	KD7069
Compound	C-01 — Copper-free low-metallic
Barbaro factory code (SKU)	D70693UZ
Axle	Front
Dimensions (L × H × T)	193.2 × 80.8 × 19.5 mm
Friction material height	69.1 mm
Supplied as	One axle set

Vehicle fitment

Make	Model	Chassis	Years	Engine / variant	Notes
Mercedes-Benz	GL-Class	X164	2005–	GL420 4MATIC, 4.0L diesel, GL450 4MATIC, GL550 4MATIC, GL 320 CDI / 350 BlueTEC 4-matic, GL 320 CDI 4-matic, GL 350 CDI 4-matic, GL 420 CDI 4-matic, GL 450 4-matic, GL 450 CDI 4-matic …	Teves calipers
Mercedes-Benz	M-Class	W164	2004–	ML500, ML500 4MATIC, 5.0L, ML 500 4-matic, ML 550, 164.172, 5.5 (M273.963)	Teves calipers
Mercedes-Benz	R-Class	W251, V251	2006–	R500L 4MATIC, R 500 4-matic, R 550, 251.072, 251.172, 5.5 (M273.963)

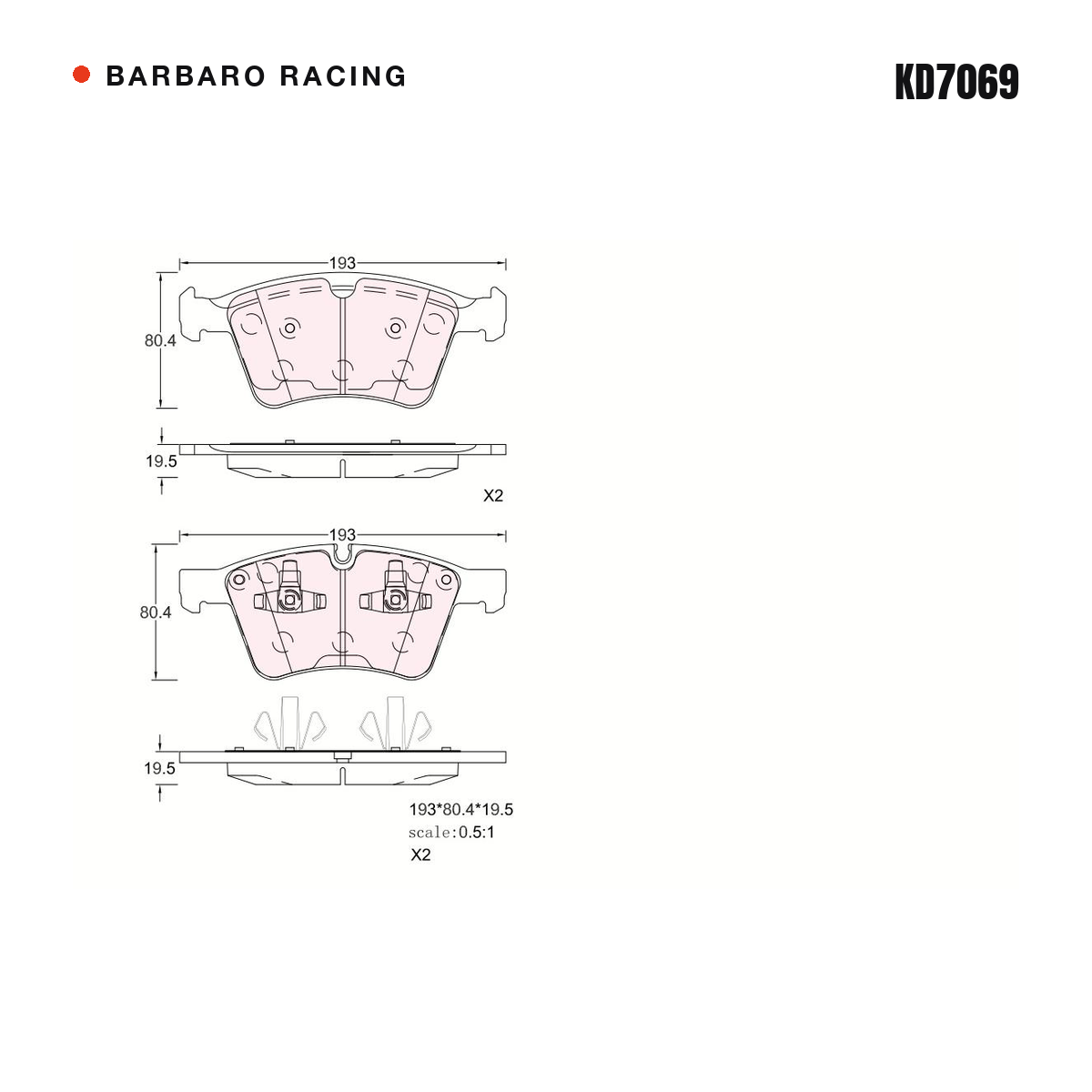

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSI	D1272, D1272-8388
TRW	GDB1797, GDB1797DTE
Brembo	P50115N, P50115
PAGID	T1802
Ferodo	FDB4189
Textar	2415101, TX0746, 2415120305
Mintex	MDB2995
Bosch	0986494427
ATE	13046072712
Delphi	LP2139
Bendix	573424B
Jurid	573424J
Hella Pagid	355014191, 8DB355014191
Icer	182086
Remsa	137000
WVA	24151, 24152
OE Mercedes-Benz	1644201320, 1644202520, A1644201320, A1644202520

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the C-01 compound

C-01 · Premium street performance

Premium copper-free low-metallic formula — asbestos-free, developed for noise, heat resistance and braking performance. Excellent in both braking and refinement, meeting EU and US environmental standards.

Temperature rating: 550°C
Friction: μ 0.40–0.48
Formula: Copper-free low-metallic
Standard: EU & US environmental standards
Best-in-class noise performance (9/10)
Exceptional brake linearity (9/10)
Copper-free & asbestos-free formula
Ideal for: City + highway driving; coupes, sport sedans and city SUVs

C-01 full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.
