KD7106 CSI-01B Brake Pads - Volkswagen Touareg

Barbaro Racing KD7106 CSI-01B brake pads for Volkswagen Touareg, Aston Martin DB11, Ferrari 458 and Brembo F50 calipers. CSI-01B is Barbaro's designated carbon-ceramic disc compound (−30–600°C, μ 0.40–0.43, SAE J2521 AA noise rating). Pad shape KD7106: 131.8 × 77.3 × 15.5 mm; interchanges with FMSI D1129, TRW GDB1670, Brembo P85110N.

Specifications

Barbaro part number	KD7106
Compound	CSI-01B
Barbaro factory code (SKU)	D71065N6
Axle	Front or rear, depending on where the caliper is fitted
Dimensions (L × H × T)	131.8 × 77.3 × 15.5 mm
Friction material height	60.6 mm
Supplied as	One axle set
Pad features	wide pad
Also available for KD7106	KD7106 C-01 Premium Street, KD7106 RS-635 Race Endurance, KD7106 RS-652 Race Extreme Hybrid

Caliper fitment

Caliper brand	Caliper	Details
Brembo	F50	wide pad, 60.7 mm friction face, wear-sensor provision, front or rear

Vehicle fitment

Make	Model	Chassis	Years	Engine / variant	Axle	Notes
Aston Martin	DB11				Rear
Ferrari	458				Rear
Volkswagen	Touareg	7LA, 7L6, 7L7, 7P5	2002–	2.5 R5 TDI, 3.0 TDI, 3.0 V6 TDI, 3.0 V6 TSI, 3.0 V6 TSI Hybrid, 3.2 V6, 3.6 V6 FSI, 4.2 V8, 4.2 V8 FSI, 4.2 V8 TDI …	Front/Rear	Brembo calipers; only in conjunction with steel brake discs
Volkswagen	Touareg 4MOTION	7L, 7P	2005–	3.0TDI diesel, 3.6L	Front

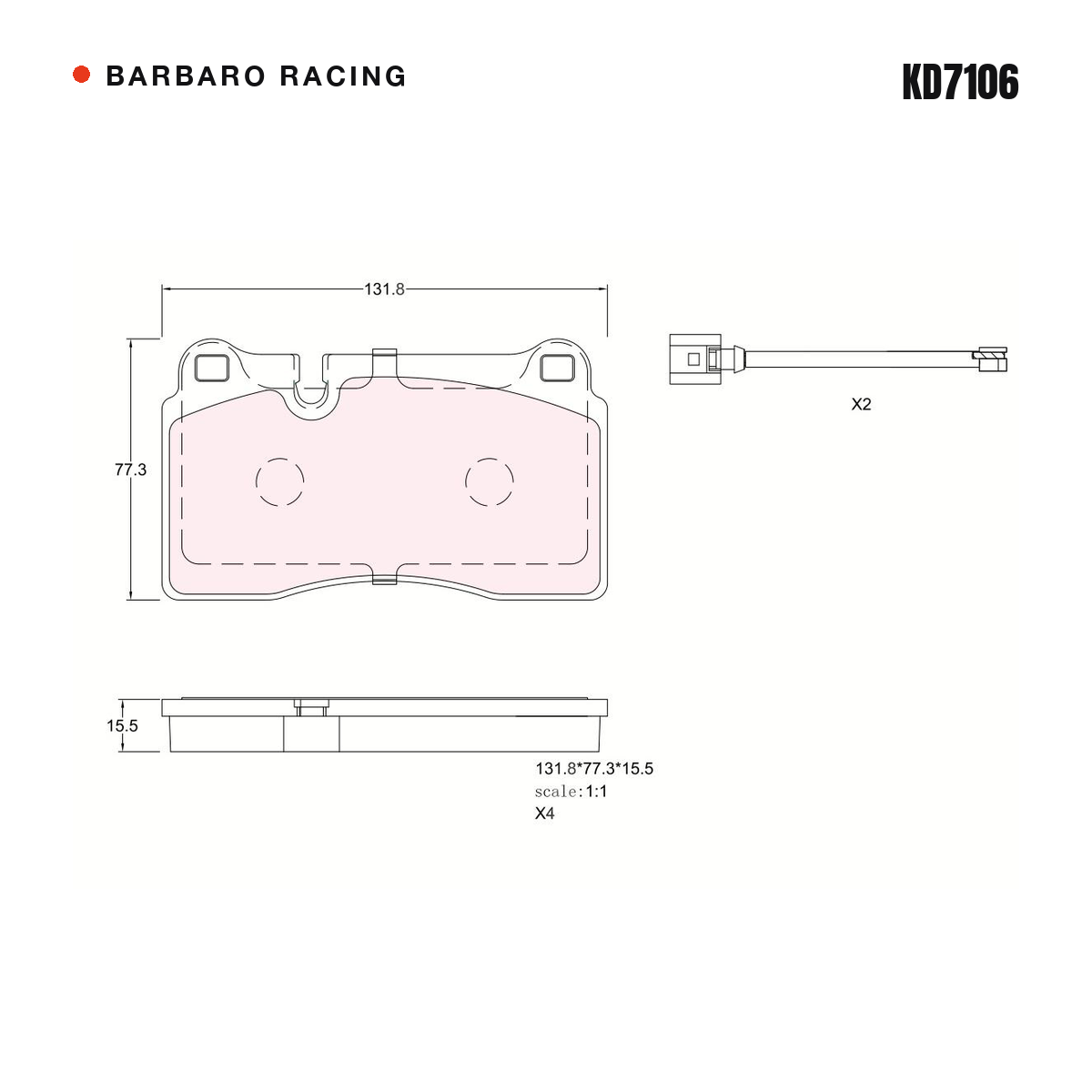

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSI	D1129, D1129-8238
TRW	GDB1670, GDB1670DTE
Brembo	P85110N, P85110
PAGID	T1499
Ferodo	FDB1877, FSL1625, FSL1877
Textar	TX0733, 2409801, 2409817104
Mintex	MDB2739
Bosch	0986TB2931, 0986494207, 986494207
ATE	604833, 13047048332, 13.0460-4833.2, 13046048372
Delphi	LP2012
Bendix	DB2228, 573296B
Jurid	573296JC, 573296J
Hella Pagid	8DB355011851
Icer	181789, 181788
Remsa	120000, 120030
WVA	24098
OE VW Group (VAG)	7L6698151E, 7L6698151G, 7L6698151J, 7P6698151C

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the CSI-01B compound

CSI-01B · The designated compound

The designated formula for short-fiber molded coated carbon-ceramic discs — built on the CSI-01 lineage dating to 2019. High performance and low noise, finally unified. And cold bite that Ferrari and Lamborghini carbon-ceramic systems have always lacked.

Temperature window: −30–600°C
Friction: μ 0.40–0.43
Noise rating: SAE J2521 AA
Disc: Carbon-ceramic
SAE J2521 noise rating AA — on unmodified bare pads
Friction rises with temperature — exceeding 1.0 μ in fade tests
2,000+ vehicles on road · fewer than 5 noise cases
Ideal for: Carbon-ceramic street cars, including Ferrari and Lamborghini CCB systems

CSI-01B full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.
