KD7106 RS-652 Brake Pads - Volkswagen Touareg

Barbaro Racing KD7106 RS-652 brake pads for Volkswagen Touareg, Aston Martin DB11, Ferrari 458 and Brembo F50 calipers. RS-652 is Barbaro's extreme hybrid race compound for steel and carbon-ceramic rotors (50–800°C, μ 0.49–0.57 on steel). Pad shape KD7106: 131.8 × 77.3 × 15.5 mm; interchanges with FMSI D1129, TRW GDB1670, Brembo P85110N.

Specifications

Barbaro part number	KD7106
Compound	RS-652
Barbaro factory code (SKU)	D71065N5
Axle	Front or rear, depending on where the caliper is fitted
Dimensions (L × H × T)	131.8 × 77.3 × 15.5 mm
Friction material height	60.6 mm
Supplied as	One axle set
Pad features	wide pad
Also available for KD7106	KD7106 C-01 Premium Street, KD7106 RS-635 Race Endurance, KD7106 CSI-01B Carbon-Ceramic

Caliper fitment

Caliper brand	Caliper	Details
Brembo	F50	wide pad, 60.7 mm friction face, wear-sensor provision, front or rear

Vehicle fitment

Make	Model	Chassis	Years	Engine / variant	Axle	Notes
Aston Martin	DB11				Rear
Ferrari	458				Rear
Volkswagen	Touareg	7LA, 7L6, 7L7, 7P5	2002–	2.5 R5 TDI, 3.0 TDI, 3.0 V6 TDI, 3.0 V6 TSI, 3.0 V6 TSI Hybrid, 3.2 V6, 3.6 V6 FSI, 4.2 V8, 4.2 V8 FSI, 4.2 V8 TDI …	Front/Rear	Brembo calipers; only in conjunction with steel brake discs
Volkswagen	Touareg 4MOTION	7L, 7P	2005–	3.0TDI diesel, 3.6L	Front

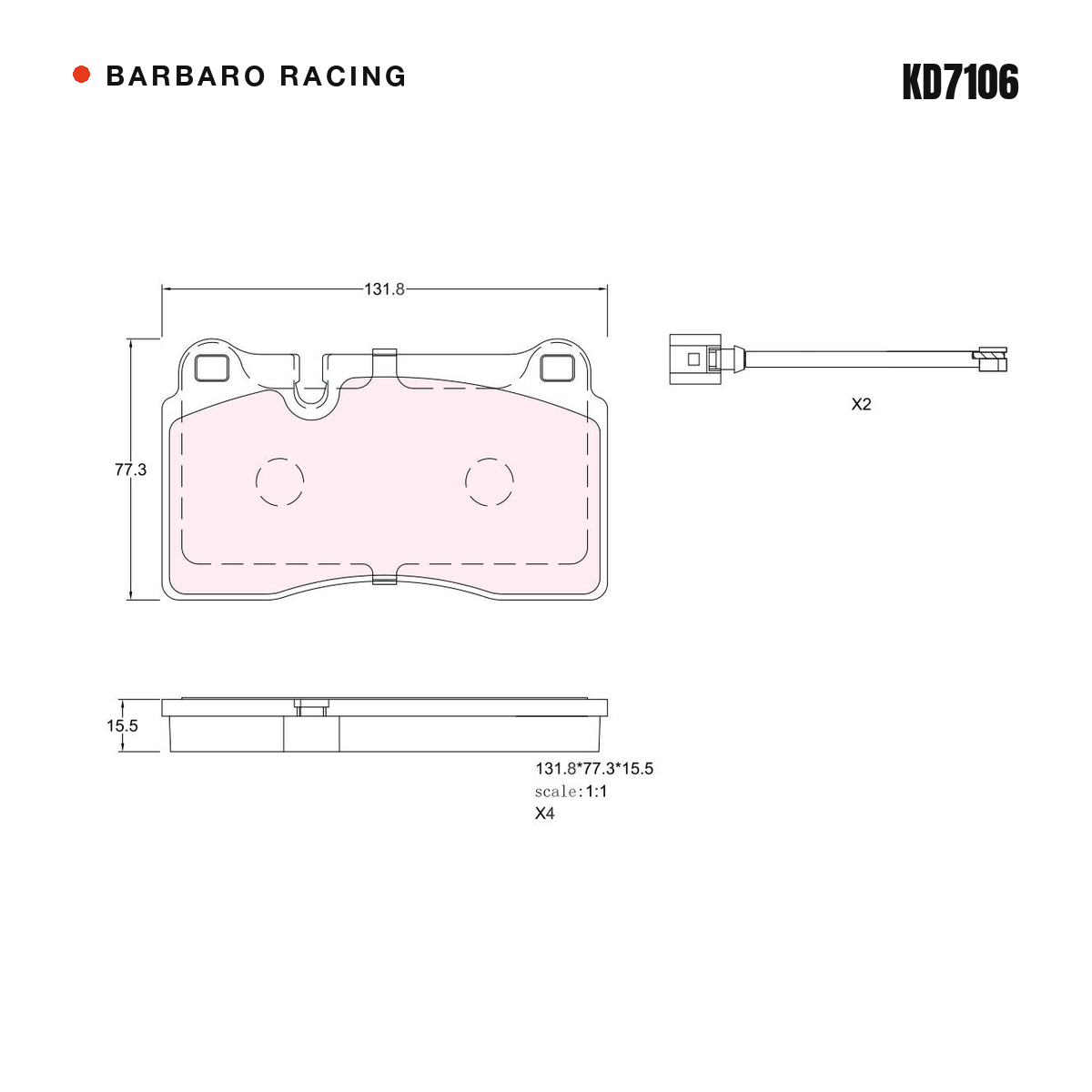

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSI	D1129, D1129-8238
TRW	GDB1670, GDB1670DTE
Brembo	P85110N, P85110
PAGID	T1499
Ferodo	FDB1877, FSL1625, FSL1877
Textar	TX0733, 2409801, 2409817104
Mintex	MDB2739
Bosch	0986TB2931, 0986494207, 986494207
ATE	604833, 13047048332, 13.0460-4833.2, 13046048372
Delphi	LP2012
Bendix	DB2228, 573296B
Jurid	573296JC, 573296J
Hella Pagid	8DB355011851
Icer	181789, 181788
Remsa	120000, 120030
WVA	24098
OE VW Group (VAG)	7L6698151E, 7L6698151G, 7L6698151J, 7P6698151C

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the RS-652 compound

RS-652 · The extreme hybrid

Seven years in the making. Endurance and sprint on both carbon-ceramic and steel rotors with zero fall-off, protected by a self-renewing 1–3 micron transfer film. Average friction 0.555 μ — measured beyond PAGID RSL1 (0.510) and Endless MA45B (0.438).

Temperature range: 50–800°C
Friction: μ 0.49–0.57 (steel); rising with temperature on CCB
Discs: Steel + carbon-ceramic
Lock threshold: 95 bar (RS-635: 65 bar)
+46.1% lock threshold — 95 bar vs 65 bar
On CCB, friction rises with temperature — 0.689 μ at 800°C
Disc wear 0.001 mm — 1/9 of RSL1, 1/18 of MA45B
Ideal for: TCR, GT and touring-car racing on steel or carbon-ceramic discs

RS-652 full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.
