Barbaro Racing KD7398 C-02 front brake pads for Porsche Panamera / Macan GTS / Cayenne / Macan turbo, Volkswagen Touareg 4MOTION and Brembo 19Z / 20Z calipers. C-02 is Barbaro's entry-level ceramic NAO street compound (550°C, μ 0.38–0.42) — minimal dust, minimal noise. Pad shape KD7398: 209.5 × 94.3 × 15.7 mm; interchanges with FMSI D1349, TRW GDB1774, Brembo P65017N.

Specifications

Barbaro part numberKD7398
CompoundC-02 — Ceramic NAO (contains copper)
Barbaro factory code (SKU)D73987UZ
AxleFront

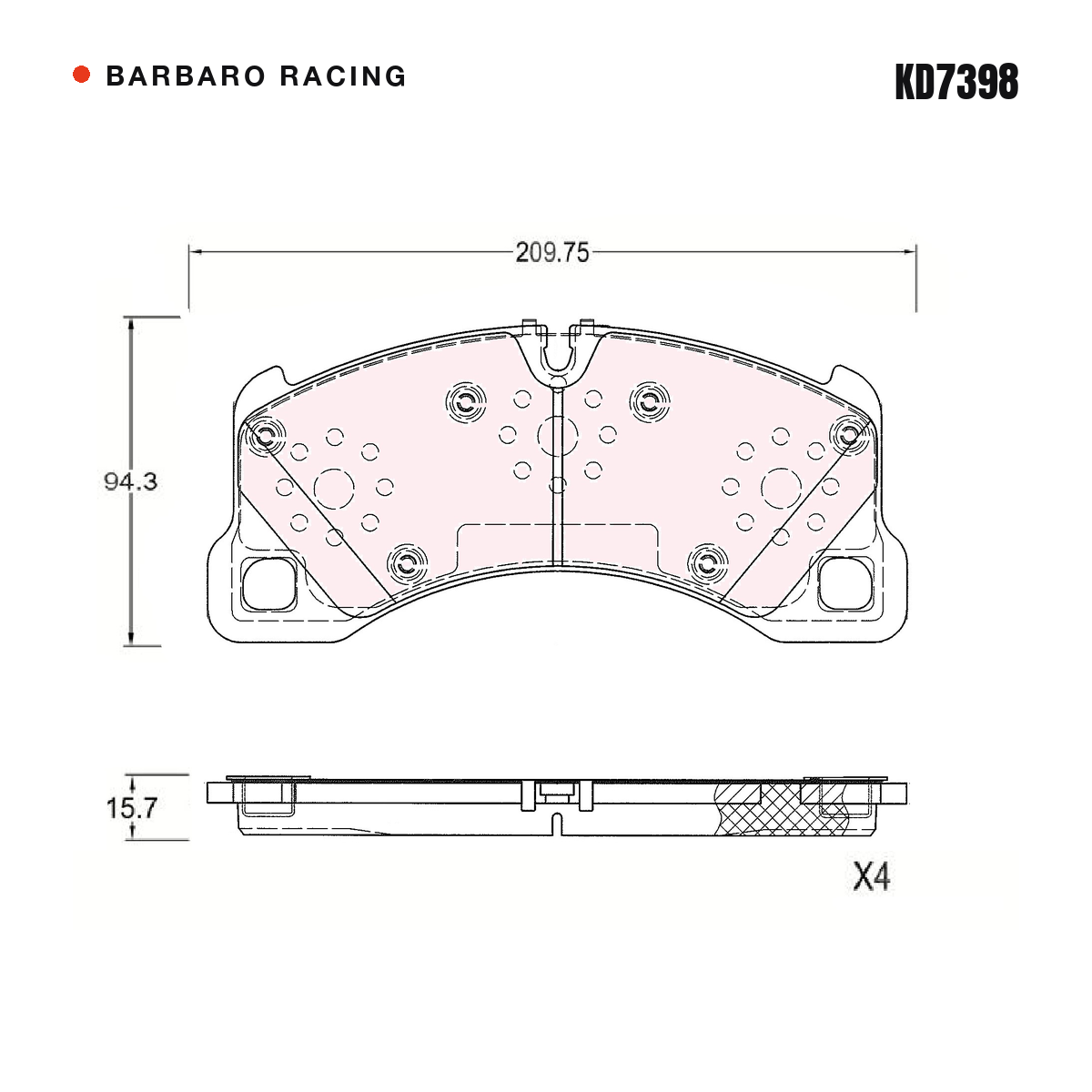

Dimensions (L × H × T)209.5 × 94.3 × 15.7 mm
Friction material height70 mm
Supplied asOne axle set
Pad featureswide pad
Also available for KD7398KD7398 C-01 Premium Street, KD7398 S-01 Street & Track, KD7398 RS-635 Race Endurance, KD7398 CSI-01B Carbon-Ceramic

Caliper fitment

Caliper brandCaliperDetails
Brembo19Z / 20Zwide pad, 70 mm friction face

Vehicle fitment

MakeModelChassisYearsEngine / variantNotes
PorscheCayenne92A, 9PA, 9552002–3.0TDI diesel, Turbo 4.5, Turbo S, Turbo S 4.5, Turbo S 4.8, 4.5 (M48.50S), 4.5 (M48.50), 4.8 (M48.51), 3.0 Diesel, 3.0 S …Brembo calipers; only in conjunction with steel brake discs
PorscheCayenne GTS92A2011–20173.6T, 4.8L
PorscheCayenne S92A2010–3.0T hybrid, 3.6T, 4.8L
PorscheCayenne S E-Hybrid92A2014–3.0T plug-in hybrid
PorscheCayenne Turbo92A, 9PA2006–20174.8T
PorscheCayenne Turbo S92A, 9PA2007–20174.8T
PorscheMacan GTS95B2015–3.0T
PorscheMacan turbo95B2013–3.6T
PorschePanamera9702009–3.0T, 4.8 4S, 4.8 GTS, 4.8 S, 4.8 Turbo, 4.8 (M48.20), 4.8 (M48.40), 4.8 (M48.70), 3.0 D, 3.0 S E-Hybrid …Brembo calipers; only in conjunction with steel brake discs
PorschePanamera 49702010–20163.0T, 3.6L
PorschePanamera 4 E-Hybrid9712016–2.9T plug-in hybrid
PorschePanamera 4 E-Hybrid SportTurismo9712016–2.9T plug-in hybrid
PorschePanamera 4 SportTurismo9712016–2.9T, 3.0T
PorschePanamera 4S970, 9712010–3.0T, 4.8L, 2.9T
PorschePanamera 4S SportTurismo9712016–2.9T
PorschePanamera GTS970, 9712011–4.8L, 4.0T
PorschePanamera GTS SportTurismo9712018–4.0T
PorschePanamera S9702010–20163.0T, 4.8L
PorschePanamera S E-Hybrid9702013–3.0T plug-in hybrid
PorschePanamera S Hybrid9702011–20133.0T hybrid
PorschePanamera Turbo970, 9712010–4.8T, 4.0T
PorschePanamera Turbo S9702011–4.8T
PorschePanamera Turbo SportTurismo9712016–4.0T
VolkswagenTouareg7LA, 7L6, 7L7, 7P52004–3.0 V6 TDI, 4.2 V8 FSI, 5.0 R50 TDI, 6.0 W12, 4.2 (BAR), 6.0 (BJN), 6.0 (CFRA), 3.0 diesel (BKS), 3.0 diesel (CATA), 5.0 diesel (CBWA) …Brembo calipers; only in conjunction with steel brake discs
VolkswagenTouareg 4MOTION7P2010–3.0T, 3.0T hybrid, 4.2L

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSID1349, D1577, D1557, D1349-8459, D1349-8641, D1349-8786, D1349-8851, D1349-8860, D1577-8790
TRWGDB1774, GDB1774DTE
BremboP65017N, P65017, P65021
PAGIDT1797, T1798, T1626, T2056
FerodoFDB4064
TextarTX0839, 2455301, 2429516104, 2455303, 2455316104, 2500701, 2429501
MintexMDB2987, MDB2833, MDB3075, MDB3157
Bosch986494206, 0986494206, 0986TB3087
ATE13046048522
DelphiLP2117
Bendix573329B
Jurid573329JC, 573329J
Hella Pagid8DB355012641, 355014151, 355014141, 8DB355014141, 8DB355014151, 8DB355015801
Icer181921
Remsa134500
WVA24553
OE Porsche95535193963, 97035194802, 95535193961, 95535193962, 95535193970, 95835193900, 95835193970, 95535193960, 97035194901
OE VW Group (VAG)7L0698151N, 7L0698151M, 7P0698151C, 7P0698151B, 7L0698151K, 7L0698151L

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the C-02 compound

C-02 · Silent city companion

Entry-level ceramic NAO formula developed for noise, wear and heat resistance. Minimal dust, minimal noise, dependable everyday performance — a favourite in hot, arid climates and the Middle East market.

  • Temperature rating: 550°C
  • Friction: μ 0.38–0.42
  • Formula: Ceramic NAO (contains copper)
  • Ultra-low dust output (9/10)
  • Excellent noise performance (9/10)
  • Superior wear resistance (8/10)
  • Ideal for: Daily commuting in city SUVs and sedans; hot, arid climates

C-02 full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.

  • Porsche Panamera Turbo SportTurismo (971) 4.0T (2016-)
  • Porsche Panamera 4S SportTurismo (971) 2.9T (2016-)
  • Porsche Panamera GTS (970, 971) 4.8L, 4.0T (2011-)
  • Porsche Panamera GTS SportTurismo (971) 4.0T (2018-)
  • Porsche Panamera S (970) 3.0T, 4.8L (2010-2016)
  • Porsche Panamera S E-Hybrid (970) 3.0T plug-in hybrid (2013-)
  • Porsche Panamera S Hybrid (970) 3.0T hybrid (2011-2013)
  • Porsche Panamera Turbo (970, 971) 4.8T, 4.0T (2010-)
  • Porsche Panamera Turbo S (970) 4.8T (2011-)
  • Porsche Panamera 4S (970, 971) 3.0T, 4.8L, 2.9T (2010-)
  • Volkswagen Touareg (7LA, 7L6, 7L7, 7P5) (2004-)
  • Ferodo FDB4064 All
  • Mintex MDB2987 All
  • Mintex MDB3075 All
  • Mintex MDB3157 All
  • Pagid T1626 All
  • Pagid T1798 All
  • Pagid T2056 All
  • Porsche Cayenne Turbo (92A, 9PA) 4.8T (2006-2017)
  • Mintex MDB2833 All
  • Porsche Cayenne GTS (92A) 3.6T, 4.8L (2011-2017)
  • Porsche Cayenne S (92A) 3.0T hybrid, 3.6T, 4.8L (2010-)
  • Porsche Cayenne S E-Hybrid (92A) 3.0T plug-in hybrid (2014-)
  • Volkswagen Touareg 4MOTION (7P) 3.0T, 3.0T hybrid, 4.2L (2010-)
  • Pagid T1797 All
  • Porsche Cayenne (92A, 9PA, 955) 3.0 / 3.6 / 4.2 / 4.5 / 4.8 (2002-)
  • Porsche Cayenne Turbo S (92A, 9PA) 4.8T (2007-2017)
  • Porsche Macan GTS (95B) 3.0T (2015-)
  • Porsche Macan turbo (95B) 3.6T (2013-)
  • Porsche Panamera (970) 3.0 / 3.6 / 4.8, diesel, hybrid, Turbo (2009-)
  • Porsche Panamera 4 (970) 3.0T, 3.6L (2010-2016)
  • Porsche Panamera 4 E-Hybrid (971) 2.9T plug-in hybrid (2016-)
  • Porsche Panamera 4 E-Hybrid SportTurismo (971) 2.9T plug-in hybrid (2016-)
  • Porsche Panamera 4 SportTurismo (971) 2.9T, 3.0T (2016-)
