Barbaro Racing KD7398 CSI-01B front brake pads for Porsche Panamera / Macan GTS / Cayenne / Macan turbo, Volkswagen Touareg 4MOTION and Brembo 19Z / 20Z calipers. CSI-01B is Barbaro's designated carbon-ceramic disc compound (−30–600°C, μ 0.40–0.43, SAE J2521 AA noise rating). Pad shape KD7398: 209.5 × 94.3 × 15.7 mm; interchanges with FMSI D1349, TRW GDB1774, Brembo P65017N.

Specifications

Barbaro part numberKD7398
CompoundCSI-01B
Barbaro factory code (SKU)D73985N6
AxleFront

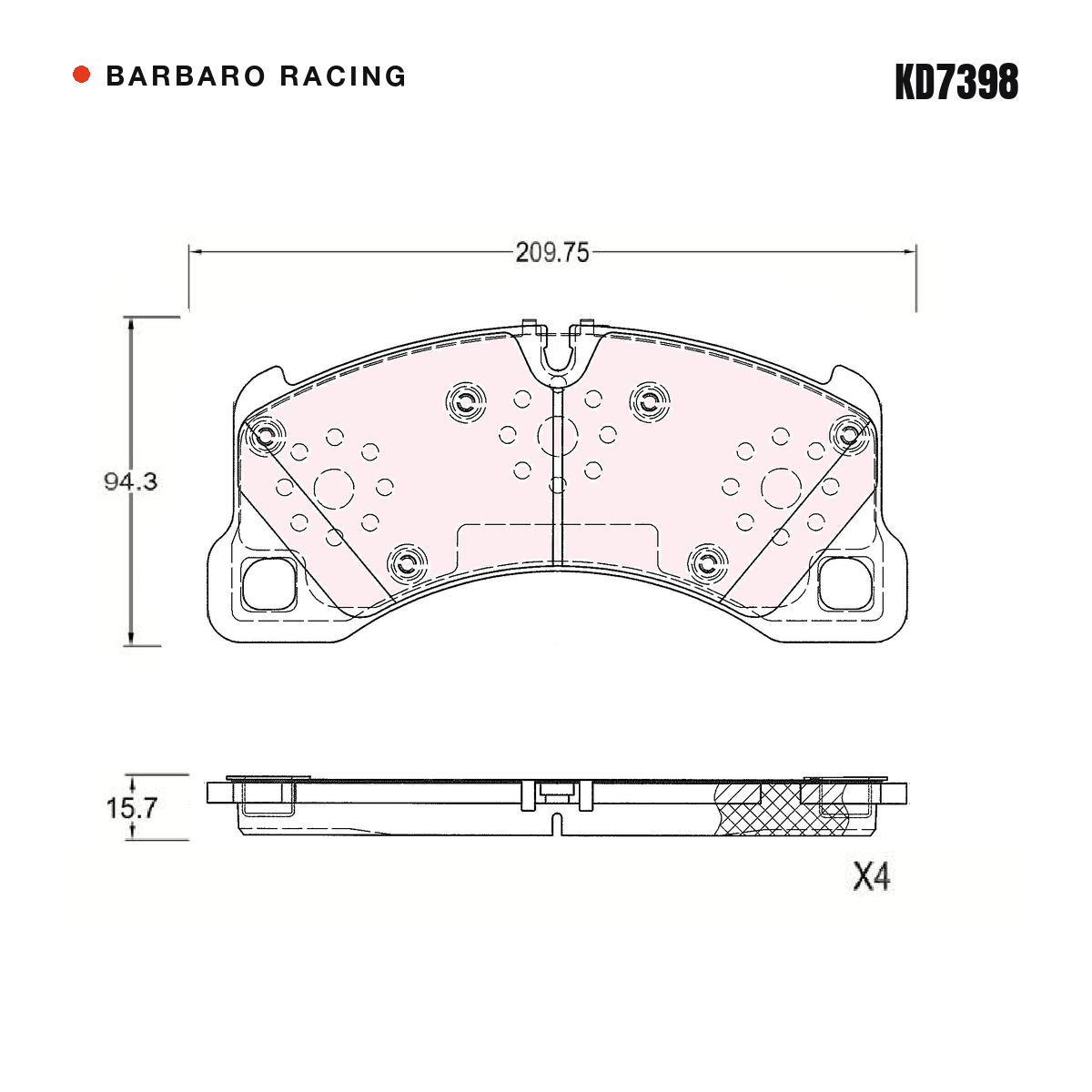

Dimensions (L × H × T)209.5 × 94.3 × 15.7 mm
Friction material height70 mm
Supplied asOne axle set
Pad featureswide pad
Also available for KD7398KD7398 C-02 Silent City, KD7398 C-01 Premium Street, KD7398 S-01 Street & Track, KD7398 RS-635 Race Endurance

Caliper fitment

Caliper brandCaliperDetails
Brembo19Z / 20Zwide pad, 70 mm friction face

Vehicle fitment

MakeModelChassisYearsEngine / variantNotes
PorscheCayenne92A, 9PA, 9552002–3.0TDI diesel, Turbo 4.5, Turbo S, Turbo S 4.5, Turbo S 4.8, 4.5 (M48.50S), 4.5 (M48.50), 4.8 (M48.51), 3.0 Diesel, 3.0 S …Brembo calipers; only in conjunction with steel brake discs
PorscheCayenne GTS92A2011–20173.6T, 4.8L
PorscheCayenne S92A2010–3.0T hybrid, 3.6T, 4.8L
PorscheCayenne S E-Hybrid92A2014–3.0T plug-in hybrid
PorscheCayenne Turbo92A, 9PA2006–20174.8T
PorscheCayenne Turbo S92A, 9PA2007–20174.8T
PorscheMacan GTS95B2015–3.0T
PorscheMacan turbo95B2013–3.6T
PorschePanamera9702009–3.0T, 4.8 4S, 4.8 GTS, 4.8 S, 4.8 Turbo, 4.8 (M48.20), 4.8 (M48.40), 4.8 (M48.70), 3.0 D, 3.0 S E-Hybrid …Brembo calipers; only in conjunction with steel brake discs
PorschePanamera 49702010–20163.0T, 3.6L
PorschePanamera 4 E-Hybrid9712016–2.9T plug-in hybrid
PorschePanamera 4 E-Hybrid SportTurismo9712016–2.9T plug-in hybrid
PorschePanamera 4 SportTurismo9712016–2.9T, 3.0T
PorschePanamera 4S970, 9712010–3.0T, 4.8L, 2.9T
PorschePanamera 4S SportTurismo9712016–2.9T
PorschePanamera GTS970, 9712011–4.8L, 4.0T
PorschePanamera GTS SportTurismo9712018–4.0T
PorschePanamera S9702010–20163.0T, 4.8L
PorschePanamera S E-Hybrid9702013–3.0T plug-in hybrid
PorschePanamera S Hybrid9702011–20133.0T hybrid
PorschePanamera Turbo970, 9712010–4.8T, 4.0T
PorschePanamera Turbo S9702011–4.8T
PorschePanamera Turbo SportTurismo9712016–4.0T
VolkswagenTouareg7LA, 7L6, 7L7, 7P52004–3.0 V6 TDI, 4.2 V8 FSI, 5.0 R50 TDI, 6.0 W12, 4.2 (BAR), 6.0 (BJN), 6.0 (CFRA), 3.0 diesel (BKS), 3.0 diesel (CATA), 5.0 diesel (CBWA) …Brembo calipers; only in conjunction with steel brake discs
VolkswagenTouareg 4MOTION7P2010–3.0T, 3.0T hybrid, 4.2L

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSID1349, D1577, D1557, D1349-8459, D1349-8641, D1349-8786, D1349-8851, D1349-8860, D1577-8790
TRWGDB1774, GDB1774DTE
BremboP65017N, P65017, P65021
PAGIDT1797, T1798, T1626, T2056
FerodoFDB4064
TextarTX0839, 2455301, 2429516104, 2455303, 2455316104, 2500701, 2429501
MintexMDB2987, MDB2833, MDB3075, MDB3157
Bosch986494206, 0986494206, 0986TB3087
ATE13046048522
DelphiLP2117
Bendix573329B
Jurid573329JC, 573329J
Hella Pagid8DB355012641, 355014151, 355014141, 8DB355014141, 8DB355014151, 8DB355015801
Icer181921
Remsa134500
WVA24553
OE Porsche95535193963, 97035194802, 95535193961, 95535193962, 95535193970, 95835193900, 95835193970, 95535193960, 97035194901
OE VW Group (VAG)7L0698151N, 7L0698151M, 7P0698151C, 7P0698151B, 7L0698151K, 7L0698151L

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the CSI-01B compound

CSI-01B · The designated compound

The designated formula for short-fiber molded coated carbon-ceramic discs — built on the CSI-01 lineage dating to 2019. High performance and low noise, finally unified. And cold bite that Ferrari and Lamborghini carbon-ceramic systems have always lacked.

  • Temperature window: −30–600°C
  • Friction: μ 0.40–0.43
  • Noise rating: SAE J2521 AA
  • Disc: Carbon-ceramic
  • SAE J2521 noise rating AA — on unmodified bare pads
  • Friction rises with temperature — exceeding 1.0 μ in fade tests
  • 2,000+ vehicles on road · fewer than 5 noise cases
  • Ideal for: Carbon-ceramic street cars, including Ferrari and Lamborghini CCB systems

CSI-01B full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.

  • Porsche Panamera Turbo SportTurismo (971) 4.0T (2016-)
  • Porsche Panamera 4S SportTurismo (971) 2.9T (2016-)
  • Porsche Panamera GTS (970, 971) 4.8L, 4.0T (2011-)
  • Porsche Panamera GTS SportTurismo (971) 4.0T (2018-)
  • Porsche Panamera S (970) 3.0T, 4.8L (2010-2016)
  • Porsche Panamera S E-Hybrid (970) 3.0T plug-in hybrid (2013-)
  • Porsche Panamera S Hybrid (970) 3.0T hybrid (2011-2013)
  • Porsche Panamera Turbo (970, 971) 4.8T, 4.0T (2010-)
  • Porsche Panamera Turbo S (970) 4.8T (2011-)
  • Porsche Panamera 4S (970, 971) 3.0T, 4.8L, 2.9T (2010-)
  • Volkswagen Touareg (7LA, 7L6, 7L7, 7P5) (2004-)
  • Ferodo FDB4064 All
  • Mintex MDB2987 All
  • Mintex MDB3075 All
  • Mintex MDB3157 All
  • Pagid T1626 All
  • Pagid T1798 All
  • Pagid T2056 All
  • Porsche Cayenne Turbo (92A, 9PA) 4.8T (2006-2017)
  • Mintex MDB2833 All
  • Porsche Cayenne GTS (92A) 3.6T, 4.8L (2011-2017)
  • Porsche Cayenne S (92A) 3.0T hybrid, 3.6T, 4.8L (2010-)
  • Porsche Cayenne S E-Hybrid (92A) 3.0T plug-in hybrid (2014-)
  • Volkswagen Touareg 4MOTION (7P) 3.0T, 3.0T hybrid, 4.2L (2010-)
  • Pagid T1797 All
  • Porsche Cayenne (92A, 9PA, 955) 3.0 / 3.6 / 4.2 / 4.5 / 4.8 (2002-)
  • Porsche Cayenne Turbo S (92A, 9PA) 4.8T (2007-2017)
  • Porsche Macan GTS (95B) 3.0T (2015-)
  • Porsche Macan turbo (95B) 3.6T (2013-)
  • Porsche Panamera (970) 3.0 / 3.6 / 4.8, diesel, hybrid, Turbo (2009-)
  • Porsche Panamera 4 (970) 3.0T, 3.6L (2010-2016)
  • Porsche Panamera 4 E-Hybrid (971) 2.9T plug-in hybrid (2016-)
  • Porsche Panamera 4 E-Hybrid SportTurismo (971) 2.9T plug-in hybrid (2016-)
  • Porsche Panamera 4 SportTurismo (971) 2.9T, 3.0T (2016-)
SKU D73985N6
Brand Barbaro Racing
Unit Of Measure EA
