KD7570 C-01 Front Brake Pads - Audi Q7

Barbaro Racing KD7570 C-01 front brake pads for Audi Q7, Porsche Cayenne, Volkswagen Touareg 4MOTION and Brembo 18Z calipers. C-01 is Barbaro's premium copper-free low-metallic street compound (550°C, μ 0.40–0.48). Pad shape KD7570: 190 × 106.8 × 15.4 mm; interchanges with FMSI D977, TRW GDB1548, Brembo P85065N.

Specifications

Barbaro part number	KD7570
Compound	C-01 — Copper-free low-metallic
Barbaro factory code (SKU)	D75703UZ
Axle	Front
Dimensions (L × H × T)	190 × 106.8 × 15.4 mm
Friction material height	64.5 mm
Supplied as	One axle set
Pad features	wide pad
Also available for KD7570	KD7570 S-01 Street & Track

Caliper fitment

Caliper brand	Caliper	Details
Brembo	18Z	D64.5

Vehicle fitment

Make	Model	Chassis	Years	Engine / variant	Notes
Audi	Q7	4L	2006–2016	3.0T, 3.0T(35 TFSI), 3.0T(40 TFSI), 3.0TDI(35TDI) diesel, 3.0TDI diesel, 4.2TDI diesel, 6.0TDI diesel, 3.0 TDI, 3.0 TFSI, 3.6 FSI …	only in conjunction with steel brake discs; Brembo calipers
Porsche	Cayenne	9PA, 955	2002–2010	S, S 4.5, S 4.8, Turbo 4.5, Turbo S, Turbo S 4.5, Turbo S 4.8, 3.2 (M02.2Y), 4.5 (M48.00), 4.8 (M48.01) …	only in conjunction with steel brake discs; Brembo calipers
Porsche	Cayenne GTS	9PA	2006–2010	4.8L
Porsche	Cayenne S	9PA	2003–2010	4.5L, 4.8L
Porsche	Cayenne Turbo	9PA	2003–2007	4.5T
Volkswagen	Touareg	7LA, 7L6, 7L7	2002–2010	3.6 V6 FSI, 4.2 V8, 4.2 V8 FSI, 5.0 R50 TDI, 5.0 V10 TDI, 6.0 W12, 4.2 (AXQ), 4.2 (BHX), 5.0 diesel (AYH), 5.0 diesel (BLE) …	only in conjunction with steel brake discs; Brembo calipers
Volkswagen	Touareg 4MOTION	7L	2002–2010	4.2L, 6.0L

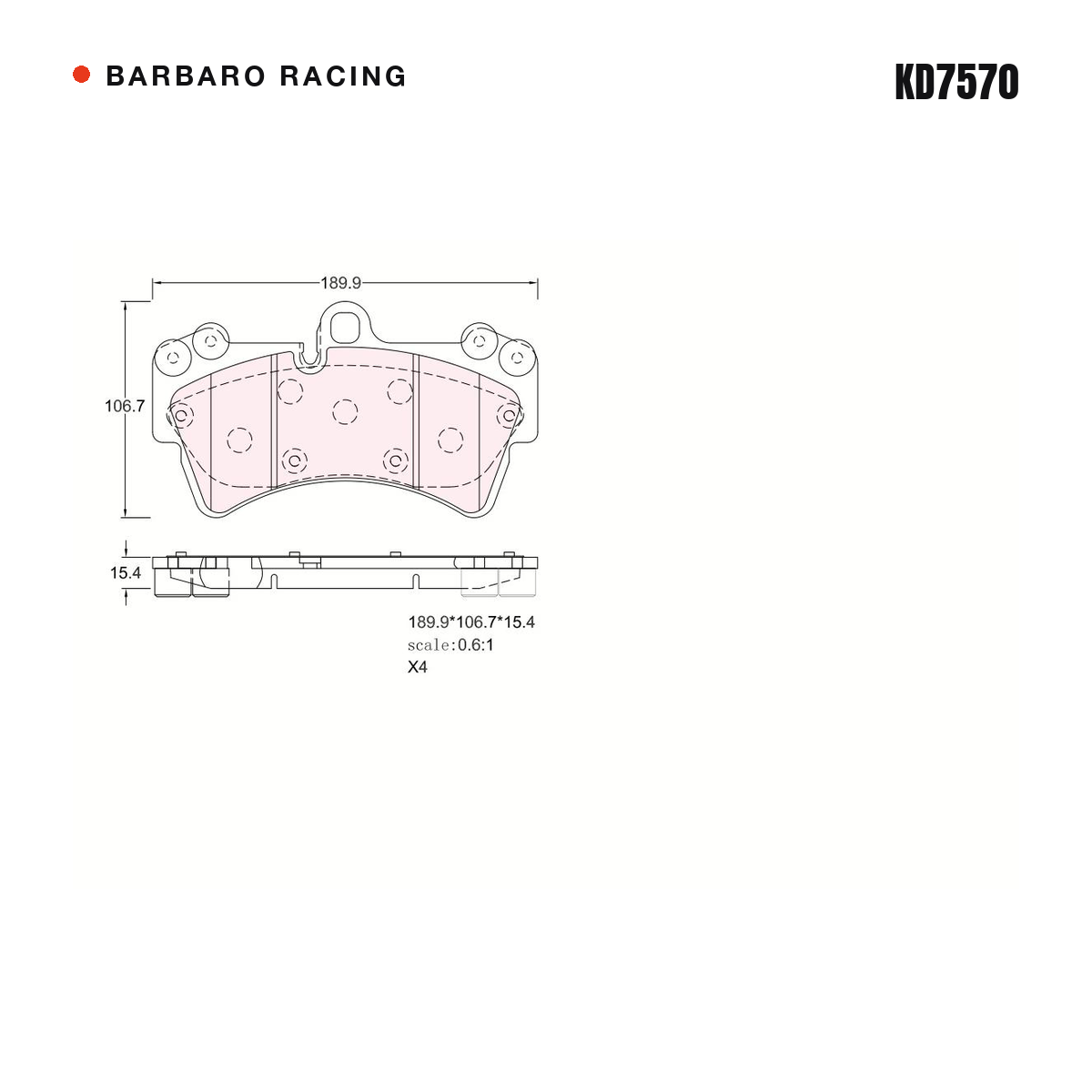

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSI	D977, D1014, D1014-8366, D977-7878
TRW	GDB1548, GDB1548DTE
Brembo	P85065N, P85065
PAGID	T5148
Ferodo	FSL1626, FDB1626
Textar	2369316704, 2369316204, 2369302, 2369381, TX0628
Mintex	MDB2751, MDB2752
Bosch	0986424739, 0986TB2455, BP448, 986424739
ATE	13047049932, 13046049932, 604993, LD4993
Delphi	T5148, LP1997, 2369316204, 2369316704, LP1998
Bendix	573282B, 573282
Jurid	573282J, 573282JC
Hella Pagid	8DB355018691
Icer	181595
Remsa	099500, 99500
WVA	23693
OE Porsche	95535193913, 95535193914, 95535193910, 95535193911, 95535193915, 95535193912, 95535193916
OE VW Group (VAG)	7L6698151A, 7L6698151D, 7L0698151R, 4L0698151C, 7L0698151G, 7L0698151J, 7L0698151E, 7L0698151P, 7L0698151A, 7L0698151C, 7L0698451B

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the C-01 compound

C-01 · Premium street performance

Premium copper-free low-metallic formula — asbestos-free, developed for noise, heat resistance and braking performance. Excellent in both braking and refinement, meeting EU and US environmental standards.

Temperature rating: 550°C
Friction: μ 0.40–0.48
Formula: Copper-free low-metallic
Standard: EU & US environmental standards
Best-in-class noise performance (9/10)
Exceptional brake linearity (9/10)
Copper-free & asbestos-free formula
Ideal for: City + highway driving; coupes, sport sedans and city SUVs

C-01 full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.
