Barbaro Racing KD7624 CSI-01B front brake pads for Audi Q7 / S5 / A8L / RS5 / RS4 / S4 / Q8 / A7 / A6L, Volkswagen Touareg 4MOTION and Akebono 7N / 8N calipers. CSI-01B is Barbaro's designated carbon-ceramic disc compound (−30–600°C, μ 0.40–0.43, SAE J2521 AA noise rating). Pad shape KD7624: 194.3 × 74.1 × 15.8 mm; interchanges with FMSI D1894.

Specifications

Barbaro part numberKD7624
CompoundCSI-01B
Barbaro factory code (SKU)D76245N6
AxleFront
Dimensions (L × H × T)194.3 × 74.1 × 15.8 mm
Friction material height59 mm
Supplied asOne axle set
Also available for KD7624KD7624 C-02 Silent City, KD7624 C-01 Premium Street, KD7624 S-01 Street & Track, KD7624 RS-635 Race Endurance

Caliper fitment

Caliper brandCaliperDetails
Akebono7N / 8N67 mm friction face

Vehicle fitment

MakeModelChassisYearsEngine / variantNotes
AudiA74G9, 4KA2018–3.0T(55 TFSI)
AudiA8LD5, 4N2017–3.0T(50 TFSI), 3.0T(55 TFSI)
AudiQ74M2015–2.0T(40 TFSI), 2.0T(45 TFSI), 3.0T(45 TFSI), 3.0T(55 TFSI), 3.0TDI diesel, new model
AudiQ7 e-tron4M2016–2.0T plug-in hybrid
AudiQ84M2018–2.0T(45 TFSI), 3.0T(55 TFSI), 3.0TDI(50TDI) diesel, 48V mild hybrid
AudiRS4B9, 8W5, 8WD2017–2.9T
AudiRS5F53, F5P, F5A, F5F2018–2.9T
AudiS4B9, 8W2, 8WC2017–3.0T
AudiS5F57, F5E, F53, F5P, F5A, F5F2017–3.0T
AudiA6L (China · FAW-VW Audi)C8, 4882018–2.0T(55TFSI e) plug-in hybrid, 3.0T(55 TFSI)
VolkswagenTouareg 4MOTIONCR72018–2.0T, 3.0T

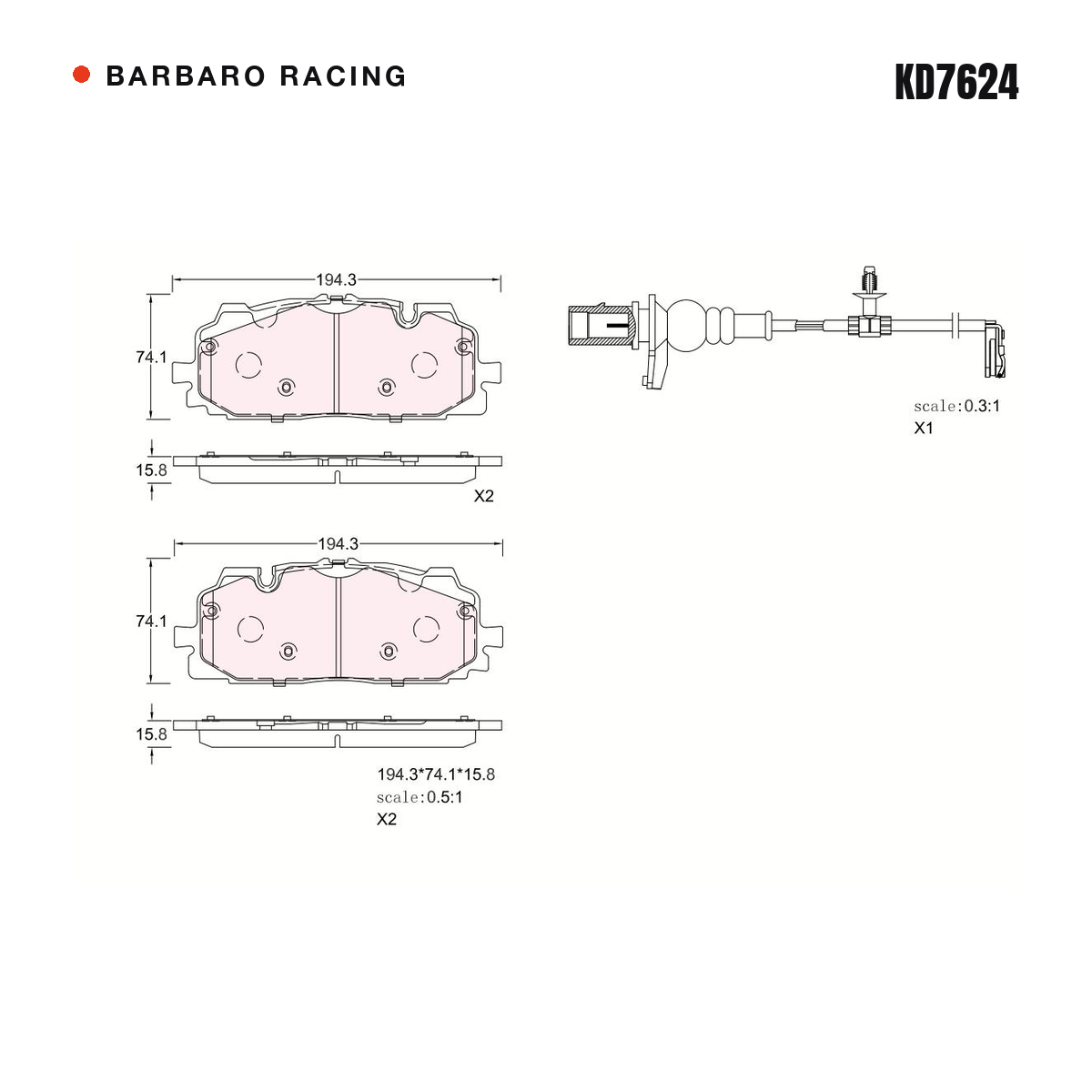

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSID1894

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the CSI-01B compound

CSI-01B · The designated compound

The designated formula for short-fiber molded coated carbon-ceramic discs — built on the CSI-01 lineage dating to 2019. High performance and low noise, finally unified. And cold bite that Ferrari and Lamborghini carbon-ceramic systems have always lacked.

  • Temperature window: −30–600°C
  • Friction: μ 0.40–0.43
  • Noise rating: SAE J2521 AA
  • Disc: Carbon-ceramic
  • SAE J2521 noise rating AA — on unmodified bare pads
  • Friction rises with temperature — exceeding 1.0 μ in fade tests
  • 2,000+ vehicles on road · fewer than 5 noise cases
  • Ideal for: Carbon-ceramic street cars, including Ferrari and Lamborghini CCB systems

CSI-01B full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.

  • Audi A7 (4G9, 4KA) 3.0T(55 TFSI) (2018-)
  • Audi A8L (D5, 4N) 3.0T(50 TFSI), 3.0T(55 TFSI) (2017-)
  • Audi Q7 (4M) , diesel (2015-)
  • Audi Q7 e-tron (4M) 2.0T plug-in hybrid (2016-)
  • Audi Q8 (4M) , diesel, hybrid (2018-)
  • Audi RS4 (B9, 8W5, 8WD) 2.9T (2017-)
  • Audi RS5 (F53, F5P, F5A, F5F) 2.9T (2018-)
  • Audi S4 (B9, 8W2, 8WC) 3.0T (2017-)
  • Audi S5 (F57, F5E, F53, F5P, F5A, F5F) 3.0T (2017-)
  • Volkswagen Touareg 4MOTION (CR7) 2.0T, 3.0T (2018-)
SKU D76245N6
Brand Barbaro Racing
Unit Of Measure EA
