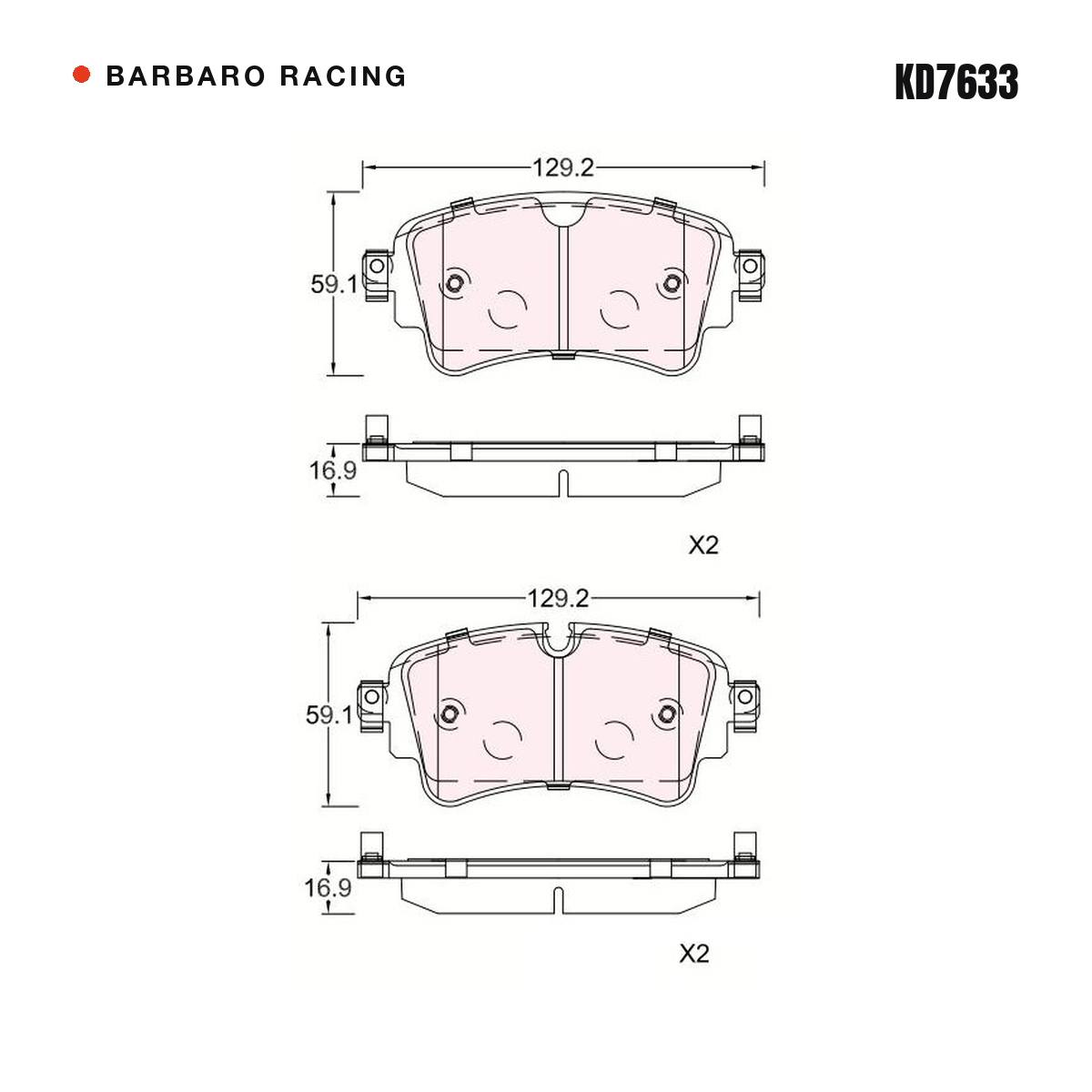

Barbaro Racing KD7633 CSI-01B rear brake pads for Audi A5 / S5 / A4 / Q5 / S4 / A7 / A8L / Q7 / A6L. CSI-01B is Barbaro's designated carbon-ceramic disc compound (−30–600°C, μ 0.40–0.43, SAE J2521 AA noise rating). Pad shape KD7633: 129.2 × 59.1 × 16.9 mm; interchanges with FMSI D1898-9126.

Specifications

Barbaro part numberKD7633
CompoundCSI-01B
Barbaro factory code (SKU)D76335N6
AxleRear
Dimensions (L × H × T)129.2 × 59.1 × 16.9 mm
Friction material height49 mm
Supplied asOne axle set
Also available for KD7633KD7633 C-01 Premium Street, KD7633 S-01 Street & Track

Vehicle fitment

MakeModelChassisYearsEngine / variantNotes
AudiA4B9, 8W5, 8WD, 8WH, 8WJ2016–2.0T(40 TFSI), allroad quattro
AudiA4 allroadB9, 8WH, 8WJ2016–2.0T(45 TFSI)
AudiA5F57, F5E, F53, F5P, F5A, F5F2017–2.0T(40 TFSI)
AudiA74G9, 4KA2018–3.0T(55 TFSI), 2.0T(40 TFSI), 2.0T(45 TFSI)
AudiA8LD5, 4N2018–3.0T(50 TFSI)
AudiQ5FY2017–2.0T
AudiQ74M2017–3.0TDI diesel
AudiS4B9, 8W2, 8WC2017–3.0T
AudiS5F57, F5E, F53, F5P, F5A, F5F2017–3.0T
AudiA4L (China · FAW-VW Audi)B9, 8682016–2.0T(40 TFSI), 1.4T(30 TFSI), 1.4T(35 TFSI), 2.0T(35 TFSI), 2.0T(45 TFSI)
AudiA6L (China · FAW-VW Audi)C8, 4882018–2.0T(55TFSI e) plug-in hybrid, 3.0T(55 TFSI), 2.0T(45 TFSI), 2.0T(40 TFSI)
AudiA6L (China · FAW Audi)C82018–45TFSI, 2.0T
AudiQ5L (China · FAW-VW Audi)FY, 87I2017–2.0T(40 TFSI), 2.0T(45 TFSI)

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSID1898-9126, D1898

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the CSI-01B compound

CSI-01B · The designated compound

The designated formula for short-fiber molded coated carbon-ceramic discs — built on the CSI-01 lineage dating to 2019. High performance and low noise, finally unified. And cold bite that Ferrari and Lamborghini carbon-ceramic systems have always lacked.

  • Temperature window: −30–600°C
  • Friction: μ 0.40–0.43
  • Noise rating: SAE J2521 AA
  • Disc: Carbon-ceramic
  • SAE J2521 noise rating AA — on unmodified bare pads
  • Friction rises with temperature — exceeding 1.0 μ in fade tests
  • 2,000+ vehicles on road · fewer than 5 noise cases
  • Ideal for: Carbon-ceramic street cars, including Ferrari and Lamborghini CCB systems

CSI-01B full specifications on barbaro-racing.com

About Barbaro Racing

Barbaro Racing (野蛮人) is the performance brand of the CAC Racing Division — proprietary compounds developed entirely in-house. Development begins on the dynamometer and ends on the circuit: every friction formula is bench-tested to destruction before earning the right to carry the Barbaro name. All compounds are validated against GB5763-2018 national standards; Street Series compounds are asbestos-free.

  • Audi S4 (B9, 8W2, 8WC) 3.0T (2017-)
  • Audi S5 (F57, F5E, F53, F5P, F5A, F5F) 3.0T (2017-)
  • Audi A5 (F57, F5E, F53, F5P, F5A, F5F) 2.0T(40 TFSI) (2017-)
  • Audi A4 (B9, 8W5, 8WD, 8WH, 8WJ) (2016-)
  • Audi A4 allroad (B9, 8WH, 8WJ) 2.0T(45 TFSI) (2016-)
  • Audi A7 (4G9, 4KA) (2018-)
  • Audi A8L (D5, 4N) 3.0T(50 TFSI) (2018-)
  • Audi Q5 (FY) 2.0T (2017-)
  • Audi Q7 (4M) 3.0TDI diesel (2017-)
SKU D76335N6
Brand Barbaro Racing
Unit Of Measure EA
