KD7735 CSI-01B Front Brake Pads - Audi R8

Barbaro Racing KD7735 CSI-01B front brake pads for Audi R8 and Brembo GT8 / Audi R8 8-piston calipers. CSI-01B is Barbaro's designated carbon-ceramic disc compound (−30–600°C, μ 0.40–0.43, SAE J2521 AA noise rating). Pad shape KD7735: 97 × 74.2 × 16.4 mm; interchanges with FMSI D2099.

Specifications

Barbaro part number	KD7735
Compound	CSI-01B
Barbaro factory code (SKU)	D77355N6
Axle	Front
Dimensions (L × H × T)	97 × 74.2 × 16.4 mm

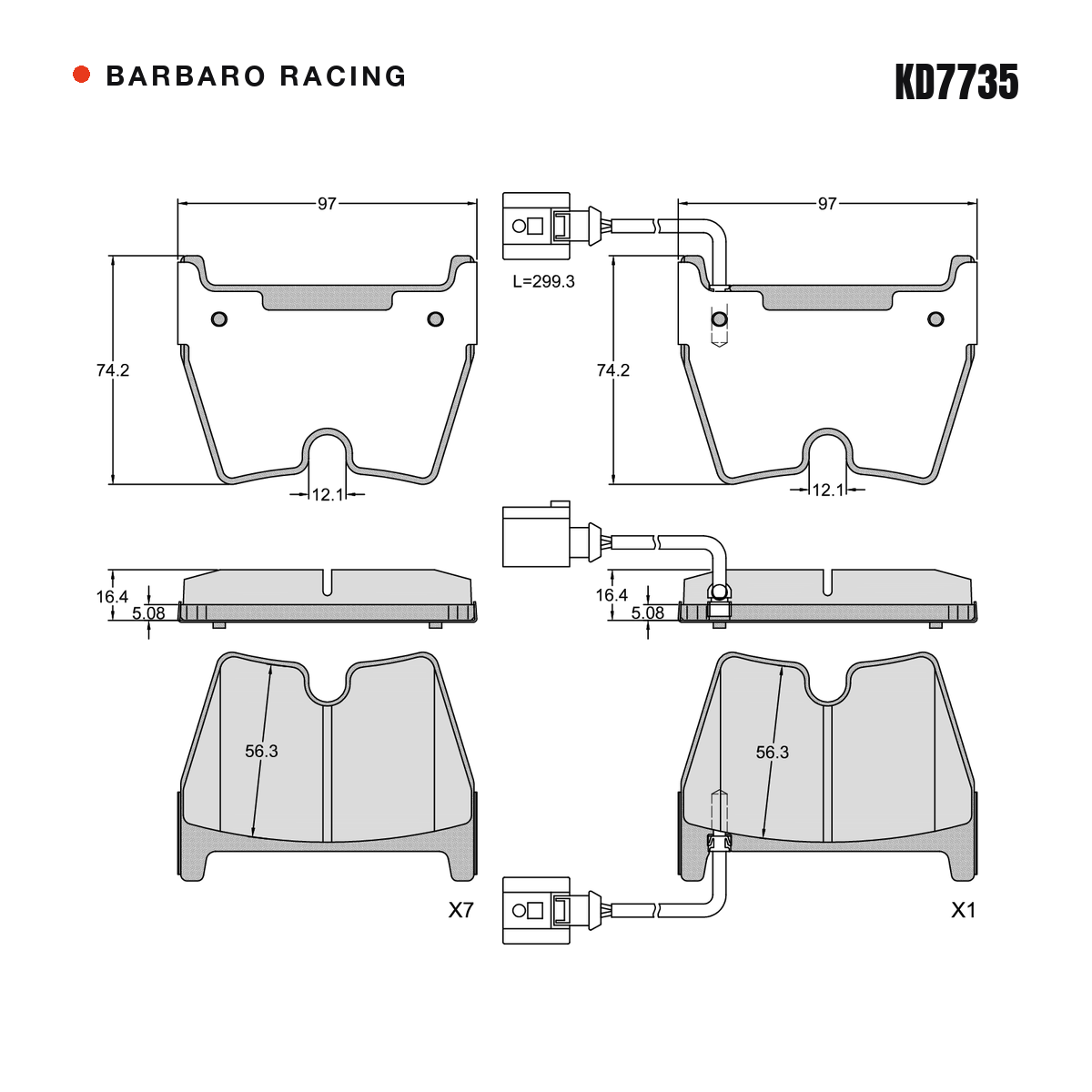

Drawing note	8-pad set: X7 plain + X1 with wear sensor wire (L=299.3), all 97 x 74.2 x 16.4; backing 5.08
Supplied as	One axle set
Pad features	wear-sensor provision; 8-piston caliper
Also available for KD7735	KD7735 S-01 Street & Track, KD7735 RS-635 Race Endurance

Caliper fitment

Caliper brand	Caliper	Details
Brembo	GT8 / Audi R8 8-piston	56 mm friction face

Vehicle fitment

Make	Model	Chassis	Years	Engine / variant	Notes
Audi	R8

Fitment is compiled from the Barbaro Racing application catalogue and Barbaro factory data, together with the vehicle listings of the interchange part numbers below. Brake packages can differ within one model — please compare your current pads with the dimensions and drawing, or send us your VIN, before ordering.

Cross-reference / interchange numbers

FMSI	D2099

Interchange numbers identify the matching pad shape. Friction material, shims and wear-sensor hardware can differ between brands.

About the CSI-01B compound

CSI-01B · The designated compound

The designated formula for short-fiber molded coated carbon-ceramic discs — built on the CSI-01 lineage dating to 2019. High performance and low noise, finally unified. And cold bite that Ferrari and Lamborghini carbon-ceramic systems have always lacked.

Temperature window: −30–600°C
Friction: μ 0.40–0.43
Noise rating: SAE J2521 AA
Disc: Carbon-ceramic
SAE J2521 noise rating AA — on unmodified bare pads
Friction rises with temperature — exceeding 1.0 μ in fade tests
2,000+ vehicles on road · fewer than 5 noise cases
Ideal for: Carbon-ceramic street cars, including Ferrari and Lamborghini CCB systems

CSI-01B full specifications on barbaro-racing.com
