Landcruiser 6-Piston Front Brake Upgrade

Key features and benefits:

Gains in performance over stock braking system:

Up to 4% reduction in disc temperature rise

Up to 26% reduction in pad work rate

Up to 7% increase in available brake torque

Up to 7% reduction in pedal effort

Ductile Iron caliper housing providing maximum strength and stiffness as well as high resistance to impact and fatigue Acid zinc finish for maximum corrosion protection High friction pads increase stopping power Large rotors increase brake torque and thermal capacity, allowing the vehicle to safely operate at armoured weights and reducing potential for brake fade Increased pad area reduces temperatures and increases pad life at armoured vehicle weights

Specifications:

• High temperature seal material Wiper seal on every piston for dirt exclusion
• Compatible with stock OEM actuation
• Fits many 17" & 18" OE and armoured specification wheels
• Discrete styling Bleed screws on in-board side only for maximum tamper-proof safety
• Pad push-back springs for optimum wear resistance off-road
• Caliper: 4 Piston Piston Size: 2 x 44.5mm/2 x 47.6mm
• Disc Size: 328x30mm
• Pad Material: Heavy Duty Usage:
• On and off-road Armoured up to 5,000kg

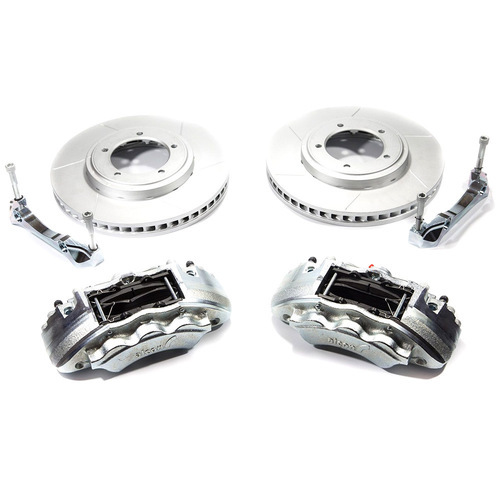

Kit Includes:

(2) Front calipers

(2) Front discs

(2) Brake caliper brackets w/bolts

(2) Brake Hoses

(1) Front pad set Vehicle

Fitment: 2015+ Toyota Hilux GGN125R (with OEM 319mm Disc) 2015+ Toyota Hilux GUN125R/GUN126R/GUN136R (with OEM 319mm Disc)
