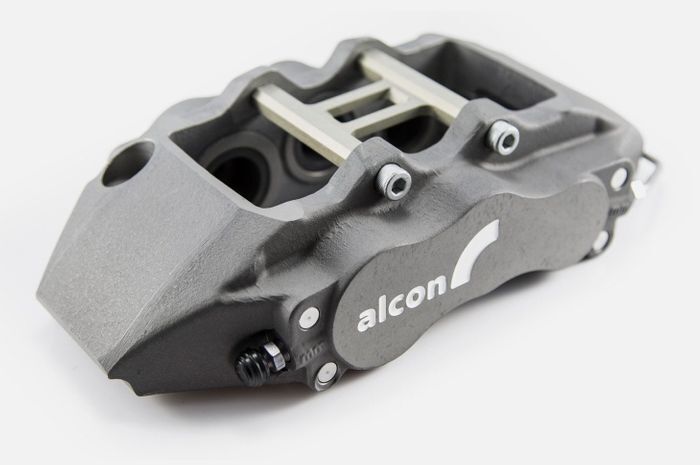

Key features & benefits

• Radial mount for maximum rigidity and firm,
• consistent pedal Differential piston diameters to minimise pad taper wear
• Aluminium pistons as standard,
• stainless steel pistons available as an option to reduce heat transfer to brake fluid
• 2kg anti-knock back springs
• Hard stainless steel wear plates
• Hard stainless steel pad support and abutment pins
• Fixed pad retainer bars to increase stiffness, remove caliper to change pads

Specifications

• Disc diameter range Ø343 – 380mm
• Disc thickness range 30 – 32mm
• Fluid inlet 3/8-24 UNF (-3) male
• Dry weight 3,50kg excluding pads Alcon pad reference 4497,
• 18mm thick, 152mm long, 50.8mm deep,
• area 148cm2 per calliper
